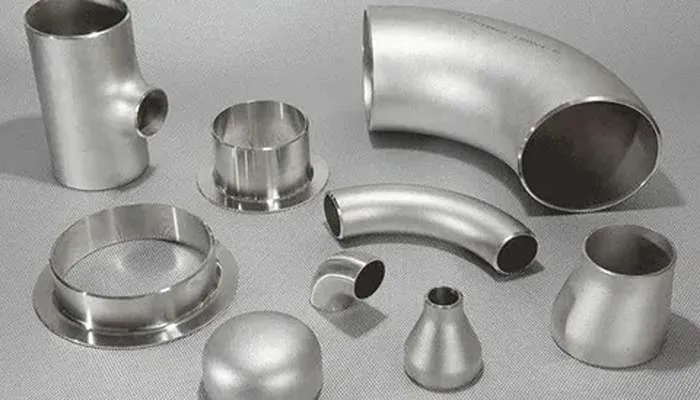

Types of Pipe Fittings – A Simple Guide for Engineers & Buyers (2025 Updated)

Elbows change the direction of flow in a pipeline. Most common angles: 45°, 90°, 180°.

• Chemical plants
• Water lines
• HVAC
• Steam systems

• Short radius (for tight spaces)
• Long radius (for smooth flow)

Tees are used to divide or combine flow.

All 3 sides are the same size.

One branch is smaller, useful for controlled flow.

• Branch lines
• Distribution pipelines
• Chemical injection points

Reducers help transition between different pipe sizes.

Cone-shaped, used where the pipe is centered.

One side flat — perfect for pumps because it prevents air pockets.

• Pump suction
• Energy systems
• Fluid control lines

Permanently joins two pipes.

Used when frequent disassembly is needed.

• Plumbing
• Firefighting
• Instrumentation
• Utility pipelines

Caps and plugs close the end of a pipe system.

• Testing
• Maintenance
• Isolation
• Dead-end lines

Bends provide smoother direction change compared to elbows.

• Lower pressure drop
• Better flow
• Less turbulence

• Refineries
• Petrochemicals
• Large radius piping

Choosing the wrong fitting can cause serious issues:

• Flow restriction
• Pressure loss
• Pump damage
• Leakage or failure
• Costly downtime

Correct fittings ensure:

• Smooth flow
• Long system life
• Safety & compliance
• Proper pressure balance

• Stainless Steel (304, 316, 321) – For water, food, pharma, chemicals
• Alloy Steel (A234 WP22, WP5) – High temperature and high pressure
• Carbon Steel (A234 WPB) – General and low-pressure applications
• Nickel Alloys (Inconel, Monel, Hastelloy) – Extreme corrosion environments

• 15+ years of experience
• Full range: elbows, tees, reducers, bends, caps, couplings, unions
• Stainless, Alloy Steel, Carbon Steel, Duplex, Super Duplex
• Testing: PMI, UT, Hydro Test, DP Test
• MTC 3.1 / 3.2 provided
• Exports to 45+ countries
• Custom fittings available

Pipe fittings may look simple, but choosing the right type is crucial for flow control, pressure management, and system reliability.

If you want help selecting the perfect fittings for your project, the Moksh Tubes technical team can guide you based on pressure, temperature, media, and design requirements.
