Aluminium 1200 | Product Overview
Introduction To Aluminium 1200

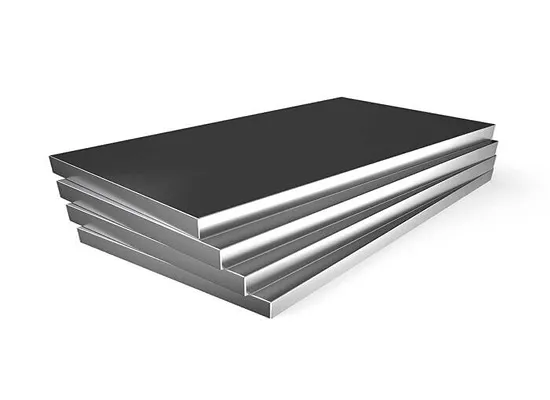

MOKSH TUBES & FITTINGS LLP is a supplier, exporter, importer, and stockist of Aluminium Alloy 1200 products including sheets, plates, coils, pipes, tubes, bars, rods, and custom fabrications.
Aluminium 1200 is a commercially pure aluminum grade with excellent corrosion resistance, high ductility, and good thermal and electrical conductivity. It offers excellent workability and formability but has relatively low strength compared to other aluminum alloys. This alloy is widely used in applications that require good corrosion resistance and high conductivity combined with moderate strength.
Download Alluminium Alloy 1200 Datasheet
Get the complete Alluminium Alloy 1200 datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Aluminium Alloy 1200 Specifications (AA1200)
| Category | Details |
|---|---|
| Grade | Aluminium 1200 / AA1200 / UNS A91200 |
| Type | Commercially Pure Aluminium |
| Chemical Composition | Al ≥ 99%, Cu ≤ 0.05%, Fe ≤ 0.30%, Si ≤ 0.10% |
| Conditions | O, H12, H14, H16, H18 |
| Processes | Hot Rolled, Cold Rolled, Annealed |
| Testing | Tensile, Hardness, Chemical |
| Certification | EN 10204 3.1 / 3.2 |
Chemical Composition – Aluminium Alloy 1200
| Element | Composition (%) |
|---|---|
| Aluminium (Al) | 99.0 min |
| Copper (Cu) | 0.05 max |
| Iron (Fe) | 0.30 max |
| Silicon (Si) | 0.10 max |
| Manganese (Mn) | 0.05 max |
| Zinc (Zn) | 0.10 max |
| Titanium (Ti) | 0.03 max |
| Others | 0.05 max each |
This composition makes Aluminium 1200 highly corrosion-resistant, ductile, and thermally/electrically conductive.
Physical Properties – Aluminium Alloy 1200
| Property | Imperial Units | Metric Units |
|---|---|---|
| Density | 0.098 lb/in³ | 2.7 g/cm³ |
| Melting Range | 1220 – 1345 °F | 660 – 730 °C |
| Modulus of Elasticity | 10 × 10³ ksi | 69 GPa |
| Thermal Conductivity | — | 220 W/m·K |
| Electrical Conductivity | 59% IACS | — |
Heat Treatment – Aluminium Alloy 1200
| Heat Treatment Process | Temperature Range | Cooling Method | Purpose / Notes |
|---|---|---|---|
| Full Annealing | 300 – 410 °C | Air cool slowly | Restores maximum ductility |
| Process Annealing | 260 – 340 °C | Air cool | Improves formability between cold work |
| Stress Relieving | 200 – 260 °C | Hold 1–2 hrs, air cool | Reduces residual stresses |
| Homogenization | 450 – 500 °C (max) | Controlled furnace / air cool | For billets/ingots before hot working |
| Solution Treatment / Aging | Not applicable | — | AA1200 is non-heat-treatable |
Mechanical Properties – Aluminium Alloy 1200
| Property | Annealed | Hot-Finished | Cold-Drawn | Hot-Rolled | Sheet (H14) |
|---|---|---|---|---|---|
| Tensile Strength (MPa) | 85 – 115 | 110 – 140 | 125 – 150 | 105 – 140 | 125 – 150 |
| Yield Strength (MPa) | 30 – 40 | 40 – 55 | 55 – 70 | 40 – 60 | 55 – 70 |
| Elongation (%) | 30 – 40 | 20 – 30 | 10 – 20 | 15 – 25 | 10 – 20 |
| Brinell Hardness | 20 – 30 HB | 25 – 35 HB | 30 – 40 HB | 25 – 35 HB | 30 – 40 HB |
| Rockwell Hardness | 15 – 25 B | 20 – 30 B | 25 – 35 B | 20 – 30 B | 25 – 35 B |
AA1200 is a non-heat-treatable alloy; strength is developed by cold working only.
Industry Standards & Equivalent Designations – Aluminium 1200
| Standard | Description |
|---|---|
| ASTM B209 | Sheets & Plates |
| ASTM B211 | Bars & Rods |
| ASTM B210 | Tubes & Pipes |
| ISO | 6361 Series |
| JIS | H4000 Series |
Products in Aluminium Alloys
Aluminium 1200 is available in various mill forms:
✔
Seamless Pipes
✔
Welded Pipes (ERW & EFW)
✔
Tubes (Capillary, U-Bend)
✔
Sheets & Plates
✔
Coils & Strips
✔
Round Bars, Flat Bars, Hex Bars, Square Bars
✔
Pipe Fittings (Elbows, Tees, Reducers, Caps, Stub Ends)
✔
Flanges (Weld Neck, Slip-On, Blind, Socket Weld, Threaded)
✔
Fasteners (Bolts, Nuts, Screws, Washers, Studs)
✔
Custom Fabricated Components
We supply Aluminium 1200 materials in accordance with the most stringent industry standards:
Uses and Advantages
Excellent corrosion resistance
High thermal and electrical conductivity
Good formability and machinability
Superior weldability
Non-heat treatable alloy with stable properties
Applications of Aluminium 1200
Aluminium 1200 is mainly used in applications requiring excellent corrosion resistance, high formability, and good conductivity, including:
Electrical Industry
Electrical conductors, cables, and bus bars.
Packaging
Foils, wrapping materials, and cans.
Architectural Applications
Decorative trim, siding, and roofing materials.
Chemical Processing
Cooking utensils and food containers.
Food & Beverage
Cooking utensils and food containers.
General Fabrication
Signage, reflectors, and ornamental applications.
WHY CHOOSE US?
Aluminium 1200 Price per kg in India
Typical Range: ₹300 – ₹450 per kg
(Price varies by OD, wall thickness, form, and finish)
Contact us for exact quotation based on size and quantity.
FAQ's
What is Aluminium Alloy 1200 and what are its main characteristics?
Aluminium Alloy 1200 is a commercially pure aluminum grade with a minimum of 99% aluminum. It is widely known for its excellent corrosion resistance, high ductility, and good thermal and electrical conductivity. It offers great workability and weldability, making it ideal for industries that require moderate strength with superior formability.
Is Aluminium 1200 heat-treatable?
No, Aluminium Alloy 1200 is a non heat treatable alloy. Its mechanical strength can be improved through cold working processes such as rolling, drawing, and forming. This ensures it retains stable properties across different applications.
What are the typical applications of Aluminium 1200?
Aluminium 1200 is used in a wide range of industries such as:
- Electrical: conductors, bus bars, and cables.
- Packaging: foils, wrapping, and cans.
- Architectural: siding, roofing, and decorative trim.
- Food & Beverage: cooking utensils and food containers.
- General Fabrication: signage, reflectors, and ornamental components.
What are the advantages of Aluminium 1200 over other alloys?
Key benefits of Aluminium Alloy 1200 include:
- Excellent resistance to corrosion.
- Superior electrical & thermal conductivity.
- Good machinability and weldability.
- High ductility and formability.
- Cost effectiveness for mass applications.
What Aluminium 1200 products does Moksh Tubes & Fittings LLP supply?
Moksh Tubes & Fittings LLP offers a wide variety of Aluminium 1200 products including:
- Sheets, Plates, Coils & Strips.
- Pipes & Tubes (Seamless, Welded, Heat Exchanger, U-Bend).
- Bars & Rods (Round, Hex, Flat, Square).
- Pipe Fittings, Flanges, and Fasteners.
- Custom Fabricated Components tailored to customer requirements.
