Introduction

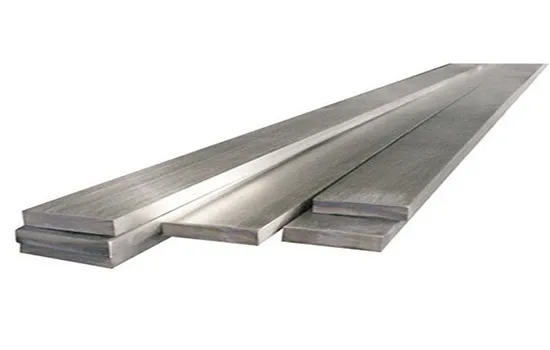

METAL STRIPS
Metal Strips are narrow-width flat metal products manufactured by slitting coils or sheets into precise widths and thicknesses. These strips are widely used in engineering, fabrication, electrical, automotive, and construction industries.
Due to their dimensional accuracy, flexibility, and material versatility, metal strips are essential for applications requiring precision and consistency. They are available in various finishes and can be further processed into components like clamps, springs, washers, trims, and connectors.
At Moksh Tubes & Fittings LLP, we supply premium-quality metal strips in multiple materials and grades, conforming to ASTM, ASME, DIN, JIS, and EN standards. Our strips are suitable for both heavy-duty industrial use and fine decorative applications.
Download Strips Datasheet
Get the complete Strips datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Specifications of Metal Strips
| Category | Details |
|---|---|
| Material | Stainless Steel, Carbon Steel, Mild Steel, Aluminium, Copper, Brass, Nickel Alloys, Titanium |
| Grades | ASTM / ASME / DIN / JIS / EN compliant |
| Thickness | 0.10 mm to 6 mm |
| Width | 5 mm to 500 mm (custom slit widths available) |
| Length | Coil form or cut-to-length |
| Finishes | 2B, BA, Matte, Hairline, Mirror, PVC Coated |
| Types | Hot Rolled, Cold Rolled, Precision, Decorative |
| Standards | ASTM A240, A480, A666, EN 10088 |
Size & Weight Charts
Thickness Range Chart
| Material | Thickness (mm) | Thickness (inch) |
|---|---|---|
| Stainless Steel | 0.10 – 6.00 | 0.004 – 0.236 |
| Aluminium | 0.15 – 4.00 | 0.006 – 0.157 |
| Copper / Brass | 0.10 – 3.00 | 0.004 – 0.118 |
| Carbon Steel | 0.20 – 6.00 | 0.008 – 0.236 |
Width Range Chart
| Type | Width (mm) |
|---|---|
| Narrow Strips | 10 – 100 |
| Medium Strips | 100 – 600 |
| Wide Strips | 600 – 1250 |
| Custom | As required |
Thickness Tolerance Chart
| Thickness (mm) | Tolerance |
|---|---|
| 0.10 – 0.30 | ±0.010 |
| 0.30 – 0.60 | ±0.015 |
| 0.60 – 1.00 | ±0.020 |
| 1.00 – 2.00 | ±0.030 |
| 2.00 – 6.00 | ±0.050 |
Strip Weight Chart (Sample – per meter)
| Thickness | SS (kg/m) | MS (kg/m) | Aluminium | Copper |
|---|---|---|---|---|
| 1.0 mm | 0.079 | 0.079 | 0.027 | 0.089 |
| 2.0 mm | 0.159 | 0.157 | 0.054 | 0.179 |
| 3.0 mm | 0.238 | 0.236 | 0.081 | 0.268 |
| 5.0 mm | 0.397 | 0.393 | 0.135 | 0.447 |
(Detailed charts available for multiple widths and materials)
Grades Available
Stainless Steel Strips
304 / 304L
316 / 316L
310 / 321 / 347
Carbon & Mild Steel
ASTM A36, IS 2062
Duplex & Super Duplex
2205, S32750
Aluminium Strips
1100, 5052, 6061, 6063
Copper & Brass
C11000, C26000
Nickel & Titanium
Inconel, Monel, Hastelloy, Titanium
NICKEL ALLOYS
STAINLESS STEEL
DUPLEX & SUPER
TITANIUM ALLOYS
Haynes Superalloys
Inconel
Applications of Metal Strips
Construction & Architecture
✔ Cladding, trims, flashings
✔ Decorative panels & interiors
Automotive Industry
✔ Exhaust systems & clamps
✔ Fuel lines & brackets
Industrial & Engineering
✔ Machine components
✔ Springs, washers, shims
Electrical & Electronics
✔ Bus bars & connectors
✔ Transformer windings
Marine & Offshore
✔ Corrosion-resistant components
✔ Lightweight structures
Decorative & Consumer Goods
✔ Furniture trims
✔ Interior design elements
Packaging & Logistics
✔ Steel strapping
✔ Binding & securing materials
Mechanical Properties (Typical)
| Material | Tensile Strength (MPa) |
|---|---|
| Stainless Steel | 515 |
| Carbon Steel | 400–550 |
| Aluminium | 150–300 |
| Copper | 200–400 |
Why Choose Moksh Tubes & Fittings LLP?
Frequently Asked Questions (FAQ)
Q1. What are metal strips?
Narrow flat metal products used in various industries.
Q2. What materials are available?
SS, MS, aluminium, copper, brass, titanium, and more.
Q3. What sizes are available?
Thickness 0.1–6 mm, width 5–500 mm.
Q4. What are common uses?
Electrical, automotive, construction, fabrication.
Q5. Difference between strips and sheets?
Strips are narrower and slit from coils.
REQUEST A QUOTE
Looking for high-quality metal strips?
📞 Contact Moksh Tubes & Fittings LLP at +91 97695 84950
We supply precision-engineered metal strips for industrial and commercial applications.
