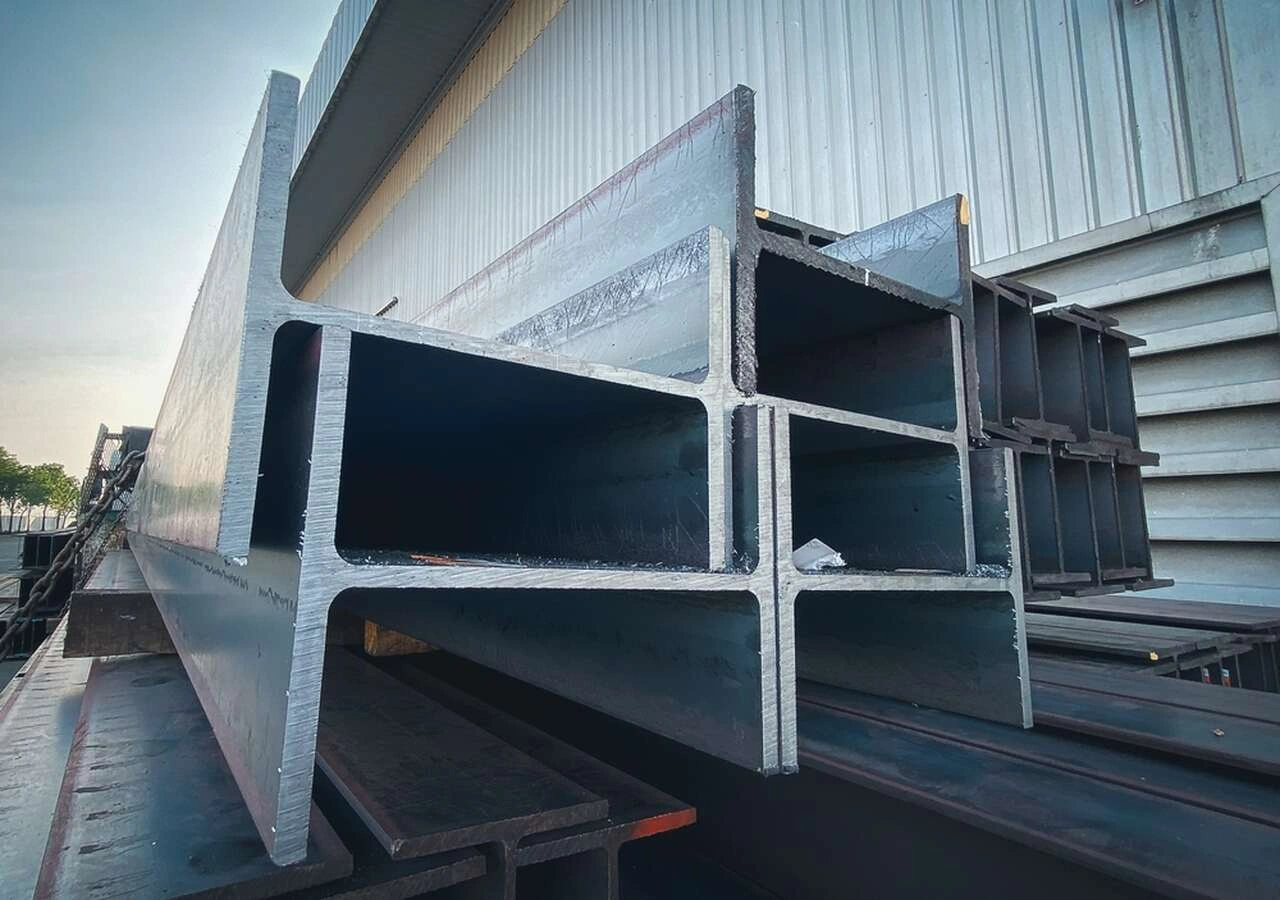

American Structural Beams

American Structural Beams are structural steel members primarily used for load-bearing, framing and support applications in buildings, industrial facilities, infrastructure and engineered steel structures.

Their engineered cross-sectional geometry provides the required strength, stiffness and structural efficiency for transferring loads across structural frameworks. The appropriate beam section is selected according to the required span, loading conditions, section properties, connections and engineering design.

American Structural Beams commonly include W-shapes (Wide Flange Beams), S-shapes and other structural sections specified according to applicable AISC section standards and ASTM material specifications.

W-shape beams are widely used in modern steel construction because their wide flanges provide useful structural properties for beams and columns. Other sections may be selected according to the requirements of a particular structural design.

At Moksh Tubes & Fittings LLP, we support American Structural Beam requirements based on customer drawings, technical specifications and project requirements. Customers can specify the required beam designation, section size, material grade, length, quantity and applicable ASTM / AISC specification.

American Structural Beams can also be used together with American Structural Angles, Channels, Columns and Hollow Structural Sections (HSS) to create complete steel frameworks and fabricated structural assemblies.

For an accurate quotation, customers can provide their required beam section, designation, dimensions, material grade, length, quantity and applicable ASTM / AISC requirements, along with project drawings or technical documentation where required.

Specifications

American Structural Beams are available in different beam designations, section depths, flange widths, web thicknesses, flange thicknesses, lengths and structural steel grades according to applicable ASTM material specifications, AISC requirements and project specifications.

Category	Details
Product	American Structural Beams
Profile	W-Shapes / I-Shapes / Structural Beam Sections
Material	Carbon Steel / Structural Steel
Types	W-Shapes, S-Shapes & Other Applicable Structural Sections
Standards	Applicable ASTM Standards / AISC Requirements
Grades	As per applicable ASTM material specification
Section Depth	Various standard sizes
Flange Width	As per selected beam section
Web Thickness	As per selected section
Flange Thickness	As per selected section
Length	Standard Lengths / Cut-to-Length
Surface	Mill Finish / As Specified
Supply Form	Individual Sections / Bundles
Customization	Section, size, grade, length and quantity as required
Applications	Construction, Infrastructure, Industrial, Fabrication & Engineering

W-Shapes / Wide Flange Beams

W-Shapes, commonly known as Wide Flange Beams, have relatively wide flanges and are widely used as structural members in building construction, industrial structures and infrastructure projects.

S-Shapes

S-Shapes are another American structural beam profile that can be specified where the applicable design and project requirements call for this section.

ASTM Specifications

The applicable ASTM material specification depends on the required steel grade and project requirements. Chemical composition, mechanical properties and other material requirements should be confirmed against the applicable ASTM specification.

AISC Requirements

AISC requirements may be used for structural design, section properties and selection of American structural beam sections. The applicable project drawings and engineering specifications should determine the required AISC requirements.

Beam Dimensions

American Structural Beams are generally identified by their beam designation and section dimensions, including:

Overall Section Depth
Flange Width
Web Thickness
Flange Thickness
Section Weight
Beam Length

Length Availability

Structural beams can be considered in standard lengths or cut-to-length requirements, depending on product availability and customer specifications.

Supply Requirements

For an accurate quotation, customers should provide the required beam type / designation, section size, dimensions, material grade, length, quantity and applicable ASTM / AISC specification.

Project drawings or technical specifications can also be shared where specific structural requirements need to be considered.

Moksh Tubes & Fittings LLP can support standard and project-based requirements for American Structural Beams, subject to product availability and agreed specifications.

Size & Weight Chart

W Shapes – American I Beam & Wide Flange

Section	Depth d (in)	Flange Width bf (in)	Web Thickness tw (in)	Flange Thickness tf (in)	Weight (lb/ft)
W4×13	4.16	4.060	0.280	0.345	13
W5×16	5.01	5.000	0.240	0.360	16
W5×19	5.15	5.030	0.270	0.430	19
W6×9	5.90	3.940	0.170	0.215	9
W6×12	6.03	4.000	0.230	0.280	12
W6×15	5.99	5.990	0.230	0.260	15
W6×20	6.20	6.020	0.260	0.365	20
W6×25	6.38	6.080	0.320	0.455	25
W8×10	7.89	3.940	0.170	0.205	10
W8×13	7.99	4.000	0.230	0.255	13
W8×15	8.11	4.015	0.245	0.315	15
W8×18	8.14	5.250	0.230	0.330	18
W8×21	8.28	5.270	0.250	0.400	21
W8×24	7.93	6.495	0.245	0.400	24
W8×28	8.06	6.535	0.285	0.465	28
W8×31	8.00	8.000	0.285	0.435	31
W8×40	8.25	8.070	0.360	0.560	40
W10×12	9.87	3.960	0.190	0.200	12
W10×15	9.99	4.000	0.230	0.270	15
W10×22	10.17	5.750	0.240	0.360	22
W10×30	10.47	5.810	0.300	0.510	30
W10×33	9.73	7.960	0.290	0.395	33
W10×45	10.10	8.020	0.350	0.620	45
W12×14	11.91	3.970	0.170	0.200	14
W12×16	11.99	3.990	0.190	0.225	16
W12×19	12.16	4.005	0.230	0.260	19
W12×22	12.31	4.030	0.260	0.315	22
W12×26	12.22	6.490	0.230	0.380	26
W12×30	12.34	6.520	0.260	0.440	30
W12×35	12.50	6.560	0.300	0.520	35
W12×40	11.94	8.005	0.295	0.515	40
W12×45	12.12	8.050	0.345	0.575	45
W12×50	12.19	8.080	0.370	0.640	50
W12×53	12.06	10.000	0.345	0.580	53
W12×58	12.22	10.010	0.355	0.640	58
W12×65	12.12	12.000	0.375	0.605	65
W14×22	13.74	5.000	0.230	0.335	22
W14×30	13.84	6.730	0.270	0.430	30
W14×38	14.02	6.770	0.310	0.515	38
W14×43	13.66	7.700	0.305	0.450	43
W14×48	13.79	8.030	0.340	0.510	48
W14×53	13.92	8.060	0.370	0.550	53
W14×61	13.89	9.995	0.375	0.645	61
W14×68	14.04	10.035	0.415	0.720	68
W14×74	14.17	10.070	0.440	0.785	74
W14×82	14.31	10.130	0.510	0.835	82
W16×26	15.69	5.525	0.250	0.345	26
W16×31	15.88	5.525	0.275	0.430	31
W16×36	15.86	6.985	0.275	0.430	36
W16×40	16.01	6.995	0.305	0.505	40
W16×45	16.13	7.035	0.345	0.565	45
W16×50	16.26	7.070	0.380	0.585	50
W18×35	17.70	6.000	0.300	0.495	35
W18×40	17.90	6.015	0.315	0.525	40
W18×46	18.06	6.060	0.345	0.605	46
W18×50	18.20	7.500	0.355	0.570	50
W18×55	18.11	7.530	0.390	0.600	55
W18×60	18.24	7.555	0.415	0.630	60
W18×65	18.35	7.590	0.450	0.680	65
W18×71	18.47	7.635	0.495	0.730	71
W21×44	20.66	6.500	0.350	0.450	44
W21×50	20.83	6.530	0.380	0.535	50
W21×57	21.06	6.555	0.405	0.650	57
W21×62	20.99	8.240	0.400	0.615	62
W21×68	21.13	8.240	0.405	0.650	68
W21×73	21.23	8.270	0.430	0.685	73
W21×83	21.43	8.300	0.515	0.740	83
W21×93	21.62	8.360	0.580	0.800	93
W24×55	23.57	7.005	0.395	0.505	55
W24×62	23.74	7.040	0.430	0.590	62
W24×68	23.73	8.960	0.415	0.585	68
W24×76	23.91	8.990	0.440	0.680	76
W24×84	24.10	9.020	0.470	0.770	84
W24×103	24.50	9.060	0.550	0.980	103
W27×84	26.71	9.960	0.490	0.640	84
W27×94	26.92	9.990	0.525	0.715	94
W27×102	27.29	10.010	0.515	0.750	102
W27×114	27.57	10.070	0.570	0.830	114
W27×129	27.97	10.070	0.610	0.930	129
W30×90	29.65	10.410	0.500	0.620	90
W30×99	29.65	10.458	0.520	0.670	99
W30×108	29.88	10.510	0.565	0.710	108
W30×116	30.05	10.520	0.565	0.830	116
W33×118	32.91	11.480	0.510	0.710	118
W33×130	33.10	11.510	0.550	0.815	130
W36×135	35.85	11.995	0.600	0.825	135
W36×150	36.74	12.000	0.650	0.890	150

S Shapes – American I Beams

Section	Depth d (in)	Flange Width bf (in)	Web Thickness tw (in)	Weight (lb/ft)
S3×5.7	3.00	2.330	0.170	5.7
S4×7.7	4.00	2.663	0.190	7.7
S5×10	5.00	3.284	0.214	10.0
S6×12.5	6.00	3.332	0.230	12.5
S8×18.4	7.99	3.941	0.271	18.4
S10×25.4	10.00	4.944	0.311	25.4
S12×31.8	12.00	5.476	0.377	31.8
S15×42.9	15.00	5.640	0.411	42.9
S18×54.7	18.00	6.000	0.450	54.7
S20×66	20.00	6.250	0.500	66.0
S24×80	24.00	7.000	0.550	80.0

Grades Available

American Structural Beams can be supplied in different structural steel grades according to applicable ASTM material specifications, AISC requirements and project specifications. The selected grade depends on the required mechanical properties, structural loading, beam section, fabrication requirements and engineering design.

At Moksh Tubes & Fittings LLP, American Structural Beams can be sourced according to the customer's specified beam designation, grade, dimensions, length, quantity and applicable ASTM / AISC requirements, subject to product availability.

Common ASTM Structural Steel Grades

Grade / Specification	Material Type	Typical Requirement
ASTM A36	Carbon Structural Steel	General structural and fabrication applications
ASTM A572 Grade 50	High-Strength Low-Alloy Structural Steel	Structural applications requiring higher strength
ASTM A992	Structural Steel	Commonly specified for structural building members
Other ASTM Grades	Structural Steel	As per project specification and requirement

ASTM A36

ASTM A36 is a widely specified carbon structural steel grade used for general construction, fabrication and engineering applications. It can be considered for structural beam requirements where the specified material properties meet the project requirements.

ASTM A572 Grade 50

ASTM A572 Grade 50 is a high-strength low-alloy structural steel specification that can be considered for applications requiring higher specified strength than general-purpose structural steel grades.

ASTM A992

ASTM A992 is a structural steel specification commonly associated with structural shapes used in building construction. Its suitability for a particular beam application should be confirmed against the applicable product and project specification.

Grade Selection

The appropriate grade for an American Structural Beam should be selected based on:

Required mechanical properties
Structural loading
Beam span
Section dimensions
Structural design

Fabrication requirements
Welding requirements
Applicable ASTM specification
AISC requirements
Project specification

Customers should specify the required ASTM grade, beam designation, section dimensions, length and quantity when submitting an enquiry.

Material Documentation

Where required and agreed at the time of order, applicable material test certificates and supporting documentation can be provided according to the purchase order and project requirements.

Note: Exact grade availability should be confirmed with Moksh Tubes & Fittings LLP before ordering, as availability may vary according to beam section, size, specification and project requirements.

Applications

American Structural Beams are widely used in construction, industrial structures, infrastructure, bridges, warehouses and engineering projects where strong load-bearing and structural framing members are required.

Building & Construction

Steel building frameworks, structural frames, roof-support systems, floor-supporting structures, load-bearing members, and commercial and industrial buildings.

Industrial Structures

Factory buildings, industrial sheds, manufacturing facilities, equipment support structures, heavy-duty platforms, and steel frameworks.

Warehouses & Storage Facilities

Main structural frames, roof structures, supporting members, industrial storage buildings, and steel building frameworks.

Infrastructure Projects

Bridge-related structures, infrastructure frameworks, elevated structures, supporting structures, and platforms and access systems.

Bridges & Structural Frameworks

Depending on the engineering design, structural beams can be used in bridge structures and supporting steel frameworks.

Heavy Steel Fabrication

Structural frames, platforms, support structures, industrial assemblies, and heavy-duty fabricated structures.

Machinery & Equipment Structures

Support frameworks for industrial machinery, equipment and heavy installations, subject to required structural design.

General Engineering Applications

Engineering and fabrication projects requiring rigid, load-bearing structural steel sections.

The appropriate beam designation, dimensions, grade and section should always be selected according to the structural design, loading conditions, span, applicable ASTM specification, AISC requirements and project specifications.

USES OF AMERICAN STRUCTURAL BEAMS

American Structural Beams are widely used as load-bearing and supporting members in construction, industrial structures, infrastructure, fabrication and engineering applications.

Used for main structural frameworks in commercial, industrial and building construction.

Suitable for roof structures and framing systems where American beam sections are specified.

Used in warehouses and industrial sheds for supporting roof and building frameworks.

Suitable for floor-supporting and load-bearing structures according to engineering design.

Used for industrial platforms, elevated structures and supporting frameworks.

Suitable for bridge-related structures and infrastructure projects where the specified beam section is required.

Used in machinery and equipment support structures in industrial facilities.

Suitable for heavy steel fabrication, including structural frames, platforms and support assemblies.

Used for general engineering and construction applications requiring rigid, load-bearing steel sections.

Can be combined with American Structural Angles, Channels, Columns and Hollow Structural Sections (HSS) to create complete steel frameworks.

Suitable for heavy-duty structural applications where the selected beam section meets the required design and section-property requirements.

The appropriate beam designation, section dimensions, grade and length should be selected according to the structural design, loading conditions, span requirements, applicable ASTM specification, AISC requirements and project specifications.

ADVANTAGES OF AMERICAN STRUCTURAL BEAMS

American Structural Beams provide a reliable and versatile solution for load-bearing, structural framing and support applications across construction, industrial, infrastructure and engineering projects.

High Load-Bearing Capability – Suitable for structural applications requiring strong load-bearing members when the appropriate section is selected according to engineering design.

Structural Strength & Rigidity – Beam profiles provide useful strength and rigidity for building and industrial structural frameworks.

Wide Application Range – Suitable for buildings, warehouses, industrial sheds, infrastructure, bridges, platforms and heavy fabrication.

W-Shapes & Other Profiles – Different American structural beam profiles can be selected according to project requirements and applicable AISC section specifications.

ASTM Grade Options – Material grades such as ASTM A36, ASTM A572 Grade 50 and ASTM A992 can be considered according to the applicable product and project specification.

AISC-Based Section Selection – Beam designations and section properties can be selected according to applicable AISC requirements and engineering design.

Efficient Structural Design – Appropriate beam sections can provide effective load distribution and structural support within a designed framework.

Fabrication Friendly – Suitable for common structural fabrication operations such as cutting, drilling, welding and assembly, subject to applicable specifications.

Different Section Sizes – Available in different depths, flange widths and thicknesses according to applicable AISC section tables and product requirements.

Suitable for Heavy Structures – Appropriate beam sections can be considered for industrial buildings, warehouses, infrastructure and other heavy structural applications.

Project-Based Supply – Beam requirements can be specified according to designation, dimensions, grade, length and quantity.

Compatible with Other American Sections – Can be used with American Structural Angles, Channels, Columns and Hollow Structural Sections (HSS) to create complete steel frameworks.

Domestic & International Applications – Suitable for projects requiring structural steel beams specified to ASTM / AISC requirements.

The appropriate beam designation and section should always be selected according to the structural design, loading conditions, span, section properties, applicable ASTM specification, AISC requirements and project specifications.

Mechanical Properties

Typical minimum values for commonly used ASTM structural steel grades.

Standard / Grade	ASTM A36	ASTM A572 Grade 50	ASTM A992/A992M
Tensile Strength (MPa), Min.	400	450	450
Yield Strength (MPa), Min.	250	345	345
Elongation (%), Min.	20	21	21

AISC identifies ASTM A36 as a common specification for channels, while 50-ksi grades such as A572 Grade 50 and A992 can also be used where available and specified appropriately.

Why Choose Moksh Tubes & Fittings LLP?

Moksh Tubes & Fittings LLP supports customers looking for American Structural Beams for construction, industrial, infrastructure, fabrication and engineering requirements. Our supply approach is based on the customer's required beam designation, section dimensions, grade, length, quantity and applicable ASTM / AISC specifications.

FAQ – American Structural Beams

What are American Structural Beams?

American Structural Beams are structural steel sections primarily used for load-bearing, framing and supporting applications in buildings, industrial structures, warehouses, infrastructure and engineering projects.

What types of American Structural Beams are available?

Common American structural beam profiles include W-Shapes (Wide Flange Beams), S-Shapes and other applicable structural sections, depending on the project specification and AISC requirements.

What are W-Shapes or Wide Flange Beams?

W-Shapes, commonly called Wide Flange Beams, have wide flanges and are widely used as structural members in building construction, industrial structures and infrastructure projects.

What are American Structural Beams used for?

They are commonly used in building frameworks, industrial sheds, warehouses, roof structures, bridges, platforms, infrastructure projects and heavy fabrication.

Which standards apply to American Structural Beams?

American Structural Beams can be specified according to applicable ASTM material standards and AISC requirements, depending on the project and engineering specification.

Which ASTM grades are available?

Grades such as ASTM A36, ASTM A572 Grade 50 and ASTM A992 may be considered according to the applicable product specification and project requirements. Exact availability should be confirmed at the time of enquiry.

What sizes of American Structural Beams are available?

Structural Beams are available in different beam designations, section depths, flange widths and thicknesses. Actual section availability depends on the applicable AISC section tables and Moksh Tubes & Fittings LLP's current product range.

Can American Structural Beams be supplied in custom lengths?

Yes. Standard and cut-to-length requirements can be considered depending on product availability and customer specifications.

How do I select the right American Structural Beam?

Selection should consider the beam designation, span, loading conditions, section properties, dimensions, material grade, connection requirements and applicable ASTM / AISC specifications.

Can Moksh Tubes & Fittings LLP supply American Structural Beams in bulk?

Yes. Moksh Tubes & Fittings LLP can support bulk and project-based requirements, subject to product availability and agreed specifications.

What information is required for a quotation?

Customers should provide the beam designation, section size, dimensions, ASTM grade, required length, quantity and applicable AISC requirements. Project drawings or technical specifications can also be shared.

Can American Structural Beams be used with other American structural sections?

Yes. They can be used with American Structural Angles, Channels, Columns and Hollow Structural Sections (HSS) to create complete steel frameworks and fabricated assemblies.

Does Moksh Tubes & Fittings LLP support international enquiries?

Yes. International enquiries for American Structural Beams can be discussed based on the required ASTM specification, beam section, dimensions, quantity and delivery requirements.

Request a Quote

Looking for American Structural Beams for your construction, industrial, infrastructure or fabrication project?

Contact Moksh Tubes & Fittings LLP for American Structural Beam requirements based on your required beam designation, section dimensions, ASTM grade, length and quantity.
Share your project specifications, drawings or material requirements with our team to discuss the suitable American Structural Beams for your application.

Contact Us Now

📞 Contact Moksh Tubes & Fittings LLP at +91 97695 84950 for product availability, technical specifications and quotation enquiries.

American Structural Beams – ASTM / AISC I Beams & W Shapes
