Product Overview

Introduction To Incoloy 925 / Alloy 925 / UNS N09925

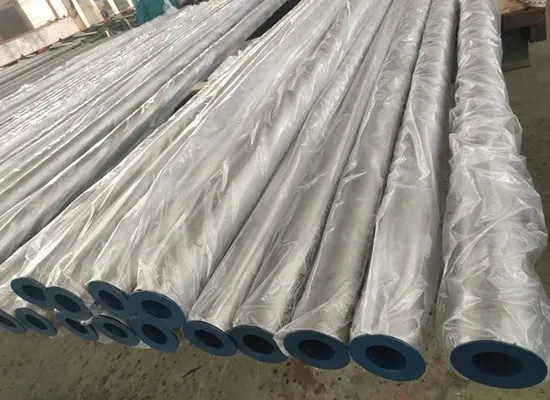

incoloy-925

MOKSH TUBES & FITTINGS LLP is a trusted global manufacturer, supplier, exporter, importer, and stockist of high quality INCOLOY 925 (UNS N09925) products. We offer a complete portfolio including Pipes & Tubes, Pipe Fittings, Flanges, Fasteners, Sheets & Plates, Coils, Wires, Round Bars, Flat Bars, Welding Rods, Wire Mesh, and nickel other Custom Fabricated Components crafted from this versatile alloy.

INCOLOY 925 is a precipitation-hardenable nickel iron chromium alloy engineered for superior strength and resistance in extreme environments. Enriched with molybdenum, copper, titanium, and aluminum, it delivers excellent protection against stress corrosion cracking, pitting, and crevice corrosion—especially in harsh sour gas (H2S) conditions. This alloy combines toughness with excellent mechanical properties, making it ideal for use in offshore oil platforms, deep wells, chemical processing systems, and marine applications.

Download Incoloy 925 Datasheet

Get the complete Incoloy 925 datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.

We respect your privacy. Your email will only be used to send the datasheet.

INCOLOY® 925 Specifications (UNS N09925)

Category Details
Grade INCOLOY® 925 / UNS N09925
Type Nickel-Iron-Cobalt Corrosion-Resistant Alloy
Typical Chemical Composition Ni 42%, Fe 21%, Co 17%, Cr 9%, Mo 2.5%, Cu 1%, Ti 0.5%, C ≤ 0.05%, Mn ≤ 1%, Si ≤ 1%
Conditions Annealed, Cold Drawn, Solution Treated
Heat Treatment Annealing, Stress Relieving
Testing Tensile, Hardness, Chemical, Corrosion, NDT on request
Certification EN 10204 3.1 / 3.2

Chemical Composition of INCOLOY® 925

Element Composition (%)
Nickel (Ni) 42.0 – 46.0
Chromium (Cr) 19.5 – 23.5
Iron (Fe) Balance
Molybdenum (Mo) 2.5 – 3.5
Copper (Cu) 1.5 – 3.0
Titanium (Ti) 1.9 – 2.4
Aluminum (Al) 0.1 – 0.5
Manganese (Mn) 1.0 max
Silicon (Si) 0.5 max
Carbon (C) 0.03 max
Sulfur (S) 0.01 max

Technical Composition of INCOLOY® 925

Physical Properties of INCOLOY® 925

Property Imperial Units Metric Units
Density 0.292 lb/in³ 8.08 g/cm³
Melting Range 2392–2490 °F 1311–1366 °C
Electrical Resistivity 701 ohm·cir mil/ft 1.17 µΩ·m
Magnetic Permeability 1.001

Heat Treatment of INCOLOY® 925 (UNS N09925)

Heat Treatment Process Temperature Range Cooling / Procedure
Annealing 1050–1150°C Furnace cool slowly
Solution Treatment 1050–1100°C Water quench
Stress Relieving 650–750°C Hold 1–2 hours, air cool
Cold Working / Hardening 600–700°C Air cool

Mechanical Properties of INCOLOY® 925

Property Typical Values
Tensile Strength 685 – 1189 MPa
Yield Strength (0.2%) 271 – 832 MPa
Elongation 18 – 56%
Reduction of Area 25 – 76%
Impact Strength 35 ft·lbf (4.85 kgf·m)
Hardness Rockwell B to C (26–38 HRC)

International Standards & Equivalent Grades

Standard Equivalent Grade
UNS N09925
DIN (W.Nr) 2.4856
ASTM B443, B444, B446
EN NiFeCoCrMo Alloy
BS NA 25
JIS SUS 925
GOST ХН60ВМФ

Products in Incoloy 925

INCOLOY 925 , is designated as UNS N09925. Designations and specifications for the product include NACE MR-01-75, ASME Boiler and Pressure Vessel Code Case 2218 Section VIII Division 1, and Special Metals Corporation internal specification HA 46. Alloy 925 is available as tube, round bar, flat bar and forging stock.

Seamless Pipes
Welded Pipes (ERW & EFW)
Tubes (Capillary, U-Bend)
Sheets & Plates
Coils & Strips
Round Bars, Flat Bars, Hex Bars, Square Bars
Pipe Fittings (Elbows, Tees, Reducers, Caps, Stub Ends)
Flanges (Weld Neck, Slip-On, Blind, Socket Weld, Threaded)
Fasteners (Bolts, Nuts, Screws, Washers, Studs)
Custom Fabricated Components

This alloy meets several recognized industry standards, including:

Uses and Advantages

Superior resistance to chloride-induced stress corrosion cracking
Excellent pitting and crevice corrosion resistance in sour environments
High strength and durability under extreme pressure and temperature
Good weldability and formability for complex fabrications
Long service life with reduced maintenance in aggressive service conditions

Applications of INCOLOY 925

INCOLOY 925 is widely utilized in severe service environments where corrosion, pressure, and temperature are constant challenges. Key applications include:

Chemical Processing Industry

Used in heat exchangers, evaporators, tanks, and piping systems handling acidic and chloride-rich fluids.

Oil & Gas Industry

Downhole tubing, wellhead components, hangers, valves, and other sour gas service equipment

Marine Engineering

Seawater handling, pump shafts, fasteners, and heat exchanger tubing

Chemical Processing

Components exposed to strong acids and chloride-rich environments

Power Generation

Turbine components and piping exposed to aggressive cooling water and condensate

Aerospace & Defense

Applications requiring high strength, corrosion resistance, and dimensional stability

Desalination Plants

Tubes and components in saltwater processing and filtration systems

INCOLOY 925’s versatility, strength, and exceptional corrosion resistance make it an ideal choice for mission-critical operations.

WHY CHOOSE US?

Specialists in precision-manufactured INCOLOY 925 products
Proven track record with global oil & gas and chemical clients
Sourcing of premium-grade raw materials from certified mills
Fast turnaround and custom fabrication support
Commitment to stringent quality assurance and client satisfaction

INCOLOY® 925 Price per kg in India

Typical Range: ₹1,200 – ₹2,000 per kg

(Price varies by OD, wall thickness, form, and finish)

Contact us for exact quotation based on size and quantity.

FAQ's

What is Incoloy 925 and why is it used in critical industries?

Incoloy 925 (UNS N09925) is a precipitation-hardenable nickel iron chromium alloy enhanced with molybdenum, copper, titanium, and aluminum. It is designed to deliver exceptional resistance to stress corrosion cracking, pitting, and crevice corrosion, particularly in sour gas (H2S) environments. With a balance of high strength and corrosion resistance, Incoloy 925 is a preferred material for demanding industries such as oil and gas, chemical processing, power generation, and marine engineering.

What are the main properties of Incoloy 925?

Incoloy 925 offers a unique combination of mechanical strength and corrosion resistance, performing reliably under extreme pressures and high temperatures. It provides outstanding resistance to chloride-induced stress corrosion cracking and maintains durability in aggressive sour gas and seawater environments. Along with its superior toughness, the alloy offers good weldability, formability, and long service life, making it ideal for harsh industrial applications.

What are the common applications of Incoloy 925?

Incoloy 925 is widely used in industries that demand both strength and corrosion resistance. In the oil and gas sector, it is utilized for downhole tubing, hangers, valves, and other sour service equipment. In chemical processing, it is found in heat exchangers, tanks, and piping systems exposed to acidic and chloride rich fluids. It is also deployed in marine engineering for seawater handling equipment, in desalination plants for saltwater filtration systems, and in power generation for turbine and piping components.

What product forms are available in Incoloy 925?

MOKSH TUBES & FITTINGS LLP manufactures and supplies Incoloy 925 in a comprehensive range of forms, including seamless and welded pipes, tubes, sheets, plates, coils, bars, welding rods, wire mesh, flanges, fasteners, pipe fittings, and custom-fabricated components. All products are crafted to meet international standards such as NACE MR-01-75 and ASME specifications, ensuring quality and reliability in mission critical operations.

Why choose MOKSH TUBES & FITTINGS LLP for Incoloy 925 products?

MOKSH TUBES & FITTINGS LLP is a trusted global supplier of Incoloy 925 materials, with expertise in manufacturing precision engineered products for industries such as oil and gas, chemical processing, and marine applications. By sourcing premium grade raw materials, offering fast turnaround times, and providing custom fabrication support, the company ensures superior product performance and customer satisfaction. Their strong quality assurance and global track record make them a reliable partner for Incoloy 925 solutions.
