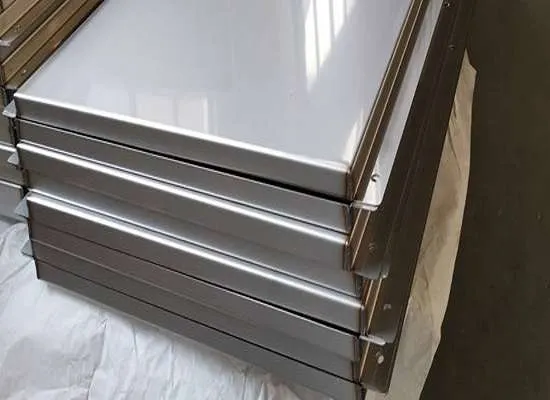

Introduction to Stainless Steel 420 / AISI 420 / UNS S42000
MOKSH TUBES & FITTINGS LLP is a trusted supplier, exporter, importer, and stockist of premium-grade Stainless Steel 420 products, including pipes & tubes, sheets & plates, coils, bars, pipe fittings, flanges, fasteners, wire mesh, and a variety of custom-engineered components.
Stainless Steel 420 is a high-carbon martensitic stainless steel that offers excellent hardenability, good strength, and moderate corrosion resistance. It contains 12–14% chromium, which forms a passive oxide film for protection in mildly corrosive environments.
Unlike austenitic stainless steels, SS 420 can be heat treated to achieve high hardness levels (up to ~50 HRC), making it suitable for cutting tools, surgical instruments, and wear-resistant parts. It is magnetic in all conditions and provides a good balance of strength, edge retention, and machinability.
Download High Strength Stainless Steel 420 Datasheet
Get the complete High Strength Stainless Steel 420 datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Material Summary – SS 420 / UNS S42000
| Property | Details |
|---|---|
| Material Type | Martensitic Stainless Steel |
| UNS Designation | S42000 |
| AISI / Equivalent | 420 |
| Chromium Content | 12.0 – 14.0 % |
| Carbon Level | Medium–High |
| Heat Treatable | ✔ Yes |
| Maximum Hardness | ~50 HRC |
| Corrosion Resistance | Moderate |
| Magnetic Property | Magnetic |
| Typical Density | ~7.75 g/cm³ |
👉 Higher carbon content compared to SS 410 allows SS 420 to be hardened for excellent wear resistance and cutting performance.
Chemical Composition of Stainless Steel 420
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.15 – 0.40 |
| Manganese (Mn) | 1.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.040 max |
| Sulfur (S) | 0.030 max |
| Chromium (Cr) | 12.0 – 14.0 |
| Nickel (Ni) | 0.75 max |
| Iron (Fe) | Balance |
Technical Composition of Stainless Steel 420
Physical Properties of Stainless Steel 420
| Property | Value |
|---|---|
| Density | 7.75 g/cm³ |
| Melting Point | 1450 – 1510 °C |
| Modulus of Elasticity | 200 GPa |
| Thermal Conductivity | 24.9 W/m·K (100 °C) |
| Electrical Resistivity | 0.55 µΩ·m |
| Magnetic Properties | Magnetic (Martensitic) |
Heat Treatment & Hardening Cycle – SS 420
| Process | Temperature Range | Purpose |
|---|---|---|
| Annealing | 840 – 900 °C | Improves machinability |
| Hardening (Austenitizing) | 980 – 1050 °C | Forms martensitic structure |
| Quenching | Oil / Air | Achieves high hardness |
| Tempering | 150 – 400 °C | Adjusts hardness & toughness |
| Stress Relieving | 600 – 650 °C | Reduces internal stresses |
📌 SS 420 achieves best wear resistance and edge retention only after proper quench & temper treatment.
Mechanical Properties of Stainless Steel 420
| Property | Metric | Imperial |
|---|---|---|
| Tensile Strength (Annealed) | 620 MPa | 90,000 psi |
| Yield Strength (0.2%) | 345 MPa | 50,000 psi |
| Elongation | 20% | 20% |
| Hardness (Annealed) | 180 HB | 180 HB |
| Hardness (Hardened) | 45 – 50 HRC | 45 – 50 HRC |
👉 SS 420 can reach high hardness after heat treatment, making it ideal for cutting tools and wear-resistant components.
International Standards & Equivalent Grades – SS 420
| Standard | Equivalent Grade |
|---|---|
| UNS | S42000 |
| AISI | 420 |
| EN | 1.4021 / 1.4028 |
| DIN | X20Cr13 / X30Cr13 |
| ASTM | A276, A479, A580 |
| JIS | SUS 420 |
| ISO | X20Cr13 |
Products in Stainless Steel 420
MOKSH TUBES & FITTINGS LLP, with extensive experience in high-carbon martensitic stainless steel grades and a well-established global supply network, offers an extensive range of STAINLESS STEEL 420 products. These are widely used in wear-resistant, cutting, and precision engineering applications across industries including Surgical Tools, Cutlery Manufacturing, Automotive, Aerospace, Oil & Gas, Industrial Equipment, and General Engineering. SS 420 is valued for its excellent hardenability, high strength, and dependable performance under mechanical stress.
✔
Seamless Pipes & Tubes
✔
Welded Pipes (ERW & EFW)
✔
Capillary & Heat Exchanger Tubes
✔
Sheets, Plates & Strips
✔
Coils (Hot Rolled & Cold Rolled)
✔
Round Bars, Flat Bars, Hex & Square Bars
✔
Pipe Fittings (Elbows, Tees, Reducers, Caps, Stub Ends)
✔
Flanges (Weld Neck, Slip-On, Blind, Socket Weld, Threaded)
✔
Fasteners (Bolts, Nuts, Screws, Studs, Washers)
✔
Wire Mesh & Perforated Sheets
✔
Precision Machined & Custom Fabricated Components
All Stainless Steel 420 products conform to ASTM A276 / A580 / A484 / A473 and other relevant international standards.
