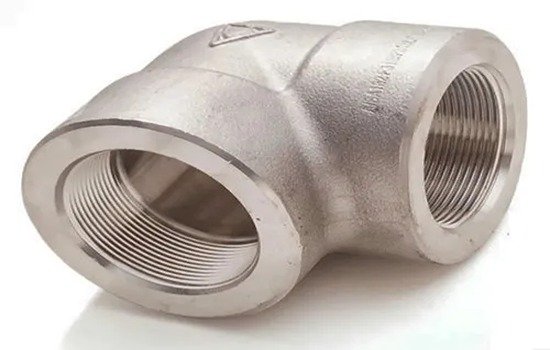

90 Degree Elbows
90 Degree Elbows (sometimes called "90 bends" or "quarter bends") are critical for navigating structural layouts, allowing pipelines to conform to building walls, equipment housing, and trench layouts. They are permanently butt-welded to the pipe to provide a robust, leak-free connection capable of withstanding extreme internal pressures.
Moksh Tubes & Fittings LLP is a leading manufacturer, supplier, and exporter of 90 Degree Buttweld Elbows in India. We supply both Long Radius (R = 1.5D) and Short Radius (R = 1.0D) elbows to Indian petrochemical complexes and major Gulf / GCC nations including UAE, Saudi Arabia, Qatar, Oman, and Kuwait.
Our elbows are manufactured from high-grade carbon steel, stainless steel, and alloy steel, featuring precisely machined bevel ends to ensure optimal weld penetration and X-ray quality joints.
Download 90 Degree Elbows Datasheet
Get the complete 90 Degree Elbows datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
SPECIFICATIONS
| Category | Details |
|---|---|
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex / Super Duplex Steel, Nickel Alloys, Titanium |
| Size Range (Seamless) | 1/2" NB to 24" NB |
| Size Range (Welded) | 24" NB to 48" NB (and above) |
| Wall Thickness (Schedule) | Sch 10, Sch 40, Sch 80, Sch 160, XXS (Custom up to 100mm thick) |
| Radius Type | Long Radius (LR) [R=1.5D], Short Radius (SR) [R=1.0D] |
| Dimensional Standards | ASME B16.9 (LR), ASME B16.28 (SR), MSS-SP-43, EN 10253 |
| End Connection | Beveled Ends for Butt-Welding (ASME B16.25) |
90 Degree Elbows Weight Chart
| Nominal Pipe Size (NPS) | Outside Diameter (OD) (mm) | Center to End (A) (mm) | Approx. Weight (Sch 40) (kg) |
|---|---|---|---|
| 1/2" | 21.3 | 38 | 0.08 |
| 3/4" | 26.7 | 29 | 0.08 |
| 1" | 33.4 | 38 | 0.15 |
| 1-1/2" | 48.3 | 57 | 0.35 |
| 2" | 60.3 | 76 | 0.66 |
| 3" | 88.9 | 114 | 2.10 |
| 4" | 114.3 | 152 | 4.00 |
| 6" | 168.3 | 229 | 10.90 |
| 8" | 219.1 | 305 | 21.80 |
| 10" | 273.0 | 381 | 37.00 |
| 12" | 323.8 | 457 | 54.00 |
*Dimensions conform to ASME B16.9. The Center to End dimension for an LR elbow is 1.5 times the Nominal Pipe Size (NPS).
Available Grades & Materials
| Material Type | ASTM Specification & Grades |
|---|---|
| Carbon Steel | ASTM A234 WPB, WPC, MSS-SP-75 WPHY 42, 46, 52, 60, 65, 70 |
| Low Temp Carbon Steel (LTCS) | ASTM A420 WPL6, WPL3 |
| Alloy Steel | ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 |
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, WP321, WP347 |
| Duplex & Super Duplex | ASTM A815 UNS S31803, S32205, S32750, S32760 |
| Nickel Alloys | Inconel 600/625, Hastelloy C276, Monel 400, Alloy 20 |
NICKEL ALLOYS
STAINLESS STEEL
DUPLEX & SUPER
TITANIUM ALLOYS
Haynes Superalloys
Inconel
Applications of 90 Degree Elbows
90 Degree Elbows are ubiquitous in any piping infrastructure:
Petrochemical & Refineries
- Primary fitting used to route process piping, crude oil lines, and flare stacks.
Oil & Gas Exploration
- Used extensively in high-pressure onshore and offshore drilling manifolds.
Power Plants
- Alloy steel (P91) elbows are used for high-temperature, high-pressure steam distribution.
Shipbuilding & Marine
- Short Radius (SR) elbows are heavily used in compact shipboard engine rooms and cargo piping.
Chemical & Pharmaceutical
- Stainless steel (316L) elbows prevent contamination and resist chemical corrosion.
Water Treatment
- Routing large diameter water mains and pump station discharge lines.
Features & Advantages
Corrosion Resistance
Excellent corrosion and oxidation resistance.
Smooth Flow
Smooth flow with minimal pressure drop.
High Strength
High mechanical strength for demanding pipelines.
Extreme Conditions
Suitable for high-temperature and high-pressure applications.
Leak-Proof
Ensures leak-proof and reliable performance.
Easy Maintenance
Easy to install and maintain.
Long Service Life
Guarantees an extended operational service life.
Global Standards
Manufactured to international quality standards.
Mechanical Properties (Stainless Steel A403 WP316)
| Grade | Tensile Strength (MPa) | Yield Strength (MPa min) | Elongation (%) | Hardness (HB max) |
|---|---|---|---|---|
| ASTM A403 WP304 | 515 | 205 | 28 | - |
| ASTM A403 WP316 | 515 | 205 | 28 | - |
*Properties must match the corresponding seamless pipe specification (e.g., A312 TP316 for A403 WP316).
Why Choose Moksh Tubes?
Frequently Asked Questions (FAQ)
How do I choose between a Long Radius (LR) and a Short Radius (SR) elbow?
Long Radius (LR) elbows are the industry standard for most applications because they offer less fluid resistance and lower pressure drop. You should only choose a Short Radius (SR) elbow when space is extremely tight and an LR elbow simply will not fit (e.g., inside machinery enclosures or ship hulls).
What is the difference between a seamless and a welded elbow?
A seamless elbow is hot-formed directly from a seamless pipe and has no weld seam, making it inherently stronger and ideal for critical high-pressure systems. Welded elbows are formed from welded pipes or steel plates; they are more cost-effective and are the only option for very large diameters (typically > 24").
What does "Schedule 40" mean for an elbow?
The Schedule refers to the wall thickness of the fitting. A Schedule 40 elbow will exactly match the inner and outer diameter of a Schedule 40 pipe, ensuring a flush joint for butt-welding. Higher schedules (like Sch 80 or 160) mean thicker walls for higher pressure ratings.
Are 90 Degree Elbows radiographed?
Yes, for welded elbows (like ASTM A234 WPBW), the longitudinal weld seam is usually 100% radiographed to ensure there are no defects before forming.
Contact Us
For further information, bulk quotes, or custom high-pressure requirements for 90 Degree Elbows, Moksh Tubes & Fittings LLP is your reliable industrial partner.
