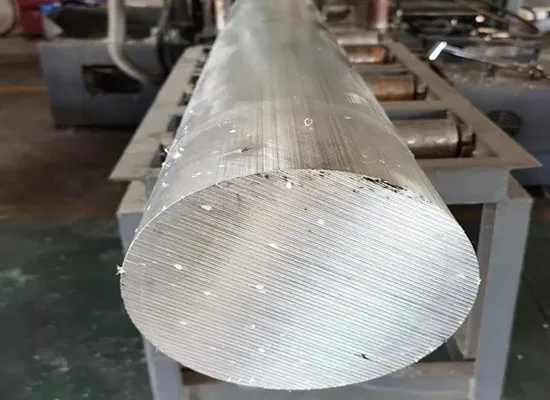

Aluminium 2014-T6 | Product Overview
Introduction To Aluminium 2014-T6
MOKSH TUBES & FITTINGS LLP is a renowned manufacturer, supplier, exporter, importer, and stockist of Aluminium Alloy 2014-T6 products such as sheets, plates, bars, rods, tubes, and custom fabricated items.
Aluminium 2014-T6 is a high-strength aerospace-grade alloy with excellent mechanical properties and good machinability. It is primarily alloyed with copper, which enhances its strength but reduces corrosion resistance compared to pure aluminum. The T6 temper denotes that the alloy has been solution heat-treated and artificially aged to achieve high tensile strength and hardness. This alloy is commonly used in structural applications where high strength and good wear resistance are required.
Download Alluminium Alloy 2014 T6 Datasheet
Get the complete Alluminium Alloy 2014 T6 datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Aluminium 2014-T6 Specifications (AA2014 / UNS A92014)
| Category | Details |
|---|---|
| Grade | AA 2014 / 2014-T6 / UNS A92014 |
| Type | Heat-treatable Aluminium Alloy |
| Typical Chemical Composition | Cu 3.9–5.0%, Si 0.5–0.9%, Mg 0.2–0.8%, Mn 0.4–0.9% |
| Conditions | O, T4, T6 |
| Heat Treatment | Solution Heat Treatment + Artificial Aging |
| Testing | Tensile, Hardness, Chemical, UT (on request) |
| Certification | EN 10204 3.1 / 3.2 (MTC Available) |
Chemical Composition – Aluminium Alloy 2014-T6
| Element | Composition (%) |
|---|---|
| Copper (Cu) | 3.9 – 5.0 |
| Silicon (Si) | 0.5 – 0.9 |
| Magnesium (Mg) | 0.2 – 0.8 |
| Manganese (Mn) | 0.4 – 0.9 |
| Iron (Fe) | 0.7 max |
| Zinc (Zn) | 0.25 max |
| Chromium (Cr) | 0.1 – 0.35 |
| Titanium (Ti) | 0.15 max |
| Aluminium (Al) | Balance |
Aluminium 2014-T6 is preferred for high-load, high-strength engineered components.
Physical Properties – Aluminium Alloy 2014-T6
| Property | Imperial | Metric |
|---|---|---|
| Density | 0.098 lb/in³ | 2.80 g/cm³ |
| Melting Range | 1070 – 1120 °F | 575 – 605 °C |
| Modulus of Elasticity | 10.4 × 10³ ksi | 72 GPa |
| Thermal Conductivity | — | 120 W/m·K |
| Electrical Conductivity | 30% IACS | — |
Heat Treatment – Aluminium Alloy 2014-T6
| Heat Treatment Process | Temperature Range | Cooling / Procedure | Notes |
|---|---|---|---|
| Solution Heat Treatment | 495 – 505 °C | Water quench | Required before aging for maximum strength |
| Artificial Aging (T6) | 160 – 190 °C | Air cool | Precipitation hardening |
| Annealing | 330 – 400 °C | Slow furnace cool | Improves ductility for forming |
| Stress Relieving | 150 – 200 °C | Air cool | Reduces residual stresses |
Mechanical Properties – Aluminium Alloy 2014-T6
| Property | Annealed | Hot-Finished | Cold-Drawn | Hot-Rolled | Sheet (T6) |
|---|---|---|---|---|---|
| Tensile Strength (MPa) | 195 – 260 | 450 – 515 | 480 – 550 | 450 – 515 | 470 – 540 |
| Yield Strength (MPa) | 70 – 100 | 380 – 450 | 415 – 485 | 380 – 450 | 415 – 485 |
| Elongation (%) | 15 – 20 | 8 – 12 | 6 – 10 | 8 – 12 | 6 – 10 |
| Brinell Hardness | 65 – 85 HB | 120 – 135 HB | 125 – 140 HB | 120 – 135 HB | 130 – 140 HB |
| Rockwell Hardness | 35 – 50 B | 80 – 85 B | 85 – 90 B | 80 – 85 B | 85 – 90 B |
International Standards & Equivalent Grades – Aluminium 2014
| Standard | Equivalent Grade |
|---|---|
| ASTM | B209, B211, B210 |
| AMS | 4037 |
| ISO | 209 |
| EN | AW-2014 |
| JIS | H4000 Series |
Products in Aluminium Alloys
Aluminium 2014-T6 is supplied in multiple mill forms including:
✔
Seamless Pipes
✔
Welded Pipes (ERW & EFW)
✔
Tubes (Capillary, U-Bend)
✔
Sheets & Plates
✔
Coils & Strips
✔
Round Bars, Flat Bars, Hex Bars, Square Bars
✔
Pipe Fittings (Elbows, Tees, Reducers, Caps, Stub Ends)
✔
Flanges (Weld Neck, Slip-On, Blind, Socket Weld, Threaded)
✔
Fasteners (Bolts, Nuts, Screws, Washers, Studs)
✔
Custom Fabricated Components
We supply Aluminium 2014-T6 materials in accordance with the most stringent industry standards:
Uses and Advantages
High tensile and yield strength
Excellent machinability and wear resistance
Good fatigue resistance and toughness
Strong but lightweight for structural applications
Suitable for heat treatment (T6 temper) to enhance properties
Applications of Aluminium 2014-T6
Aluminium 2014-T6 is widely used in aerospace, automotive, and structural applications requiring high strength and good fatigue resistance:
Aerospace & Defense
Aircraft structures, wing skins, and fuselage components.
Automotive Industry
Structural frames, chassis parts, and body panels.
Industrial Equipment
Gears, shafts, and mechanical components requiring wear resistance.
Marine Applications
Structural elements exposed to moderate corrosion.
Machinery & Tools
Precision tools, dies, and molds.
WHY CHOOSE US?
Aluminium 2014-T6 Price per kg in India
Typical Range: ₹450 – ₹650 per kg
(Price varies by OD, wall thickness, form, and finish)
Contact us for exact quotation based on size and quantity.
FAQ's
What is Aluminium Alloy 2014-T6 and what makes it unique?
Aluminium Alloy 2014-T6 is a high strength, copper alloyed aluminum grade widely used in aerospace, automotive, and structural engineering. The T6 temper means it has been solution heat-treated and artificially aged, giving it excellent tensile strength, hardness, and machinability, but with slightly reduced corrosion resistance compared to pure aluminum alloys.
Is Aluminium 2014-T6 corrosion resistant?
What are the key applications of Aluminium 2014-T6?
Due to its strength-to-weight ratio and wear resistance, Aluminium 2014-T6 is extensively used in:
- Aerospace: aircraft structures, wing skins, fuselage components.
- Automotive: chassis, body panels, and high performance parts.
- Industrial Equipment: gears, shafts, and load-bearing components.
- Marine: moderate structural applications.
- Machinery & Tools: dies, molds, and precision instruments.
What are the advantages of Aluminium Alloy 2014-T6?
Some of the main benefits of Aluminium 2014-T6 include:
- High tensile and yield strength for demanding applications.
- Excellent machinability for complex precision parts.
- Good fatigue and wear resistance for structural use.
- Lightweight yet durable alternative to steel.
- Heat treatable alloy (T6) for enhanced performance.
What Aluminium 2014-T6 products does Moksh Tubes & Fittings LLP supply?
Moksh Tubes & Fittings LLP manufactures and supplies a wide range of Aluminium 2014-T6 products, including:
