Product Overview

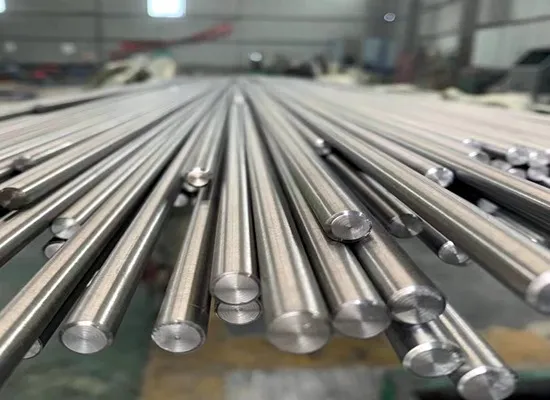

Introduction To Titanium Grade 23 / Ti-6Al-4V ELI / UNS R56401
MOKSH TUBES & FITTINGS LLP we specialize in the manufacturing, stocking, exporting, importing, and supplying of premium Titanium Grade 23 (Ti-6Al-4V ELI) products. Our offerings include Pipes & Tubes, Pipe Fittings, Flanges, Fasteners, Sheets & Plates, Coils, Wires, Round Bars, Flat Bars, Angles, Channels, Welding Rods, Wire Mesh, and other custom-engineered components that meet the strictest performance demands.
Titanium Grade 23 also known as Ti-6Al-4V ELI (Extra Low Interstitial), is a high-purity version of the popular Grade 5 alloy. With enhanced biocompatibility, fracture toughness, and superior ductility, it’s particularly well-suited for critical medical, aerospace, and high-performance industrial applications. The alloy features a composition of 6% Aluminum, 4% Vanadium, and reduced levels of oxygen and other impurities, offering exceptional strength-to-weight ratio, excellent fatigue resistance, and outstanding corrosion resistance, especially in chloride-rich environments.
Download Titanium Grade 23 Datasheet
Get the complete Titanium Grade 23 datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Chemical Composition
| Element | Composition (%) |
|---|---|
| Titanium | Balance |
| Aluminum | 5.5 – 6.5 |
| Vanadium | 3.5 – 4.5 |
| Iron | 0.25 max |
| Oxygen | 0.13 max |
| Carbon | 0.08 max |
| Nitrogen | 0.05 max |
| Hydrogen | 0.0125 max |
| Yttrium | 0.005 max |
| Other elements, total | 0.40 max |
Technical Composition
Physical Properties
| Property | Imperial | Metric |
|---|---|---|
| Density | 0.160 lb/in³ | 4.43 g/cm³ |
| Melting Point | 2887 °F | 1586 °C |
| Elastic Modulus | 16.5 x 10⁶ psi | 114 GPa |
| Thermal Conductivity | 4.5 BTU/hr·ft·°F | 6.5 W/m·K |
| Electrical Resistivity | 6.13 x 10⁻⁶ Ω·in | 15.6 µΩ·cm |
Mechanical Properties
| Property | Tubing (Annealed) | Tubing (Cold Drawn) | Bar (Annealed) | Plate (Annealed) | Sheet (Annealed) |
|---|---|---|---|---|---|
| Tensile Strength (ksi) | 125 | 140 | 130 | 128 | 132 |
| Tensile Strength (MPa) | 862 | 965 | 896 | 883 | 910 |
| Yield Strength (0.2%) (ksi) | 115 | 125 | 120 | 118 | 121 |
| Yield Strength (MPa) | 793 | 862 | 827 | 814 | 834 |
| Elongation (%) | 15 | 10 | 14 | 4 | 12 |
Products in Titanium Grade 23
Titanium Grade 23 (UNS R56401) is one of the most trusted high-performance titanium alloys, renowned for its light weight, strength, corrosion resistance, and biocompatibility. It is extensively used in medical implants, aerospace systems, motorsports, and marine engineering.
✔
Seamless Pipes
✔
Welded Pipes (ERW & EFW)
✔
Tubes (Capillary, U-Bend)
✔
Sheets & Plates
✔
Coils & Strips
✔
Round Bars, Flat Bars, Hex Bars, Square Bars
✔
Pipe Fittings (Elbows, Tees, Reducers, Caps, Stub Ends)
✔
Flanges (Weld Neck, Slip-On, Blind, Socket Weld, Threaded)
✔
Fasteners (Bolts, Nuts, Screws, Washers, Studs)
✔
Custom Fabricated Components
We supply Titanium Grade 23 materials in accordance with the most stringent industry standards:
Uses and Advantages
Excellent Biocompatibility – Ideal for surgical implants and prosthetics
High Strength-to-Weight Ratio – Perfect for aerospace, motorsport, and performance gear
Superior Corrosion Resistance – Performs reliably in seawater, body fluids, and oxidizing environments
Excellent Weldability and Formability – Easy to machine and fabricate without compromising structure
Exceptional Fracture Toughness – Withstands cyclic stress and fatigue in mission-critical applications
Applications of Titanium Grade 7
Titanium Grade 23 is engineered for environments where purity, strength, and corrosion resistance are non-negotiable. It’s a preferred alloy across multiple sectors:
Medical Industry
Orthopedic implants, dental screws, joint replacements, and surgical tools.
Aerospace and Aviation
Airframe components, fasteners, hydraulic tubing, and engine elements.
Motorsport and Automotive
High-performance components requiring strength and lightweight properties.
Marine Engineering
Used in components exposed to saltwater, including underwater fasteners and fittings.
Industrial Equipment
High-purity processing tools for food, pharma, and biotech sectors.
Additive Manufacturing
Suitable for 3D printing of lightweight, biocompatible metal parts.
WHY CHOOSE US?
FAQ's
What is Titanium Grade 23 and its key features?
Titanium Grade 23 (Ti-6Al-4V ELI) is a high-purity titanium alloy known for its excellent biocompatibility, superior strength to weight ratio, exceptional corrosion resistance, and high fracture toughness. These properties make it ideal for medical, aerospace, and high-performance industrial applications.
Which products are available in Titanium Grade 23?
MOKSH TUBES & FITTINGS LLP offers a wide range of Titanium Grade 23 products, including seamless and welded pipes, various tubes, sheets, plates, coils, bars, flanges, fasteners, wire mesh, and custom fabricated components designed to meet high performance specifications.
What are the main applications of Titanium Grade 23?
Titanium Grade 23 is widely used in medical implants and surgical devices, aerospace components, motorsports, marine engineering, industrial machinery, and additive manufacturing, offering reliability and performance in demanding environments.
What advantages does Titanium Grade 23 provide over other alloys?
Titanium Grade 23 provides excellent biocompatibility, superior corrosion resistance, high fatigue strength, weldability, and lightweight performance. These advantages make it especially suitable for critical medical and high performance industrial applications.
Why choose MOKSH TUBES & FITTINGS LLP for Titanium Grade 23?
MOKSH TUBES & FITTINGS LLP supplies high quality Titanium Grade 23 with custom fabrication services, global shipping, strict quality control, and technical support, ensuring precision, reliability, and compliance for demanding applications.
