Product Overview

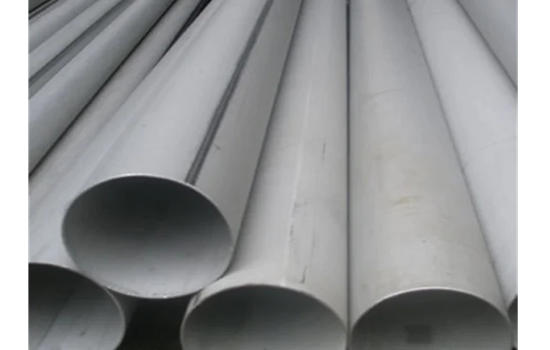

STAINLESS STEEL 304 WELDED PIPES
SS 304 Welded Pipes are manufactured from austenitic stainless steel containing chromium and nickel, providing excellent corrosion resistance, formability, and weldability. These pipes are produced by forming stainless steel coils or plates into tubular shapes and welding the seam using advanced welding techniques such as ERW, EFW, or TIG welding, followed by heat treatment and finishing.
At Moksh Tubes & Fittings LLP, we are a leading manufacturer, supplier, and exporter of SS 304 Welded Pipes in India, supplying high-quality pipes to domestic infrastructure projects and international markets including UAE, Saudi Arabia, Qatar, Oman, and Kuwait.
SS 304 Welded Pipes are widely used in food processing, dairy, pharmaceuticals, water pipelines, oil & gas utilities, fabrication, and architectural applications where hygiene, corrosion resistance, and cost efficiency are essential.
Download SS304 Welded Pipes Datasheet
Get the complete SS304 Welded Pipes datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Specifications
| Category | Details |
|---|---|
| Material | Stainless Steel 304 / 304L |
| Standard | ASTM A312 / ASME SA312 |
| Manufacturing | Welded (ERW / EFW / TIG) |
| Outer Diameter (OD) | 6 mm to 1200 mm |
| Wall Thickness | 0.8 mm to 20 mm |
| Length | 6 m, 12 m, or cut-to-length |
| Surface Finish | Mill Finish, Pickled & Passivated, Polished |
| Pipe Ends | Plain End, Beveled End |
| Form | Round Pipes |
| Heat Treatment | Solution Annealed |
| Applications | Industrial, Structural, Hygienic |
Size & Weight Chart – SS 304 Welded Pipes
SS 304 Welded Pipes are available in standard schedules such as 5S, 10S, 40S, and 80S.
Schedule 5S
| NB (Inch) | OD (mm) | WT (mm) | Weight (kg/m) |
|---|---|---|---|
| 1/2" | 21.34 | 1.65 | 0.79 |
| 3/4" | 26.67 | 1.65 | 1.02 |
| 1" | 33.40 | 1.65 | 1.29 |
| 1½" | 48.30 | 1.65 | 1.88 |
| 2" | 60.33 | 1.65 | 2.36 |
| 2½" | 73.03 | 2.11 | 3.54 |
| 3" | 88.90 | 2.11 | 4.35 |
| 4" | 114.30 | 2.11 | 5.63 |
| 6" | 168.28 | 2.77 | 11.2 |
Schedule 10S
| NB (Inch) | OD (mm) | WT (mm) | Weight (kg/m) |
|---|---|---|---|
| 1/2" | 21.34 | 2.11 | 1.00 |
| 3/4" | 26.67 | 2.11 | 1.27 |
| 1" | 33.40 | 2.77 | 2.13 |
| 1½" | 48.30 | 2.77 | 3.16 |
| 2" | 60.33 | 2.77 | 3.99 |
| 2½" | 73.03 | 3.05 | 5.44 |
| 3" | 88.90 | 3.05 | 6.44 |
| 4" | 114.30 | 3.05 | 8.87 |
| 6" | 168.28 | 3.40 | 13.6 |
Schedule 40S
| NB (Inch) | OD (mm) | WT (mm) | Weight (kg/m) |
|---|---|---|---|
| 1/2" | 21.34 | 2.77 | 1.29 |
| 3/4" | 26.67 | 2.87 | 1.71 |
| 1" | 33.40 | 3.38 | 2.54 |
| 1½" | 48.30 | 3.68 | 4.11 |
| 2" | 60.33 | 3.91 | 5.52 |
| 2½" | 73.03 | 5.16 | 8.63 |
| 3" | 88.90 | 5.49 | 11.3 |
| 4" | 114.30 | 6.02 | 16.1 |
| 6" | 168.28 | 7.11 | 28.3 |
Schedule 80S
| NB (Inch) | OD (mm) | WT (mm) | Weight (kg/m) |
|---|---|---|---|
| 1/2" | 21.34 | 3.73 | 1.65 |
| 3/4" | 26.67 | 3.91 | 2.23 |
| 1" | 33.40 | 4.55 | 3.29 |
| 1½" | 48.30 | 5.08 | 5.49 |
| 2" | 60.33 | 5.54 | 7.60 |
| 2½" | 73.03 | 7.01 | 11.4 |
| 3" | 88.90 | 7.62 | 15.3 |
| 4" | 114.30 | 8.56 | 22.3 |
| 6" | 168.28 | 10.97 | 42.6 |
Grades Available
SS 304 (UNS S30400)
General corrosion resistance and fabrication
SS 304L (UNS S30403)
Low carbon, improved weld corrosion resistance
Equivalent Grades
EN 1.4301 / 1.4307
DIN X5CrNi18-10
JIS SUS 304
NICKEL ALLOYS
STAINLESS STEEL
DUPLEX & SUPER
TITANIUM ALLOYS
Haynes Superalloys
Inconel
Applications
Food, Dairy & Beverage Industry
✔ Milk and beverage pipelines
✔ Brewing & processing lines
Chemical & Pharmaceutical
✔ Chemical transfer piping
✔ Process & reactor pipelines
Oil & Gas / Industrial Fabrication
✔ Utility piping
✔ Instrumentation lines
Water & Plumbing Systems
✔ Drinking water pipelines
✔ RO & water treatment plants
Architectural & Structural
✔ Handrails, frames, supports
✔ Decorative stainless steel works
Advantages of SS 304 Welded Pipes
Excellent corrosion resistance
Smooth internal surface for efficient flow
Cost-effective compared to seamless pipes
Easy fabrication and welding
Suitable for food-grade and hygienic applications
Compliance with international standards
Mechanical Properties – SS 304 Welded Pipes
(Typical values as per ASTM standards)
| Standard | SS 304 | SS 304L | SS 304H |
|---|---|---|---|
| Tensile Strength (MPa) | Min. 515 MPa | Min. 485 MPa | 515 MPa min |
| Yield Strength (MPa) | Min. 205 MPa | Min. 170 MPa | 205 MPa min |
| Elongation (%) | Min. 40% | Min. 40% | 40% min |
| Hardness (HB) | Max. 201 | Max. 201 | 92 HRB max |
📌 Actual values depend on material grade and heat treatment.
Why Choose Moksh Tubes & Fittings LLP?
Frequently Asked Questions (FAQ)
What is SS 304 Welded Pipe?
A stainless steel pipe manufactured by forming and welding SS 304 strips or plates, suitable for corrosion-resistant applications.
Is SS 304 Welded Pipe food-grade?
Yes, it is widely used in food, dairy, and beverage industries.
Difference between Welded and Seamless pipes?
Welded pipes are economical and precise, while seamless pipes are preferred for very high-pressure applications.
Do you provide test certificates?
Yes, EN 10204 3.1 certificates are provided with every supply.
Delivery time?
Ex-stock: 2–5 working days
Manufacturing: 2–4 weeks
REQUEST A QUOTE
Looking for SS 304 Welded Pipes for industrial or export projects?
📞 Call: +91 97695 84950
🌐 Moksh Tubes & Fittings LLP
Precision stainless steel piping solutions you can trust.
