Product Overview

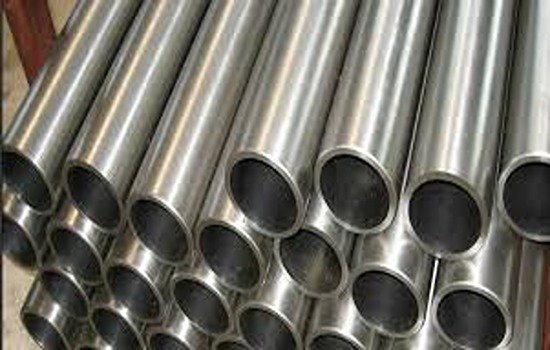

STAINLESS STEEL 304 ERW PIPES
SS 304 ERW Pipes are manufactured from austenitic stainless steel containing chromium and nickel, providing excellent corrosion resistance, formability, and weldability.
These pipes are produced by cold-forming stainless steel strips into tubular shapes followed by high-frequency electric resistance welding (ERW), ensuring uniform weld integrity and excellent dimensional control.
At Moksh Tubes & Fittings LLP, we are a trusted manufacturer, supplier, and exporter of SS 304 ERW Pipes in India, supplying both domestic projects and Gulf / GCC markets including UAE, Saudi Arabia, Qatar, Oman, and Kuwait.
Our SS 304 / 304L ERW Pipes are widely used in chemical processing, food & dairy, pharmaceuticals, water pipelines, oil & gas, fabrication, and architectural applications.
Download SS304 ERW Pipes Datasheet
Get the complete SS304 ERW Pipes datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Specifications
| Category | Details |
|---|---|
| Material | Stainless Steel 304 / 304L |
| Standard | ASTM A312 / ASME SA312 |
| Manufacturing | Electric Resistance Welded (ERW) |
| Outer Diameter (OD) | 6 mm to 610 mm |
| Wall Thickness | 0.8 mm to 12.7 mm |
| Length | 6 m, 12 m, or cut-to-length |
| Surface Finish | Mill Finish, Pickled & Passivated, Polished |
| Pipe Ends | Plain End, Beveled End |
| Form | Round Pipes |
| Heat Treatment | Solution Annealed |
| Applications | Industrial, Structural, Hygienic & Pressure |
Size & Weight Chart – SS 304 ERW Pipes
SS 304 ERW Pipes are available in standard schedules (ASTM A312):
📌 Weights are
theoretical (kg/m) | 📌 Dimensions as per ASTM A312 | 📌 Custom OD & wall thickness available
Schedule 5S
| NB (Inch) | OD (mm) | WT (mm) | Weight (kg/m) |
|---|---|---|---|
| 1/2" | 21.34 | 1.65 | 0.80 |
| 3/4" | 26.67 | 1.65 | 1.03 |
| 1" | 33.40 | 1.65 | 1.30 |
| 1½" | 48.26 | 1.65 | 1.91 |
| 2" | 60.33 | 1.65 | 2.40 |
| 2½" | 73.03 | 2.11 | 3.69 |
| 3" | 88.90 | 2.11 | 4.51 |
| 4" | 114.30 | 2.11 | 5.84 |
| 6" | 168.28 | 2.77 | 11.32 |
Schedule 10S
| NB (Inch) | OD (mm) | WT (mm) | Weight (kg/m) |
|---|---|---|---|
| 1/2" | 21.34 | 2.11 | 1.00 |
| 3/4" | 26.67 | 2.11 | 1.28 |
| 1" | 33.40 | 2.77 | 2.08 |
| 1½" | 48.26 | 2.77 | 3.11 |
| 2" | 60.33 | 2.77 | 3.92 |
| 2½" | 73.03 | 3.05 | 5.44 |
| 3" | 88.90 | 3.05 | 6.63 |
| 4" | 114.30 | 3.05 | 8.84 |
| 6" | 168.28 | 3.40 | 14.92 |
Schedule 40S
| NB (Inch) | OD (mm) | WT (mm) | Weight (kg/m) |
|---|---|---|---|
| 1/2" | 21.34 | 2.77 | 1.27 |
| 3/4" | 26.67 | 2.87 | 1.70 |
| 1" | 33.40 | 3.38 | 2.46 |
| 1½" | 48.26 | 3.68 | 4.18 |
| 2" | 60.33 | 3.91 | 5.44 |
| 2½" | 73.03 | 5.16 | 8.63 |
| 3" | 88.90 | 5.49 | 11.29 |
| 4" | 114.30 | 6.02 | 17.15 |
| 6" | 168.28 | 7.11 | 30.70 |
Schedule 80S
| NB (Inch) | OD (mm) | WT (mm) | Weight (kg/m) |
|---|---|---|---|
| 1/2" | 21.34 | 3.73 | 1.63 |
| 3/4" | 26.67 | 3.91 | 2.30 |
| 1" | 33.40 | 4.55 | 3.38 |
| 1½" | 48.26 | 5.08 | 5.61 |
| 2" | 60.33 | 5.54 | 7.48 |
| 2½" | 73.03 | 7.01 | 11.76 |
| 3" | 88.90 | 7.62 | 15.74 |
| 4" | 114.30 | 8.56 | 25.10 |
| 6" | 168.28 | 10.97 | 49.56 |
Grades Available
SS 304 (UNS S30400)
Excellent corrosion resistance & strength
SS 304L (UNS S30403)
Low carbon, improved weld corrosion resistance
Equivalent Grades
EN 1.4301 / 1.4307
JIS SUS 304 / 304L
NICKEL ALLOYS
STAINLESS STEEL
DUPLEX & SUPER
TITANIUM ALLOYS
Haynes Superalloys
Inconel
Applications
Food, Dairy & Beverage
✔ Milk pipelines
✔ Brewery & juice processing lines
Chemical & Pharmaceutical
✔ Chemical transfer pipelines
✔ Reactor & process piping
Oil & Gas / Industrial
✔ Utility piping
✔ Instrumentation lines
Water & Plumbing Systems
✔ Drinking water pipelines
✔ RO & water treatment plants
Architectural & Structural
✔ Handrails, supports, frames
✔ Decorative stainless steel works
Advantages of SS 304 ERW Pipes
Excellent corrosion resistance
Smooth internal surface for fluid flow
Cost-effective compared to seamless pipes
Easy fabrication & welding
Suitable for food-grade & hygienic use
Compliance with international standards
Mechanical Properties
Mechanical Properties of SS 304 / 304L ERW Pipes
| Property | SS 304 | SS 304L |
|---|---|---|
| Tensile Strength | Min. 515 MPa | Min. 485 MPa |
| Yield Strength (0.2%) | Min. 205 MPa | Min. 170 MPa |
| Elongation | Min. 40% | Min. 40% |
| Hardness (HB) | Max. 201 | Max. 201 |
📌 SS 304L offers improved resistance to intergranular corrosion after welding, making it ideal for fabrication and pressure piping.
WHY CHOOSE US?
Frequently Asked Questions (FAQ)
What is SS 304 ERW Pipe?
SS 304 ERW Pipe is a welded stainless steel pipe manufactured using electric resistance welding, suitable for corrosion-resistant and hygienic applications.
Is SS 304 ERW Pipe suitable for food-grade use?
Yes, SS 304 ERW Pipes are widely used in food, dairy, and beverage industries due to their hygiene and corrosion resistance.
What is the difference between ERW and Seamless pipes?
ERW pipes are welded and cost-effective, while seamless pipes are preferred for very high-pressure applications.
Do you provide test certificates?
Yes, all supplies include EN 10204 3.1 certificates.
What is delivery time?
Ex-stock items: 2–5 working days
Manufacturing orders: 2–4 weeks
