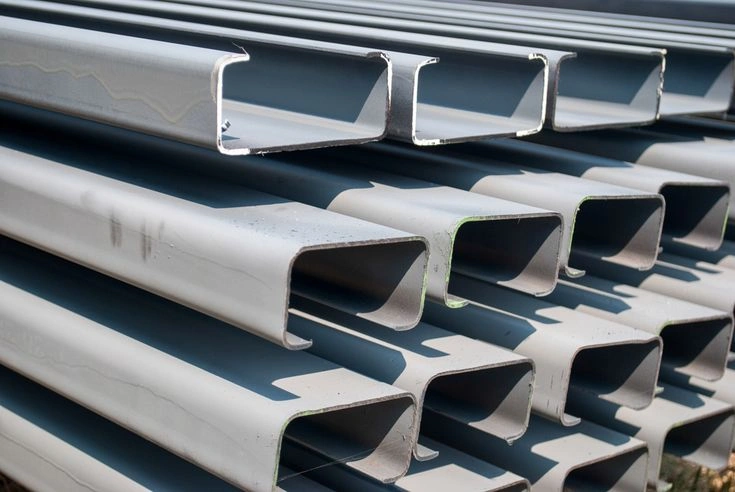

Indian Structural Channels
Indian Structural Channels are structural steel sections featuring a channel-shaped profile that is commonly used for supporting and framing applications. Their geometry makes them suitable for applications where a combination of structural strength, rigidity and convenient fabrication is required.
Structural channels are used across construction, industrial structures, steel fabrication, infrastructure projects, platforms, supports, frames, machinery structures and engineering applications. Depending on the design requirement, the appropriate channel size and thickness can be selected to provide the required structural performance.
Indian Structural Channels can be supplied according to the applicable Indian Standard and project specification. Customers can specify the required section dimensions, thickness, material grade, length and quantity when submitting an enquiry.
At Moksh Tubes & Fittings LLP, we support structural channel requirements for contractors, fabricators, engineering companies, industrial buyers and project-based customers. Product requirements can be evaluated according to the customer's technical specifications and application.
Structural channels can also be combined with other structural steel sections such as angles, beams, columns and hollow sections to create complete fabricated steel structures.
For an accurate quotation, customers can provide their required channel size, thickness, grade, length, quantity and applicable specification, along with project drawings or technical documentation where required.
Download Indian Structural Channels Datasheet
Get the complete Indian Structural Channels datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Specifications
Indian Structural Channels are available in different section dimensions, thicknesses, lengths and structural steel grades according to applicable Indian Standards and project requirements. The required channel section is selected based on structural design, loading conditions, connection requirements and intended application.
| Category | Details |
|---|---|
| Product | Indian Structural Channels |
| Profile | Channel / C-Shaped Structural Section |
| Material | Structural Steel / Carbon Steel |
| Types | Structural Channels as per applicable IS sections |
| Standards | Applicable Indian Standards / Project Specifications |
| Grades | As per applicable material specification |
| Section Dimensions | Various standard sizes |
| Thickness | As per selected channel section |
| Length | Standard Lengths / Cut-to-Length |
| Surface | Mill Finish / As Specified |
| Supply Form | Individual Sections / Bundles |
| Customization | Size, thickness, length and grade as required |
| Applications | Construction, Fabrication, Infrastructure, Industrial & Engineering Applications |
Size & Weight Chart
The standard classifies Indian channels into ISJC (Junior), ISLC (Light), ISMC (Medium), and ISMPC (Medium Weight Parallel Flange Channels).
ISJC – Indian Standard Junior Channels
| Section | Depth (mm) | Flange Width (mm) | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| ISJC 100 | 100 | 45 | 3.0 | 5.1 | 5.80 |
| ISJC 125 | 125 | 50 | 3.0 | 6.6 | 7.90 |
| ISJC 150 | 150 | 55 | 3.6 | 6.9 | 9.90 |
| ISJC 175 | 175 | 60 | 3.6 | 6.9 | 11.20 |
| ISJC 200 | 200 | 70 | 4.1 | 7.1 | 14.00 |
The ISJC series is listed in IS 808:2021 under junior channels.
ISLC – Indian Standard Light Weight Channels
| Section | Depth (mm) | Flange Width (mm) | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| ISLC 75 | 75 | 40 | 3.7 | 6.0 | 5.70 |
| ISLC 100 | 100 | 50 | 4.0 | 6.4 | 7.90 |
| ISLC 125 | 125 | 65 | 4.4 | 6.6 | 10.70 |
| ISLC 150 | 150 | 75 | 4.8 | 7.8 | 14.40 |
| ISLC 175 | 175 | 75 | 5.1 | 9.5 | 17.60 |
| ISLC 200 | 200 | 75 | 5.5 | 10.8 | 20.60 |
| ISLC 225 | 225 | 90 | 5.8 | 10.2 | 24.00 |
| ISLC 250 | 250 | 100 | 6.1 | 10.7 | 28.00 |
| ISLC 300 | 300 | 100 | 6.7 | 11.6 | 33.10 |
| ISLC 350 | 350 | 100 | 7.4 | 12.5 | 38.90 |
| ISLC 400 | 400 | 100 | 8.0 | 14.0 | 45.80 |
These dimensions and masses correspond to the light-channel series in the IS 808:2021 table; the standard also identifies some provisional variants separately.
ISMC – Indian Standard Medium Weight Channels
| Section | Depth (mm) | Flange Width (mm) | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| ISMC 75 | 75 | 40 | 4.8 | 7.5 | 7.14 |
| ISMC 100 | 100 | 50 | 5.0 | 7.7 | 9.56 |
| ISMC 125 | 125 | 65 | 5.3 | 8.2 | 13.10 |
| ISMC 125* | 125 | 66 | 6.0 | 8.1 | 13.70 |
| ISMC 150 | 150 | 75 | 5.7 | 9.0 | 16.80 |
| ISMC 150* | 150 | 76 | 6.5 | 9.0 | 17.70 |
| ISMC 175 | 175 | 75 | 6.0 | 10.2 | 19.60 |
| ISMC 175* | 175 | 76 | 7.5 | 10.2 | 22.70 |
| ISMC 200 | 200 | 75 | 6.2 | 11.4 | 22.30 |
| ISMC 200* | 200 | 76 | 7.5 | 11.4 | 24.30 |
| ISMC 225 | 225 | 80 | 6.5 | 12.4 | 26.10 |
| ISMC 225* | 225 | 82 | 9.0 | 12.4 | 30.70 |
| ISMC 250 | 250 | 80 | 7.2 | 14.1 | 30.60 |
| ISMC 250* | 250 | 82 | 9.0 | 14.1 | 36.30 |
| ISMC 300 | 300 | 90 | 7.6 | 13.6 | 36.30 |
| ISMC 300* | 300 | 92 | 10.0 | 13.6 | 41.50 |
| ISMC 300* | 300 | 94 | 12.0 | 13.6 | 46.20 |
| ISMC 350 | 350 | 100 | 8.3 | 13.5 | 42.70 |
| ISMC 400 | 400 | 100 | 8.8 | 15.3 | 50.10 |
ISMPC – Indian Standard Medium Weight Parallel Flange Channels
| Section | Depth (mm) | Flange Width (mm) | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| ISMPC 75 | 75 | 40 | 4.8 | 7.5 | 7.14 |
| ISMPC 100 | 100 | 50 | 5.0 | 7.7 | 9.56 |
| ISMPC 125 | 125 | 65 | 5.5 | 8.1 | 13.10 |
| ISMPC 125* | 125 | 66 | 6.0 | 8.1 | 13.70 |
| ISMPC 150 | 150 | 75 | 5.7 | 9.0 | 16.80 |
| ISMPC 150* | 150 | 76 | 6.5 | 9.0 | 17.70 |
| ISMPC 175 | 175 | 75 | 6.0 | 10.2 | 19.60 |
| ISMPC 175* | 175 | 77 | 7.5 | 10.2 | 21.70 |
| ISMPC 200 | 200 | 75 | 6.2 | 11.4 | 22.30 |
| ISMPC 200* | 200 | 76 | 7.5 | 11.4 | 24.30 |
| ISMPC 225 | 225 | 80 | 6.5 | 12.4 | 26.10 |
| ISMPC 225* | 225 | 83 | 9.0 | 12.4 | 30.70 |
For the parallel-flange series, IS 808:2021 uses the designation MPC in its section tables; the classification identifies this family as ISMPC.
Grades Available
Indian Structural Channels can be supplied in different structural steel grades according to the applicable Indian Standard and project requirements. The required grade is selected based on the intended structural application, required mechanical properties, design requirements and fabrication needs.
At Moksh Tubes & Fittings LLP, Structural Channels can be sourced according to the customer's specified grade, dimensions, thickness, length and applicable standard, subject to product availability.
Structural Steel Grades
| Grade / Specification | Material Type | Typical Requirement |
|---|---|---|
| IS 2062 | Structural Steel | General structural and engineering applications |
| E250 | Structural Steel | General structural and fabrication applications |
| E350 | Structural Steel | Applications requiring higher specified strength |
| Other Grades | Structural Steel | As per project specification and requirement |
