Sockolets

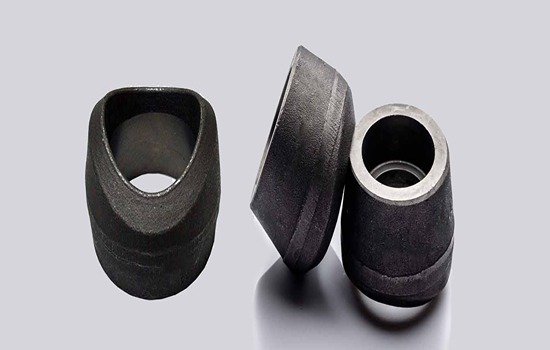

Sockolets provide a self-reinforcing, fully integrated branch connection that is vastly superior to cutting a hole in the run pipe and welding in a stub. The base of the Sockolet is profiled (contoured) to perfectly match the outer curvature of the run pipe, while the branch side features a standardized socket bore.
Moksh Tubes & Fittings LLP is a leading manufacturer, supplier, and exporter of Sockolets in India. We cater to critical small-bore branching requirements for Indian refineries and major Gulf / GCC nations including UAE, Saudi Arabia, Qatar, Oman, and Kuwait.
Available in Class 3000 and Class 6000 pressure ratings, our Sockolets are hot-forged from premium steel billets, completely eliminating porosity and ensuring the highest structural integrity for high-pressure, high-temperature fluid lines.
Download Sockolet Datasheet
Get the complete Sockolet datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
SPECIFICATIONS
| Category | Details |
|---|---|
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex / Super Duplex Steel, Nickel Alloys, Titanium |
| Run Pipe Size (Header) | 1/2" to 36" (and larger / custom consolidations) |
| Branch Pipe Size | 1/8" to 4" (Standard for socket-weld fittings) |
| Pressure Rating | Class 3000 (Sch 80), Class 6000 (Sch 160), Class 9000 (XXS) |
| Connection Type | Base: Welded to Run Pipe | Branch: Socket Weld (SW) to Branch Pipe |
| Dimensional Standards | MSS-SP-97, ASME B16.11 (for socket dimensions) |
Sockolets weight chart
| Branch Size (NPS) | Face to Run Pipe (A) (mm) | Socket Bore Diameter (B) (mm) | Socket Depth (C) (mm) | Approx. Weight (kg) |
|---|---|---|---|---|
| 1/2" | 25.4 | 21.8 | 9.5 | 0.14 |
| 3/4" | 27.0 | 27.2 | 12.5 | 0.20 |
| 1" | 33.3 | 33.9 | 12.5 | 0.38 |
| 1-1/4" | 33.3 | 42.7 | 12.5 | 0.60 |
| 1-1/2" | 35.0 | 48.8 | 12.5 | 0.75 |
| 2" | 38.1 | 61.2 | 16.0 | 1.25 |
| 2-1/2" | 46.0 | 73.9 | 16.0 | 2.10 |
| 3" | 51.0 | 89.8 | 16.0 | 3.05 |
| 4" | 57.0 | 115.2 | 19.0 | 5.10 |
*Dimensions based on MSS-SP-97. The base curvature varies depending on the specific Run Pipe consolidation (e.g., a 1" branch on a 6"-3" run pipe).
Available Forged Grades & Materials
| Material Type | ASTM Forging Specification & Grades |
|---|---|
| Carbon Steel | ASTM A105, ASTM A105N (Normalized) |
| Low Temp Carbon Steel (LTCS) | ASTM A350 LF2, LF3 |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Stainless Steel | ASTM A182 F304/304L, F316/316L, F321, F347 |
| Duplex & Super Duplex | ASTM A182 F51 (UNS S31803), F53 (UNS S32750) |
| Nickel Alloys | Inconel 600/625, Hastelloy C276, Monel 400 |
NICKEL ALLOYS
STAINLESS STEEL
DUPLEX & SUPER
TITANIUM ALLOYS
Haynes Superalloys
Inconel
Applications of Sockolets
Sockolets are specifically used for creating small-bore branch lines from larger high-pressure headers:
Instrumentation & Control
- Installing pressure gauges, thermowells, and flow meters on main process pipelines.
Oil & Gas Refineries
- Branching off small sampling lines, vent lines, and drain lines from large crude oil headers.
Hydraulic Systems
- High-pressure 6000# Sockolets are used for branching off thick-walled hydraulic and lubrication lines.
Power Generation
- Alloy steel (F11, F22, F91) Sockolets for tapping high-pressure steam distribution headers.
Chemical Processing
- Stainless steel and Exotic alloy Sockolets ensure leak-proof, corrosion-resistant branches for caustic chemicals.
Fire Protection Systems
- Connecting sprinkler lines directly to the main firewater distribution headers.
Features & Advantages
Branch Connection
Strong and reliable socket weld branch connection.
Corrosion Resistance
Excellent corrosion and oxidation resistance.
High Strength
High mechanical strength and durability.
Compact Design
Compact design for easy installation.
Leak-Proof
Leak-proof socket weld connection.
High Pressure
Suitable for high-pressure piping systems.
Long Service Life
Low maintenance and long service life.
Global Standards
Manufactured according to international quality standards.
Mechanical Properties (Forged Carbon Steel A105N)
| Grade | Tensile Strength (MPa) | Yield Strength (MPa min) | Elongation (%) | Hardness (HB max) |
|---|---|---|---|---|
| ASTM A105 / A105N | 485 | 250 | 22 | 187 |
*A105N indicates the forging has been Normalized, which is critical for low-temperature toughness in pressure piping.
Why Choose Moksh Tubes?
Frequently Asked Questions (FAQ)
Why use a Sockolet instead of a Weldolet?
Sockolets are preferred for small diameter branch pipes (typically under 2") because socket welding is much easier and faster than full penetration butt-welding. The socket automatically aligns the branch pipe, and the welder does not have to worry about weld slag falling inside the pipeline (which is a risk with butt-welding small pipes).
What is the difference between a 3000# and a 6000# Sockolet?
These classes designate the pressure rating and wall thickness. A 3000# Sockolet is designed to match the wall thickness of a Schedule 80 branch pipe. A 6000# Sockolet matches the thickness of a Schedule 160 branch pipe and is much thicker and heavier to withstand higher pressures.
What does the "consolidation" mean on a Sockolet, like 8"-3" x 1"?
The base curve of a Sockolet can fit a range of run pipe sizes. An "8-3 x 1" Sockolet has a base machined to fit any run pipe from 3" to 8" in diameter, while providing a 1" socket branch. This consolidation drastically reduces the inventory needed.
Why must I leave a gap when welding a pipe into a Sockolet?
Per ASME standards, a 1/16" gap must be left between the end of the pipe and the bottom of the socket recess before welding. If the pipe is pushed tight against the bottom, thermal expansion during welding (or in service) will cause massive stress and crack the fillet weld.
