Stainless Steel 317 | Product Overview

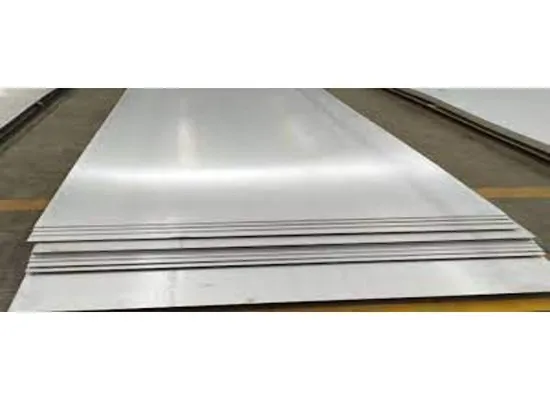

Introduction To Austenitic Stainless Steel 317
MOKSH TUBES & FITTINGS LLP is a trusted manufacturer, supplier, exporter, importer, and stockist of Austenitic Stainless Steel 317 products such as pipes & tubes, sheets, plates, bars, and fittings.
Austenitic Stainless Steel 317, is an austenitic stainless steel with high molybdenum content, offering enhanced corrosion resistance, especially in severe environments containing chlorides and acids. It is widely used where higher corrosion resistance than 316 is needed. This alloy also exhibits good strength and excellent resistance to pitting and crevice corrosion, making it ideal for chemical processing, pollution control, and marine applications.
Download Austentic Stainles Steel 317 Datasheet
Get the complete Austentic Stainles Steel 317 datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Technical Specifications – Stainless Steel 317 (UNS S31700 / EN 1.4438)
| Category | Details |
|---|---|
| Material | Austenitic Stainless Steel 317 |
| UNS No. | S31700 |
| EN / DIN | 1.4438 |
| Alloy Type | High-Molybdenum Austenitic SS |
| Chromium | 18 – 20 % |
| Nickel | 11 – 15 % |
| Molybdenum | 3 – 4 % |
| Magnetic Properties | Non-Magnetic |
| Heat Treatable | ❌ No |
| Strengthening Method | Cold Working |
| Pitting / Crevice Resistance | Excellent |
| Acid Resistance | Very Good |
| Typical Use | Chemical & Marine Environments |
Chemical Composition of Stainless Steel 317
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.04 |
| Chromium (Cr) | 18.0 – 20.0 |
| Nickel (Ni) | 11.0 – 15.0 |
| Molybdenum (Mo) | 3.0 – 4.0 |
| Manganese (Mn) | ≤ 2.0 |
| Silicon (Si) | ≤ 0.75 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.03 |
| Nitrogen (N) | ≤ 0.10 |
Physical Properties of Stainless Steel 317
| Property | Imperial Units | Metric Units |
|---|---|---|
| Density | 0.289 lb/in³ | 8.0 g/cm³ |
| Melting Point | 2550 – 2650 °F | 1399 – 1454 °C |
| Modulus of Elasticity | 28 × 10³ ksi | 193 GPa |
| Poisson’s Ratio | 0.27 | — |
Heat Treatment & Fabrication of Stainless Steel 317
| Process | Temperature Range | Purpose |
|---|---|---|
| Solution Annealing | 1040 – 1120 °C | Restore corrosion resistance |
| Cooling | Water / Rapid Air | Prevent carbide precipitation |
| Stress Relieving | 300 – 450 °C | Reduce residual stresses |
| Cold Working | — | Increase strength |
| Welding | TIG / MIG / SMAW | Excellent with Mo-matching fillers |
📌 SS 317 outperforms SS 316 in chloride-rich and acidic service environments.
Mechanical Properties of Stainless Steel 317 (Annealed)
| Property | Annealed | Cold-Drawn | Sheet |
|---|---|---|---|
| Tensile Strength | 520 – 655 MPa | 585 – 795 MPa | 550 – 725 MPa |
| Yield Strength (0.2%) | 240 – 380 MPa | 345 – 550 MPa | 275 – 480 MPa |
| Elongation | 35 – 55 % | 20 – 40 % | 30 – 50 % |
| Brinell Hardness | 140 – 190 | 180 – 230 | 150 – 210 |
| Rockwell Hardness | 85 – 95 B | 95 – 105 B | 90 – 100 B |
Available Forms & Size Range – Stainless Steel 317
| Product Form | Size Range |
|---|---|
| Pipes & Tubes | OD 6 – 600 mm, WT 0.8 – 40 mm |
| Sheets & Plates | 0.5 – 100 mm |
| Coils & Strips | 0.1 – 6 mm |
| Bars (Round / Flat / Hex) | Ø 6 – 350 mm |
| Wire & Mesh | Standard & custom sizes |
| Fittings & Flanges | ASME / DIN standards |
| Custom Fabrication | As per drawing |
International Standards & Equivalent Grades – SS 317
| Standard | Equivalent Grade |
|---|---|
| UNS | S31700 |
| ASTM | A240, A312, A276 |
| ASME | SA240, SA312, SA276 |
| EN | 1.4438 |
| DIN | X2CrNiMo18-15-4 |
| JIS | SUS 317 |
| BS | 317S31 |
| ISO | X2CrNiMo18-15-4 |
Products in Austenitic Stainless Steel 317
Austenitic Stainless Steel 317 is available in:
Austenitic Stainless Steel 317 products are produced to the following global standards:
Uses and Advantages
Higher molybdenum content provides superior resistance to pitting and crevice corrosion
Excellent resistance to strong acids and chloride environments
Good strength and toughness
Suitable for use in high-temperature applications
Good weldability and corrosion resistance post-welding
Applications of Austenitic Stainless Steel 317
Austenitic Stainless Steel 317 is used in environments requiring superior corrosion resistance and mechanical properties, including:
Chemical Processing
Equipment exposed to strong acids such as sulfuric, phosphoric, and nitric acid.
Pollution Control Equipment
Scrubbers and stacks for acidic gas environments.
Marine and Offshore
Components exposed to seawater and marine atmospheres.
Food Processing
Handling acidic foods and cleaning chemicals.
Pharmaceutical Industry
Corrosion-resistant equipment for manufacturing and processing.
WHY CHOOSE US?
STAINLESS STEEL 317 PRICE PER KG (INDIA)
Typical Range: ₹420 – ₹780 per kg
(Price varies by OD, wall thickness, form, and finish)
Contact us for exact quotation based on size and quantity.
FAQ's
What is Austenitic Stainless Steel 317 and how is it different from 316 stainless steel?
Austenitic Stainless Steel 317 is a molybdenum-rich stainless steel that offers greater corrosion resistance than SS 316, especially in environments containing chlorides, acids, and aggressive chemicals. With 3–4% molybdenum content, SS 317 provides superior resistance to pitting and crevice corrosion, making it ideal for chemical processing, pollution control, and marine applications.
What are the key properties of Stainless Steel 317?
SS 317 offers:
- Enhanced resistance to chlorides, sulfuric acid, phosphoric acid, and acidic environments.
- Superior protection against pitting and crevice corrosion compared to SS 316.
- High mechanical strength and toughness at both ambient and elevated temperatures.
- Excellent weldability and formability.
- Good resistance after welding due to controlled carbon content.
Where is Stainless Steel 317 commonly used?
SS 317 is widely used in:
- Chemical processing plants (tanks, reactors, heat exchangers).
- Pollution control equipment (scrubbers, flue gas stacks).
- Marine and offshore industries (seawater-exposed components).
- Food and beverage processing (handling acidic foods and cleaning chemicals).
- Pharmaceutical industry (corrosion-resistant processing equipment).
Why is Stainless Steel 317 preferred over 316 in aggressive environments?
Stainless Steel 317 has a higher molybdenum content (3–4%) compared to 316, which significantly improves its resistance to localized corrosion like pitting and crevice attack. This makes SS 317 the preferred choice for severe chemical, marine, and acidic service conditions where SS 316 may not provide adequate durability.
Who is a reliable supplier of Stainless Steel 317 in India?
Moksh Tubes & Fittings LLP is a trusted manufacturer, supplier, exporter, importer, and stockist of Stainless Steel 317 products. They supply pipes, tubes, sheets, plates, bars, flanges, fittings, and fasteners manufactured to international quality standards. With competitive pricing, global supply reliability, and expert technical support, Moksh Tubes & Fittings LLP is a preferred partner for industries worldwide.
