Product Overview

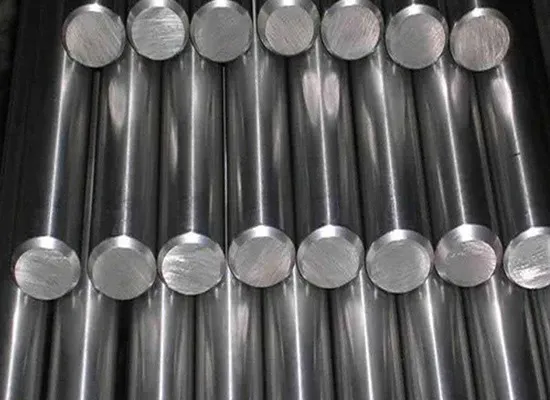

Introduction To Nimonic Alloys
MOKSH TUBES & FITTINGS LLP is a leading supplier, stockist, and exporter of high-performance Nimonic Alloys, known for their exceptional resistance to heat, oxidation, and corrosion. These nickel-chromium-based superalloys are engineered for extreme temperature applications where mechanical strength and structural stability are vital—especially in aerospace, gas turbines, nuclear reactors, and high-stress environments.
Nimonic Alloys are primarily composed of Nickel (Ni) and Chromium (Cr), often combined with Titanium (Ti) and Aluminum (Al) for precipitation hardening. Popular grades include Nimonic 75, 80A, 90, 105, 263, and others—each suited to specific mechanical and thermal requirements.
Download Hard To Find Special Alloy Nimonic Datasheet
Get the complete Hard To Find Special Alloy Nimonic datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Material Summary – NIMONIC® Alloys
| Property | Details |
|---|---|
| Material Type | Nickel–Chromium Superalloys |
| Strength Mechanism | Solid Solution + Precipitation Hardening |
| Temperature Resistance | Up to 950 – 1050 °C (Grade dependent) |
| Oxidation Resistance | Excellent |
| Creep Resistance | Excellent |
| Weldability | Good (Best: Nimonic 263) |
| Magnetic Property | Non-Magnetic |
| Typical Forms | Bars, Sheets, Tubes, Wires, Forgings |
Chemical Composition of Common Nimonic Grades
| Element | Nimonic 75 | Nimonic 80A | Nimonic 90 | Nimonic 105 | Nimonic 263 |
|---|---|---|---|---|---|
| Ni | ≤ 20% | ≤ 30% | ≤ 30% | ≤ 30% | ≤ 20% |
| Cr | ≤ 3% | ≤ 3% | ≤ 3% | ≤ 5% | ≤ 3% |
| Co | Present | ≥ 2.5% | ≤ 5% | ≤ 5% | ≤ 5% |
| Ti | ≥ 0.6% | ≤ 0.5% | ≤ 0.5% | ≤ 0.5% | ≤ 0.5% |
| Al | ≥ 0.6% | ≤ 0.5% | ≤ 0.5% | ≤ 0.5% | ≥ 1.0% |
| Mo | Present | Present | Present | ≤ 1.0% | ≤ 1.0% |
| Fe | ≥ 10% | ≥ 5% | ≥ 5% | ≥ 5% | ≥ 2% |
| Others | No C, Mn, Si, Cu, S | No B, Zr, C, Mn | No B, Zr, C, Mn | No B, Zr, C, Mn | Excludes C, Mn, Si; adds P, Sn |
📌 Composition varies by grade. Contact us for full datasheets of Nimonic 80A, 90, 105 & 263.
Physical Properties of Nimonic 75 (Typical)
| Property | Imperial Units | Metric Units |
|---|---|---|
| Density | 0.30 lb/in³ | 8.2 g/cm³ |
| Melting Range | 2500 – 2650 °F | 1370 – 1460 °C |
| Elastic Modulus (Tension) | 28 × 10³ ksi | 193 GPa |
| Elastic Modulus (Compression) | 28 × 10³ ksi | 193 GPa |
| Elastic Modulus (Torsion) | 10 × 10³ ksi | 69 GPa |
| Poisson’s Ratio | 0.30 | — |
| Curie Temperature | ~1040 °F | ~560 °C |
Heat Treatment & Strengthening of Nimonic Alloys
| Process | Temperature Range | Purpose |
|---|---|---|
| Solution Annealing | 1050 – 1200 °C | Dissolves precipitates, improves ductility |
| Aging / Precipitation Hardening | 700 – 850 °C | Increases high-temperature strength |
| Stress Relieving | 650 – 750 °C | Reduces residual stresses |
| Hot Working | 950 – 1150 °C | Forging & rolling |
| Cold Working + Aging | — | Improves strength & creep resistance |
📌 Grades like Nimonic 80A, 90 & 105 rely on γ′ (gamma-prime) precipitation for strength.
Mechanical Properties – Nimonic 75 (Typical)
| Property | Annealed | Hot-Finished | Cold-Drawn | Hot-Rolled | Sheet |
|---|---|---|---|---|---|
| Tensile Strength | 620–830 MPa | 896–1172 MPa | 1034–1379 MPa | 690–965 MPa | 620–896 MPa |
| Yield Strength (0.2%) | 414–620 MPa | 758–1034 MPa | 965–1240 MPa | 483–758 MPa | 414–620 MPa |
| Elongation | 15–30% | 8–15% | 5–10% | 15–25% | 20–30% |
| Brinell Hardness | 180–220 | 250–300 | 300–350 | 200–250 | 180–220 |
| Rockwell Hardness | 60–70 B | 80–90 B | 90–95 B | 70–80 B | 65–75 B |
Available Forms & Size Range – Nimonic Alloys
| Product Form | Typical Size Range |
|---|---|
| Round Bars / Rods | 6 mm – 350 mm |
| Flat Bars | Thickness 5 – 100 mm |
| Sheets & Plates | 0.5 – 60 mm |
| Coils & Strips | 0.1 – 6 mm |
| Pipes & Tubes | OD 6 – 250 mm |
| Wires | 0.1 – 12 mm |
| Fasteners | M4 – M72 |
| Custom Components | As per drawing |
International Standards & Equivalent Grades – Nimonic
| Grade | UNS | British Std | AMS | ISO |
|---|---|---|---|---|
| Nimonic 75 | N06075 | BS HR1 | AMS 5709 | ISO NiCr20Ti |
| Nimonic 80A | N07080 | BS HR6017 | AMS 5699 | — |
| Nimonic 90 | N07090 | BS HR3 | AMS 5823 | — |
| Nimonic 105 | N12115 | BS HR5 | AMS 5745 | — |
| Nimonic 263 | N07263 | — | AMS 5887 | — |
Products in Nimonic Alloys
Nimonic Alloys is commonly supplied as:
✔
Seamless Pipes
✔
Welded Pipes (ERW & EFW)
✔
Tubes (Capillary, U-Bend)
✔
Sheets & Plates
✔
Coils & Strips
✔
Round Bars, Flat Bars, Hex Bars, Square Bars
✔
Pipe Fittings (Elbows, Tees, Reducers, Caps, Stub Ends)
✔
Flanges (Weld Neck, Slip-On, Blind, Socket Weld, Threaded)
✔
Fasteners (Bolts, Nuts, Screws, Washers, Studs)
✔
Custom Fabricated Components
We supply Nimonic Alloys materials in accordance with the most stringent industry standards:
Uses and Advantages
Superior resistance to heat creep and fatigue
Excellent oxidation and corrosion resistance at high temperatures
High strength-to-weight ratio
Good weldability and workability (especially Nimonic 263)
Long-term dimensional and structural stability
Applications of Nimonic Alloys
Aerospace & Jet Engines
Used in turbine blades, combustion chambers, and exhaust systems due to excellent heat resistance.
Gas Turbines & Power Generation
Nimonic components withstand long-term exposure to high temperatures and stress.
Nuclear Reactors
Ideal for components exposed to neutron irradiation and extreme heat.
Automotive & Motorsport
Applied in valves, manifolds, and turbocharger parts.
Industrial Heating
Used in furnace parts, heat shields, and high-temp tooling.
WHY CHOOSE US?
Nimonic Alloy Price per kg in India
Typical Range: ₹3,500 – ₹12,000 per kg
(Price varies by OD, wall thickness, form, and finish)
Contact us for exact quotation based on size and quantity.
FAQ's
What are Nimonic Alloys used for?
Nimonic Alloys are used in turbine blades, combustion chambers, exhaust systems, gas turbines, nuclear reactors, high performance automotive components, and industrial furnace parts requiring superior heat and corrosion resistance.
Which grades of Nimonic Alloys are available?
Popular grades include Nimonic 75, 80A, 90, 105, and 263, each engineered for specific mechanical strength, thermal performance, and structural stability under extreme conditions.
What are the key properties of Nimonic Alloys?
Nimonic Alloys offer excellent heat creep resistance, oxidation and corrosion resistance, high strength to weight ratio, dimensional stability, and good weldability, especially in Nimonic 263.
In what forms are Nimonic Alloys supplied?
They are supplied as seamless and welded pipes, tubes, sheets, plates, coils, strips, round/flat/hex/square bars, pipe fittings, flanges, fasteners, and custom engineered components.
Why choose MOKSH TUBES & FITTINGS for Nimonic Alloys?
We provide ISO 9001:2015 certified Nimonic products with wide inventory availability, custom fabrication, CNC machining, fast turnaround, competitive pricing, and global shipping with export compliance.
