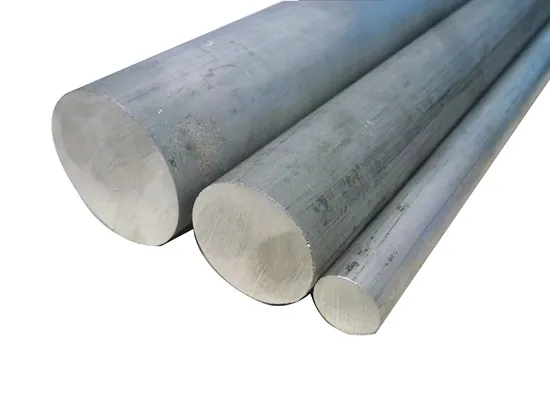

Aluminium HE30 | Product Overview
Introduction To Aluminium HE30
MOKSH TUBES & FITTINGS LLP is a manufacturer, supplier, exporter, importer, and stockist of Aluminium Alloy HE30 products including sheets, plates, bars, rods, and extrusions.
Aluminium HE30 is a high-strength aerospace-grade alloy, part of the 7000 series, primarily alloyed with zinc and magnesium. It offers excellent mechanical properties, including high tensile strength, good fatigue resistance, and moderate corrosion resistance. HE30 is commonly used in aerospace, defense, and other high-performance engineering applications where lightweight and strength are critical.
Download Alluminium Alloy HE 30 Datasheet
Get the complete Alluminium Alloy HE 30 datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Aluminium HE30 Specifications (HE30 / AA6082)
| Category | Details |
|---|---|
| Grade | HE30 / AA6082 |
| Type | Heat-treatable wrought aluminium alloy |
| Typical Chemical Composition | Zn 5.5–6.5%, Mg 2.0–3.0%, Cu 1.2–2.0% |
| Conditions | O, T4, T5, T6 |
| Heat Treatment | Solution Treatment + Artificial Aging |
| Testing | Tensile, Hardness, Chemical, UT (optional) |
| Certification | EN 10204 3.1 / 3.2 Available |
Chemical Composition – Aluminium Alloy HE30
| Element | Composition (%) |
|---|---|
| Zinc (Zn) | 5.5 – 6.5 |
| Magnesium (Mg) | 2.0 – 3.0 |
| Copper (Cu) | 1.2 – 2.0 |
| Chromium (Cr) | 0.18 – 0.28 |
| Iron (Fe) | 0.4 max |
| Silicon (Si) | 0.4 max |
| Manganese (Mn) | 0.3 max |
| Titanium (Ti) | 0.2 max |
| Aluminium (Al) | Balance |
Physical Properties – Aluminium HE30
| Property | Imperial | Metric |
|---|---|---|
| Density | 0.102 lb/in³ | 2.83 g/cm³ |
| Melting Range | 875 – 975 °F | 468 – 524 °C |
| Modulus of Elasticity | 10.2 × 10³ ksi | 70.3 GPa |
| Thermal Conductivity | — | 130 W/m·K |
| Electrical Conductivity | 33% IACS | — |
Heat Treatment – Aluminium HE30
| Heat Treatment Process | Temperature Range | Cooling / Procedure | Notes |
|---|---|---|---|
| Solution Heat Treatment | 515 – 530°C | Water quench | Required for T6 properties |
| Artificial Aging (T6) | 160 – 180°C | Air cool | Maximum strength & hardness |
| Annealing (O Temper) | 350 – 410°C | Furnace cool | Restores ductility |
| Stress Relieving | 150 – 200°C | Air cool | Reduces machining stresses |
Mechanical Properties – Aluminium HE30
| Property | Annealed | Hot Finished | Cold Drawn | Hot Rolled | Sheet |
|---|---|---|---|---|---|
| Tensile Strength (MPa) | 115 – 165 | 235 – 310 | 260 – 325 | 205 – 303 | 200 – 290 |
| Yield Strength (MPa) | 70 – 100 | 190 – 275 | 235 – 290 | 165 – 260 | 150 – 240 |
| Elongation (%) | 12 – 20 | 6 – 12 | 5 – 10 | 8 – 12 | 10 – 14 |
| Brinell Hardness | 45 – 60 HB | 80 – 95 HB | 85 – 100 HB | 70 – 90 HB | 65 – 85 HB |
| Rockwell Hardness | 25 – 35 B | 40 – 55 B | 45 – 60 B | 35 – 50 B | 35 – 50 B |
HE30-T6 offers excellent fatigue strength, making it ideal for long-term cyclic loading applications.
International Standards & Equivalent Grades – Aluminium HE30
| Standard | Equivalent |
|---|---|
| ASTM | B209, B211 |
| AMS | 4014, 4017 |
| EN | AW-6082 |
| ISO | 6361 |
| British Equivalent | HE30 |
Products in Aluminium Alloys
Aluminium HE30 is supplied in various forms such as:
✔
Seamless Pipes
✔
Welded Pipes (ERW & EFW)
✔
Tubes (Capillary, U-Bend)
✔
Sheets & Plates
✔
Coils & Strips
✔
Round Bars, Flat Bars, Hex Bars, Square Bars
✔
Pipe Fittings (Elbows, Tees, Reducers, Caps, Stub Ends)
✔
Flanges (Weld Neck, Slip-On, Blind, Socket Weld, Threaded)
✔
Fasteners (Bolts, Nuts, Screws, Washers, Studs)
✔
Custom Fabricated Components
We supply Aluminium HE30 materials in accordance with the most stringent industry standards:
Uses and Advantages
High strength combined with good fatigue resistance
Lightweight, reducing overall structural weight
Good machinability and surface finish
Can be anodized for enhanced corrosion resistance
Meets stringent aerospace and defense quality standards
Applications of Aluminium HE30
Aluminium HE30 is preferred in applications requiring high strength-to-weight ratios, particularly in aerospace and defense
Aerospace Components
Aircraft structural parts, fuselage panels, and wing skins.
Defense Industry
Missile components, armor plating, and military vehicles.
Sports Equipment
High-performance bicycle frames and sporting goods.
Automotive & Racing
Lightweight chassis parts and performance accessories.
WHY CHOOSE US?
Aluminium HE30 Price per kg in India
Typical Range: ₹350 – ₹650 per kg
(Price varies by OD, wall thickness, form, and finish)
Contact us for exact quotation based on size and quantity.
FAQ's
What is Aluminium Alloy HE30 used for?
Aluminium HE30 is an aerospace-grade aluminium alloy widely used in aircraft structures, defense equipment, automotive parts, and high performance sports gear. Its high strength to weight ratio makes it ideal for industries requiring both lightweight and durability.
What are the key properties of Aluminium HE30?
HE30 aluminium offers high tensile strength, excellent fatigue resistance, good machinability, and moderate corrosion resistance. It can also be anodized for improved surface protection, making it suitable for aerospace, defense, and automotive industries.
How strong is Aluminium HE30 compared to other aluminium alloys?
Aluminium HE30, part of the 7000 series alloys, is stronger than most 6000 series alloys like 6061 and 6082. With tensile strength ranging from 200–310 MPa, HE30 is specifically engineered for aerospace and defense applications where strength and performance are critical.
Can Aluminium HE30 be welded and machined?
Yes, Aluminium HE30 has good machinability, allowing it to be shaped into complex components. However, like many 7000 series alloys, its weldability is limited, and special care must be taken when welding to maintain mechanical properties.
Where can I buy Aluminium HE30 in India?
You can buy premium quality Aluminium HE30 sheets, plates, bars, rods, extrusions, and custom components from Moksh Tubes & Fittings LLP a trusted manufacturer, supplier, exporter, and stockist. They provide aerospace-grade certified materials with global delivery and competitive pricing.
