Product Overview

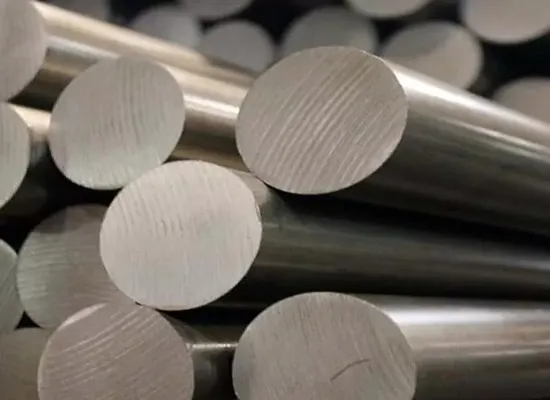

Introduction To Zirconium 705 / UNS R60705
MOKSH TUBES & FITTINGS LLP we specialize in manufacturing, supplying, exporting, importing, and stocking a wide range of Zirconium 705 (UNS R60705) products. Our comprehensive lineup includes Pipes & Tubes, Fittings, Flanges, Fasteners, Sheets, Plates, Coils, Wires, Bars, Welding Rods, and custom-built components—made for performance in demanding environments.
Zirconium 705 is a high-purity zirconium alloy noted for its remarkable resistance to strong acids, alkalis, and hot water environments. It combines excellent ductility, weldability, and mechanical strength, making it ideal for applications where corrosion resistance and material purity are critical.
Download Zicrnium 705 Datasheet
Get the complete Zicrnium 705 datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Specifications of Zirconium 705 (UNS R60705)
| Category | Details |
|---|---|
| Grade | Zirconium 705 / UNS R60705 |
| Type | High-Purity Zirconium Alloy |
| Standards | ASTM B551, ASTM B523, ASME SB-551 |
| Forms | Pipes, Tubes, Plates, Sheets, Coils, Rods, Bars, Wire, Fittings, Flanges, Fasteners |
| Testing | PMI, Mechanical, Chemical, Hardness |
| Certification | EN 10204 3.1 / 3.2 |
Chemical Composition of Zirconium 705 (UNS R60705)
| Element | Max. Composition (%) |
|---|---|
| Zirconium (Zr) | ≥ 99.05 |
| Hafnium (Hf) | ≤ 0.15 |
| Oxygen (O) | ≤ 0.17 |
| Nitrogen (N) | ≤ 0.025 |
| Hydrogen (H) | ≤ 0.005 |
| Carbon (C) | ≤ 0.03 |
| Iron (Fe) | ≤ 0.15 |
| Tin (Sn) | ≤ 0.03 |
Zirconium 705 performance comes from controlled alloying and extremely low oxygen, nitrogen, and hydrogen levels.
Technical Composition of Zirconium 705
Physical Properties of Zirconium 705
| Property | Imperial | Metric |
|---|---|---|
| Density | 0.236 lb/in³ | 6.51 g/cm³ |
| Melting Range | 3370 – 3390 °F | 1855 – 1865 °C |
| Specific Heat | 0.064 Btu/lb·°F | 270 J/kg·°C |
| Magnetic Permeability (200 Oe) | ~1.01 | — |
| Magnetic Character | Non-magnetic | Non-magnetic |
Heat Treatment of Zirconium 705
| Process | Temperature Range | Purpose |
|---|---|---|
| Stress Relieving | 540 – 650 °C | Remove residual stresses |
| Annealing | 700 – 900 °C | Improve ductility & corrosion resistance |
| Vacuum Annealing | — | Ultra-high purity applications |
| Recrystallization Annealing | 850 – 950 °C | Restore properties after cold work |
📌 Proper argon shielding is critical during heat treatment to prevent contamination.
Mechanical Properties of Zirconium 705
| Product Form | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| Tubing (Annealed) | 793 | 469 | 34 |
| Tubing (Cold Drawn) | 1035 | 931 | 14 |
| Bar (Annealed) | 724 | 345 | 42 |
| Plate (Annealed) | 690 | 358 | 42 |
| Sheet (Annealed) | 793 | 448 | 37 |
Zirconium 705 delivers exceptional strength while maintaining ductility — rare among reactive metals.
Products in Zirconium 705
Zirconium 705 is stocked or fabricated to your specifications in the following formats:
✔
Seamless Pipes
✔
Welded Pipes (ERW & EFW)
✔
Tubes (Capillary, U-Bend)
✔
Sheets & Plates
✔
Coils & Strips
✔
Round Bars, Flat Bars, Hex Bars, Square Bars
✔
Pipe Fittings (Elbows, Tees, Reducers, Caps, Stub Ends)
✔
Flanges (Weld Neck, Slip-On, Blind, Socket Weld, Threaded)
✔
Fasteners (Bolts, Nuts, Screws, Washers, Studs)
✔
Custom Fabricated Components
Zirconium 705 products are produced to the following global standards:
Uses and Advantages
Superior Corrosion Resistance – Stunning performance in acid and caustic environments
High Strength + Flexibility – Outstanding mechanical properties at room and moderate heat
Highly Fabricable – Easily welded, formed, and machined
Ultra‑Clean Purity – Ideal for pharmaceutical, semiconductor, and biotech systems
Non‑Magnetic & Biocompatible – Great for medical and cleanroom processes
Low Neutron Cross‑Section – Preferred in nuclear applications
Applications of Zirconium 705
Zirconium 705 is the go-to alloy when reliability and purity outweigh all other requirements:
Chemical Processing
Reactor vessels, piping systems, heat exchangers, and pressure chambers in harsh chemical environments.
Nuclear Energy
Fuel cladding, control-rod sleeves, cooling channels, and structural reactor components.
Pharmaceutical & Biotech
High-purity process piping, sterile components, and cleanroom systems requiring contamination control.
Marine & Desalination
Seawater cooling lines, desalination plant hardware, and anti-corrosion marine structures.
Medical & Healthcare
Implants, surgical instruments, sterilization vessels—biocompatible and corrosion-proof.
Semiconductor Manufacturing
Ultra-pure wet-chemistry lines and chemical delivery systems.
WHY CHOOSE US?
Zirconium 705 Price (India)
Typical Range: ₹6,000 – ₹12,500 per kg
(Price varies by OD, wall thickness, form, and finish)
Contact us for exact quotation based on size and quantity.
FAQ's
What is Zirconium 705 and where is it used?
Zirconium 705 is a high purity zirconium alloy known for exceptional corrosion resistance in strong acids, alkalis, and hot water. It is widely applied in chemical processing, nuclear reactors, pharmaceuticals, marine systems, and medical devices where purity, durability, and mechanical strength are critical.
What are the key properties of Zirconium 705?
Zirconium 705 provides high tensile and yield strength, excellent ductility, outstanding weldability, non magnetic behavior, and low neutron absorption. These characteristics make it ideal for nuclear, medical, and high-purity industrial applications.
Which Zirconium 705 products are available?
MOKSH TUBES & FITTINGS LLP supplies Zirconium 705 in a variety of forms including seamless and welded pipes, tubes, sheets, plates, coils, bars, flanges, fittings, fasteners, welding rods, and custom-fabricated components tailored to your project requirements.
How resistant is Zirconium 705 to corrosion?
Zirconium 705 exhibits superior corrosion resistance in strong acids such as nitric and sulfuric, caustic solutions, seawater, and high purity water systems. Its chemical stability ensures reliability for long term industrial and marine applications.
Why choose MOKSH TUBES & FITTINGS LLP for Zirconium 705?
We specialize in high-purity zirconium alloys with ASTM/ASME certified manufacturing, access to globally sourced raw materials, and custom fabrication solutions. Our Zirconium 705 products ensure consistent quality, traceability, and dependable supply for demanding industrial projects.
blogs
Why Zirconium Is an Underrated...
In 2025, global industries are facing tougher challenges than ever before — higher temperatures,...

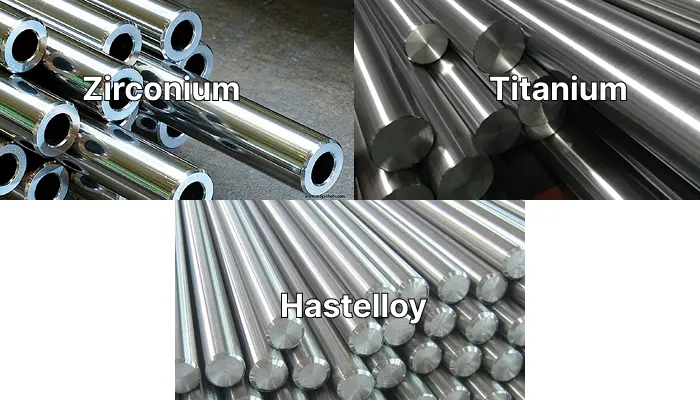

Zirconium vs Titanium vs Haste...
