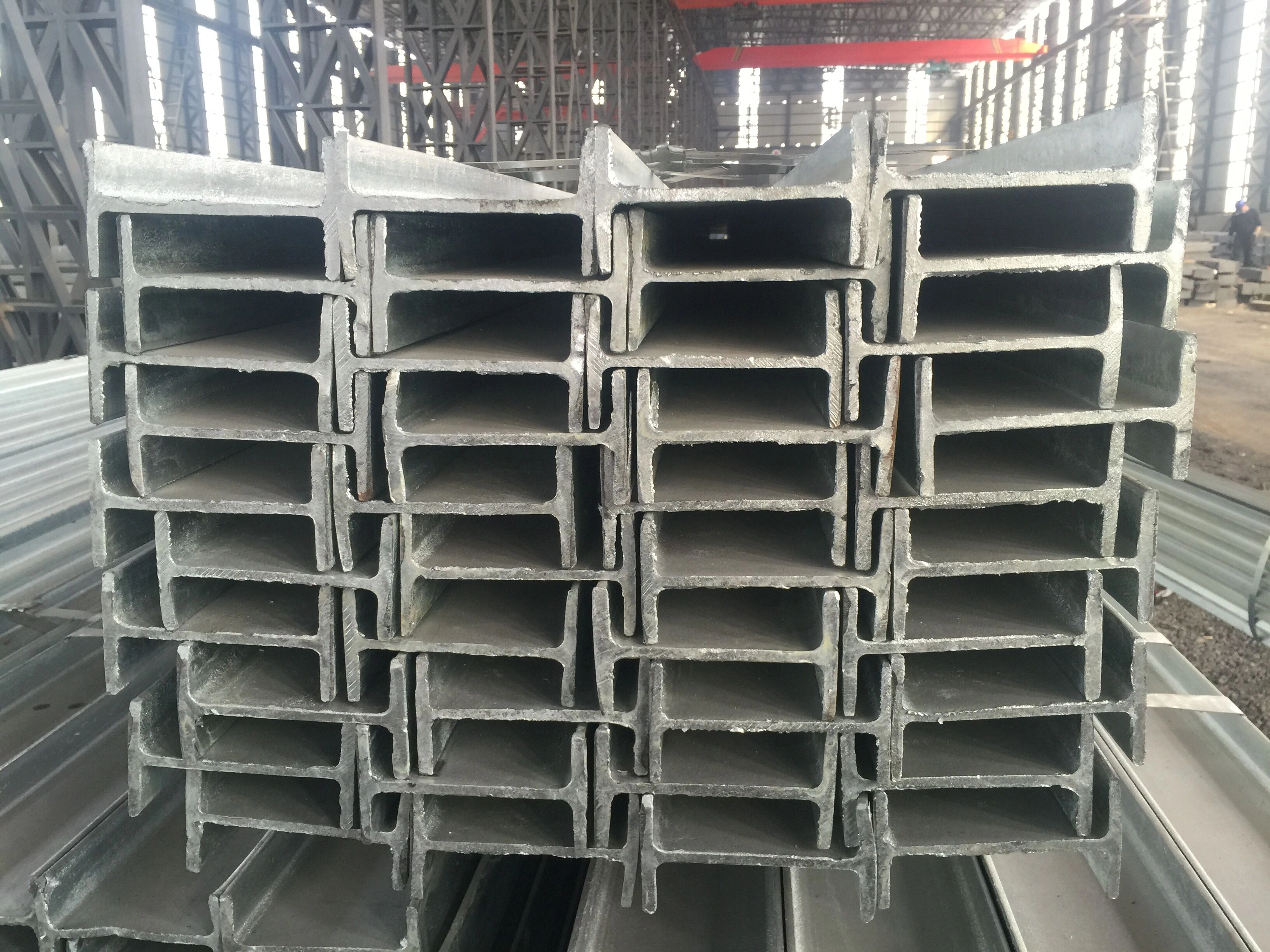

European Structural Beams
European Structural Beams are structural steel members primarily used for load-bearing, framing and supporting applications in buildings, industrial facilities, warehouses, infrastructure and engineered steel structures.
Common European beam profiles include:
- IPE Beams – I-shaped European beams with relatively narrow flanges.
- HEA Beams – Wide-flange H-shaped structural sections.
- HEB Beams – Heavier H-shaped sections designed for applications requiring greater section capacity.
- Other EN Beam Profiles – As specified by the applicable European standard and project requirements.
The appropriate beam section is selected according to span, loading conditions, section properties, structural design, connection requirements, material grade and project specifications.
European Structural Beams are specified according to applicable European Standards (EN). Common structural steel grades may include S235JR, S275JR, S355JR and S355J2, subject to the applicable material specification and project requirements.
At Moksh Tubes & Fittings LLP, we support European Structural Beam requirements based on customer drawings, technical specifications and project requirements. Customers can specify the required beam designation, section size, dimensions, material grade, length and quantity.
European Structural Beams can also be used together with European Structural Angles, Channels, Columns and Hollow Sections to create complete steel frameworks and fabricated structural assemblies.
For an accurate quotation, customers can provide their required beam designation, section dimensions, grade, length and quantity, along with project drawings or technical documentation where required.
Download European Structural Beams Datasheet
Get the complete European Structural Beams datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Specifications
European Structural Beams are available in different beam profiles, section depths, flange widths, web thicknesses, flange thicknesses, lengths and structural steel grades according to applicable European Standards (EN) and project specifications.
| Category | Details |
|---|---|
| Product | European Structural Beams |
| Profiles | IPE / HEA / HEB & Other Applicable EN Sections |
| Profile Type | I-Shaped / H-Shaped Structural Sections |
| Material | Structural Steel / Carbon Steel |
| Standards | Applicable European Standards (EN) |
| Grades | S235JR / S275JR / S355JR / S355J2 & Other Applicable Grades |
| Section Depth | Various Standard Sizes |
| Flange Width | As per Selected Beam Section |
| Web Thickness | As per Selected Section |
| Flange Thickness | As per Selected Section |
| Length | Standard Lengths / Cut-to-Length |
| Surface | Mill Finish / As Specified |
| Supply Form | Individual Sections / Bundles |
| Customization | Section, Size, Grade, Length & Quantity as Required |
| Applications | Construction, Infrastructure, Industrial, Fabrication & Engineering |
IPE Beams
IPE Beams are European I-shaped structural sections with relatively narrow flanges. They are commonly used for beams, floor structures, roof structures, frames and supporting members according to engineering design.
HEA Beams
HEA Beams are wide-flange H-shaped structural sections used for structural framing and load-bearing applications where the required section properties meet the project requirements.
HEB Beams
HEB Beams are heavier H-shaped European structural sections and can be considered for applications requiring greater section capacity and rigidity according to engineering design.
EN Standards
European Structural Beams should be specified according to the applicable EN standard and project specification. The relevant standard depends on the beam profile, dimensions, material grade and intended application.
Beam Dimensions
European Structural Beams are generally identified by their designation and section dimensions, including:
- Overall Section Depth
- Flange Width
- Web Thickness
- Flange Thickness
- Cross-Sectional Area
- Section Weight
- Required Length
Supply Requirements
For an accurate quotation, customers should provide:
- Beam Type / Designation
- Section Depth & Flange Width
- Web & Flange Thickness
- Material Grade
- Required Length
- Quantity
- Applicable EN Standard
- Project Specification, if applicable
Moksh Tubes & Fittings LLP can support standard and project-based requirements for European Structural Beams, subject to product availability and agreed specifications.
Size & Weight Chart
European Structural Beams – EN Standard I Beams & H Beams. The European rolled-section dimensions and masses are standardized under EN 10365.
IPE – European I Beams
| Section | Height h (mm) | Width b (mm) | Web Thickness tw (mm) | Flange Thickness tf (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| IPE 80 | 80 | 46 | 3.8 | 5.2 | 6.0 |
| IPE 100 | 100 | 55 | 4.1 | 5.7 | 8.1 |
| IPE 120 | 120 | 64 | 4.4 | 6.3 | 10.4 |
| IPE 140 | 140 | 73 | 4.7 | 6.9 | 12.9 |
| IPE 160 | 160 | 82 | 5.0 | 7.4 | 15.8 |
| IPE 180 | 180 | 91 | 5.3 | 8.0 | 18.8 |
| IPE 200 | 200 | 100 | 5.6 | 8.5 | 22.4 |
| IPE 220 | 220 | 110 | 5.9 | 9.2 | 26.2 |
| IPE 240 | 240 | 120 | 6.2 | 9.8 | 30.7 |
| IPE 270 | 270 | 135 | 6.6 | 10.2 | 36.1 |
| IPE 300 | 300 | 150 | 7.1 | 10.7 | 42.2 |
| IPE 330 | 330 | 160 | 7.5 | 11.5 | 49.1 |
| IPE 360 | 360 | 170 | 8.0 | 12.7 | 57.1 |
| IPE 400 | 400 | 180 | 8.6 | 13.5 | 66.3 |
| IPE 450 | 450 | 190 | 9.4 | 14.6 | 77.6 |
| IPE 500 | 500 | 200 | 10.2 | 16.0 | 90.7 |
| IPE 550 | 550 | 210 | 11.1 | 17.2 | 106.0 |
| IPE 600 | 600 | 220 | 12.0 | 19.0 | 122.0 |
| IPE 750 | 750 | 270 | 13.5 | 19.0 | 137.0 |
| IPE 800 | 800 | 300 | 15.0 | 21.0 | 155.0 |
HEA – European Standard Wide Flange Beams
| Section | Height h (mm) | Width b (mm) | Web Thickness tw (mm) | Flange Thickness tf (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| HEA 100 | 96 | 100 | 5.0 | 8.0 | 16.7 |
| HEA 120 | 114 | 120 | 5.0 | 8.0 | 19.9 |
| HEA 140 | 133 | 140 | 5.5 | 8.5 | 24.7 |
| HEA 160 | 152 | 160 | 6.0 | 9.0 | 30.4 |
| HEA 180 | 171 | 180 | 6.0 | 9.5 | 35.5 |
| HEA 200 | 190 | 200 | 6.5 | 10.0 | 42.3 |
| HEA 220 | 210 | 220 | 7.0 | 11.0 | 50.5 |
| HEA 240 | 230 | 240 | 7.5 | 12.0 | 60.3 |
| HEA 260 | 250 | 260 | 7.5 | 12.5 | 68.2 |
| HEA 280 | 270 | 280 | 8.0 | 13.0 | 76.4 |
| HEA 300 | 290 | 300 | 8.5 | 14.0 | 88.3 |
| HEA 320 | 310 | 300 | 9.0 | 15.5 | 97.6 |
| HEA 340 | 330 | 300 | 9.5 | 16.5 | 105.0 |
| HEA 360 | 350 | 300 | 10.0 | 17.5 | 112.0 |
| HEA 400 | 390 | 300 | 11.0 | 19.0 | 125.0 |
| HEA 450 | 440 | 300 | 11.5 | 21.0 | 140.0 |
| HEA 500 | 490 | 300 | 12.0 | 23.0 | 155.0 |
| HEA 550 | 540 | 300 | 12.5 | 24.0 | 166.0 |
| HEA 600 | 590 | 300 | 13.0 | 25.0 | 178.0 |
| HEA 650 | 640 | 300 | 13.5 | 26.0 | 190.0 |
| HEA 700 | 690 | 300 | 14.5 | 27.0 | 204.0 |
| HEA 800 | 790 | 300 | 15.0 | 28.0 | 224.0 |
| HEA 900 | 890 | 300 | 16.0 | 30.0 | 249.0 |
| HEA 1000 | 990 | 300 | 16.5 | 31.0 | 272.0 |
HEB – European Heavy H Beams
| Section | Height h (mm) | Width b (mm) | Web Thickness tw (mm) | Flange Thickness tf (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| HEB 100 | 100 | 100 | 6.0 | 10.0 | 20.4 |
| HEB 120 | 120 | 120 | 6.5 | 11.0 | 26.7 |
| HEB 140 | 140 | 140 | 7.0 | 12.0 | 33.7 |
| HEB 160 | 160 | 160 | 8.0 | 13.0 | 42.6 |
| HEB 180 | 180 | 180 | 8.5 | 14.0 | 51.2 |
| HEB 200 | 200 | 200 | 9.0 | 15.0 | 61.3 |
| HEB 220 | 220 | 220 | 9.5 | 16.0 | 71.5 |
| HEB 240 | 240 | 240 | 10.0 | 17.0 | 83.2 |
| HEB 260 | 260 | 260 | 10.0 | 17.5 | 93.0 |
| HEB 280 | 280 | 280 | 10.5 | 18.0 | 103.0 |
| HEB 300 | 300 | 300 | 11.0 | 19.0 | 117.0 |
| HEB 320 | 320 | 300 | 11.5 | 20.5 | 127.0 |
| HEB 340 | 340 | 300 | 12.0 | 21.5 | 134.0 |
| HEB 360 | 360 | 300 | 12.5 | 22.5 | 142.0 |
| HEB 400 | 400 | 300 | 13.5 | 24.0 | 155.0 |
| HEB 450 | 450 | 300 | 14.0 | 26.0 | 171.0 |
| HEB 500 | 500 | 300 | 15.5 | 28.0 | 187.0 |
| HEB 550 | 550 | 300 | 15.0 | 29.0 | 199.0 |
| HEB 600 | 600 | 300 | 17.5 | 30.0 | 212.0 |
| HEB 650 | 650 | 300 | 18.0 | 29.0 | 225.0 |
| HEB 700 | 700 | 300 | 18.5 | 32.0 | 241.0 |
| HEB 800 | 800 | 300 | 19.0 | 33.0 | 262.0 |
| HEB 900 | 900 | 300 | 21.0 | 35.0 | 291.0 |
| HEB 1000 | 1000 | 300 | 21.0 | 36.0 | 314.0 |
HEM – European Extra Heavy H Beams
| Section | Height h (mm) | Width b (mm) | Web Thickness tw (mm) | Flange Thickness tf (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| HEM 100 | 120 | 106 | 12.0 | 20.0 | 41.8 |
| HEM 120 | 140 | 126 | 12.5 | 21.0 | 52.1 |
| HEM 140 | 160 | 146 | 13.0 | 22.0 | 63.2 |
| HEM 160 | 180 | 166 | 14.0 | 23.0 | 76.2 |
| HEM 180 | 200 | 186 | 14.5 | 24.0 | 88.9 |
| HEM 200 | 220 | 206 | 15.0 | 25.0 | 103.0 |
| HEM 220 | 240 | 226 | 15.5 | 26.0 | 117.0 |
| HEM 240 | 270 | 248 | 18.0 | 32.0 | 157.0 |
| HEM 260 | 290 | 268 | 18.0 | 32.5 | 172.0 |
| HEM 280 | 310 | 288 | 18.5 | 33.0 | 189.0 |
| HEM 300 | 340 | 310 | 21.0 | 39.0 | 238.0 |
| HEM 320 | 359 | 309 | 21.0 | 40.0 | 245.0 |
| HEM 360 | 377 | 309 | 21.0 | 40.0 | 256.0 |
| HEM 400 | 432 | 307 | 21.0 | 40.0 | 268.0 |
| HEM 450 | 478 | 307 | 21.0 | 40.0 | 292.0 |
| HEM 500 | 524 | 306 | 21.0 | 40.0 | 314.0 |
| HEM 550 | 572 | 306 | 21.0 | 40.0 | 338.0 |
| HEM 600 | 620 | 310 | 21.0 | 40.0 | 366.0 |
| HEM 650 | 668 | 310 | 21.0 | 40.0 | 386.0 |
| HEM 700 | 716 | 310 | 21.0 | 40.0 | 421.0 |
| HEM 800 | 814 | 317 | 21.0 | 40.0 | 460.0 |
| HEM 900 | 910 | 318 | 21.0 | 40.0 | 499.0 |
| HEM 1000 | 990 | 320 | 21.0 | 40.0 | 541.0 |
Grades Available
European Structural Beams can be supplied in different structural steel grades according to applicable European Standards (EN) and project specifications. The selected grade depends on the required mechanical properties, structural loading, beam section, fabrication requirements and engineering design.
At Moksh Tubes & Fittings LLP, European Structural Beams can be sourced according to the customer's specified beam designation, grade, dimensions, thickness, length, quantity and applicable EN requirements, subject to product availability.
Common EN Structural Steel Grades
| Grade / Specification | Material Type | Typical Requirement |
|---|---|---|
| S235JR | Non-Alloy Structural Steel | General structural and fabrication applications |
| S275JR | Non-Alloy Structural Steel | Structural applications requiring higher strength |
| S355JR | Non-Alloy Structural Steel | Higher-strength structural applications |
| S355J2 | Non-Alloy Structural Steel | Structural applications requiring specified impact properties |
| Other EN Grades | Structural Steel | As per project specification and requirement |
S235JR
S235JR is a commonly specified European structural steel grade used for general construction, fabrication and engineering applications where the specified material properties meet the project requirements.
S275JR
S275JR is a structural steel grade with higher specified yield strength than S235-grade steel and can be considered for structural beam applications according to the applicable EN specification and project requirements.
S355JR
S355JR is a higher-strength structural steel grade used for structural applications where increased specified strength is required, subject to the applicable EN specification and engineering design.
S355J2
S355J2 is a structural steel grade with specified impact properties and can be considered for applications where the project specification requires the relevant mechanical and impact requirements.
Grade Selection
The appropriate grade for a European Structural Beam should be selected based on:
- Required mechanical properties
- Structural loading
- Beam span
- Section dimensions
- Structural design
- Fabrication requirements
- Welding requirements
- Applicable EN standard
- Project specification
- Required impact properties, where applicable
Customers should specify the required EN grade, beam designation, section dimensions, length and quantity when submitting an enquiry.
Material Documentation
Where required and agreed at the time of order, applicable material test certificates and supporting documentation can be provided according to the purchase order and project requirements.
Applications
European Structural Beams are widely used in construction, industrial structures, infrastructure, bridges, warehouses, fabrication and engineering projects where strong load-bearing and structural framing members are required.
Building & Construction
European Structural Beams are commonly used in building projects for steel structural frameworks, load-bearing members, floor-supporting structures, roof-support systems, structural frames, and commercial and industrial buildings.
Industrial Structures
Structural beams are widely used in industrial facilities where strong steel members are required for supporting structures. Applications include factory buildings, manufacturing facilities, industrial sheds, equipment support structures, heavy-duty platforms, and steel frameworks.
Warehouses & Storage Facilities
European Structural Beams can be incorporated into warehouse and storage structures for main structural frames, roof structures, supporting members, industrial storage buildings, and steel building frameworks.
Infrastructure Projects
European Structural Beams can be used in infrastructure and civil engineering projects where the specified EN section and material grade meet the project requirements. Applications include infrastructure frameworks, elevated structures, supporting structures, platforms, and engineering structures.
Bridges & Structural Frameworks
Depending on the engineering design and applicable specifications, European Structural Beams can be used in bridge-related structures and supporting steel frameworks where the required beam section is specified.
Heavy Steel Fabrication
European Structural Beams are suitable for heavy fabrication requirements, including structural frames, platforms, support structures, industrial assemblies, and heavy-duty fabricated structures.
Machinery & Equipment Structures
Structural beams can be incorporated into support frameworks for industrial machinery, equipment and heavy installations, subject to the required structural design and section properties.
General Engineering Applications
European Structural Beams are also used in engineering and fabrication projects requiring rigid, load-bearing structural steel sections.
The appropriate beam designation, dimensions, grade and section should always be selected according to the structural design, loading conditions, span, applicable EN standard and project specifications.
Uses of European Structural Beams
European Structural Beams are versatile load-bearing steel sections used for structural framing, support and fabrication across construction, industrial, infrastructure and engineering applications.
Used for main structural frameworks in commercial, industrial and building construction projects.
Suitable for load-bearing beams and supporting members where European beam sections are specified.
Used in warehouses and industrial sheds for roof and structural frameworks.
Suitable for floor-supporting structures according to engineering design and loading requirements.
Used for roof structures and framing systems in steel buildings and industrial facilities.
Suitable for industrial platforms and elevated structures where the selected beam section meets the required structural criteria.
Used in infrastructure and civil engineering projects requiring EN-specified structural steel sections.
Suitable for bridge-related structures and supporting steel frameworks where specified by the project design.
Used for heavy steel fabrication, including structural frames, platforms and support assemblies.
Suitable for machinery and equipment support structures in industrial facilities.
Can be combined with European Structural Angles, Channels, Columns and Hollow Sections to create complete steel frameworks.
Available in profiles such as IPE, HEA and HEB, providing flexibility for different structural requirements.
The appropriate beam designation, section dimensions, grade and length should be selected according to the structural design, loading conditions, span requirements, section properties, applicable EN standard and project specifications.
Advantages of European Structural Beams
European Structural Beams provide a versatile structural steel solution for construction, industrial structures, infrastructure, bridges, warehouses, fabrication and engineering applications.
High Load-Bearing Capability
Suitable for structural applications requiring strong load-bearing members when the appropriate section is selected according to engineering design.
Structural Strength & Rigidity
Properly selected beam sections provide the required strength and rigidity for structural frameworks.
IPE, HEA & HEB Options
Different European beam profiles provide flexibility for various structural and load-bearing requirements.
Wide Application Range
Suitable for buildings, warehouses, industrial structures, infrastructure, platforms and heavy fabrication.
EN Grade Options
Grades such as S235JR, S275JR, S355JR and S355J2 can be considered according to applicable EN specifications and project requirements.
Standard-Based Selection
Beam sections can be selected according to applicable EN standards, section dimensions, material grade and engineering requirements.
Different Section Sizes
Available in different section depths, flange widths and thicknesses according to applicable European section standards and product range.
Design Flexibility
IPE, HEA and HEB profiles allow engineers to select suitable sections according to span, loading conditions and structural configuration.
Suitable for Heavy Structures
Appropriate beam sections can be considered for industrial buildings, warehouses, infrastructure and other heavy structural applications.
Fabrication Friendly
Suitable for common fabrication operations such as cutting, drilling, welding and assembly, subject to applicable material and project specifications.
Project-Based Supply
Requirements can be specified according to beam designation, dimensions, grade, length and quantity.
Compatible with Other European Sections
Can be used with European Structural Angles, Channels, Columns and Hollow Sections to create complete steel frameworks.
Domestic & International Applications
Suitable for projects requiring structural steel beams specified to applicable EN requirements.
The appropriate beam designation and section should always be selected according to the structural design, loading conditions, span, section properties, applicable EN standard and project specifications.
Mechanical Properties – European Structural Beams
(Typical minimum values according to EN 10025-2; properties vary with material thickness.)
| Standard / Grade | S235JR | S275JR | S355JR | S355J2 |
|---|---|---|---|---|
| Tensile Strength (MPa), Min. | 360 | 410 | 470 | 470 |
| Yield Strength (MPa), ≤16 mm | 235 | 275 | 355 | 355 |
| Elongation (%), Min. | 26 | 23 | 22 | 22 |
The tensile-strength ranges for common thicknesses are approximately 360–510 MPa for S235JR, 410–560 MPa for S275JR, and 470–630 MPa for S355JR/S355J2.
Why Choose Moksh Tubes & Fittings LLP?
Moksh Tubes & Fittings LLP supports customers looking for European Structural Beams for construction, industrial, infrastructure, fabrication and engineering requirements. Our supply approach is based on the customer's required beam designation, dimensions, grade, length, quantity and applicable EN specifications.
FAQ – European Structural Beams
What are European Structural Beams?
European Structural Beams are load-bearing structural steel sections manufactured and specified according to applicable European Standards (EN). They are widely used in construction, industrial structures, infrastructure, warehouses and engineering projects.
What types of European Structural Beams are available?
Common European beam profiles include IPE, HEA and HEB, along with other applicable I- and H-shaped structural sections.
What are IPE Beams used for?
IPE Beams are commonly used for structural framing, floor structures, roof structures, supporting members and general load-bearing applications where the selected section meets the engineering requirements.
What are HEA and HEB Beams used for?
HEA and HEB Beams are wide-flange H-shaped structural sections used for load-bearing frameworks, columns, industrial structures and other applications requiring suitable section capacity and rigidity.
Which standards apply to European Structural Beams?
European Structural Beams can be specified according to applicable European Standards (EN) and the requirements stated in the project specification.
Which EN grades are available?
Grades such as S235JR, S275JR, S355JR and S355J2 may be considered according to the applicable EN specification and project requirements. Exact availability should be confirmed at the time of enquiry.
What sizes of European Structural Beams are available?
European Structural Beams are available in different section depths, flange widths, web thicknesses and flange thicknesses. Actual availability depends on the applicable EN section tables and Moksh Tubes & Fittings LLP's current product range.
Can European Structural Beams be supplied in custom lengths?
Yes. Standard and cut-to-length requirements can be considered depending on product availability and customer specifications.
How do I select the right European Structural Beam?
Selection should consider the beam designation, span, loading conditions, section properties, dimensions, material grade, connection requirements and applicable EN standards.
Can Moksh Tubes & Fittings LLP supply European Structural Beams in bulk?
Yes. Moksh Tubes & Fittings LLP can support bulk and project-based requirements, subject to product availability and agreed specifications.
What information is required for a quotation?
Customers should provide the beam designation, section dimensions, EN grade, required length and quantity. Project drawings or technical specifications can also be shared.
Can European Structural Beams be used with other European structural sections?
Yes. They can be used with European Structural Angles, Channels, Columns and Hollow Sections to create complete steel frameworks and fabricated assemblies.
Does Moksh Tubes & Fittings LLP support international enquiries?
Yes. International enquiries for European Structural Beams can be discussed based on the required EN specification, beam section, dimensions, quantity and delivery requirements.
Request a Quote
Looking for European Structural Beams for your construction, industrial, infrastructure, bridge or fabrication project?
Contact Moksh Tubes & Fittings LLP for European Structural Beam requirements based on your required beam designation, section dimensions, EN grade, length and quantity.
Share your project specifications, drawings or material requirements with our team to discuss the suitable European Structural Beams for your application.
📞 Contact Moksh Tubes & Fittings LLP at +91 97695 84950 for product availability, technical specifications and quotation enquiries.
