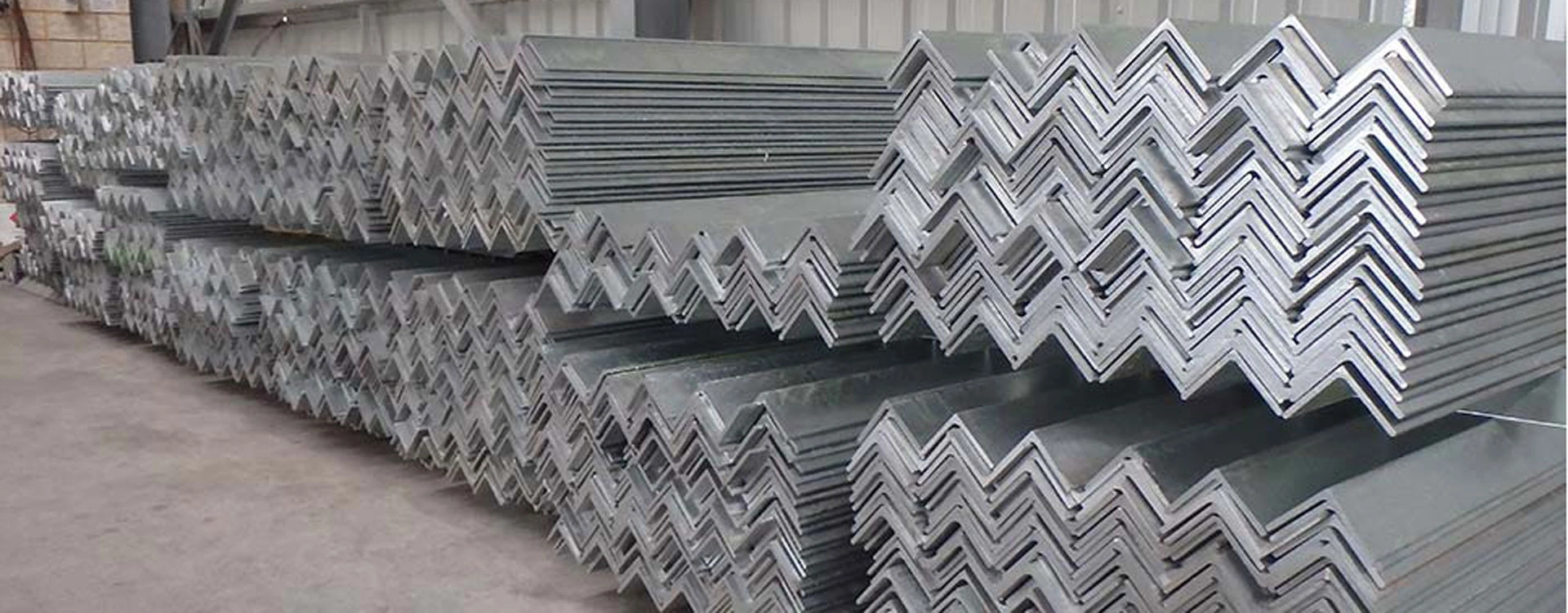

Indian Structural Angles

Indian Structural Angles are L-shaped structural steel sections designed for use in a wide range of construction, fabrication and engineering applications. Their simple and versatile profile makes them suitable for structural frames, bracing systems, trusses, supports, towers, platforms, brackets and fabricated assemblies.

Structural angles are primarily available in two configurations: Equal Structural Angles, where both legs have the same width, and Unequal Structural Angles, where the two legs have different widths. The selection of the appropriate profile depends on the structural design, required dimensions, loading conditions and connection requirements.

At Moksh Tubes & Fittings LLP, we cater to requirements for Indian Structural Angles based on specified size, thickness, grade, length, quantity and applicable standards. These profiles can be considered for both standard procurement and project-based structural steel requirements.

Indian Structural Angles are valued for their practical fabrication characteristics and suitability for applications requiring structural support, reinforcement, framing and connections. They can be used in combination with other structural steel sections to create reliable and efficient fabricated structures.

For specific projects, customers can provide their required angle dimensions, material grade, length, quantity and technical specifications so that the appropriate product requirement can be evaluated.

Specifications

Indian Structural Angles are supplied in equal and unequal angle profiles with dimensions, thicknesses, lengths and material grades selected according to the applicable Indian Standard and project requirements.

Category	Details
Product	Indian Structural Angles
Types	Equal Angles & Unequal Angles
Profile	L-Shaped Structural Section
Material	Structural Steel / Carbon Steel
Standards	Applicable Indian Standards / Project Specifications
Grades	As per applicable material specification
Leg Dimensions	Various standard sizes
Thickness	As per selected angle size and specification
Length	Standard Lengths / Cut-to-Length
Surface	Mill Finish / As Specified
Supply Form	Individual Sections / Bundles
Customization	Size, thickness, length and grade as required
Applications	Construction, Fabrication, Infrastructure, Industrial & Engineering Applications

Size & Weight Chart

For this page, the correct standard is IS 808:2021, which classifies structural angles into Indian Standard Equal Leg Angles (ISA) and Indian Standard Unequal Leg Angles (ISA). IS 808:2021 covers nominal dimensions and mass of hot-rolled angle sections.

IS Equal Angles – ISA Size & Weight Chart

Section	Size (A × B × t) mm	Thickness (mm)	Weight (kg/m)
ISA 20×20×3	20 × 20 × 3	3	0.90
ISA 20×20×4	20 × 20 × 4	4	1.14
ISA 25×25×3	25 × 25 × 3	3	1.14
ISA 25×25×4	25 × 25 × 4	4	1.49
ISA 25×25×5	25 × 25 × 5	5	1.80
ISA 30×30×3	30 × 30 × 3	3	1.38
ISA 30×30×4	30 × 30 × 4	4	1.80
ISA 30×30×5	30 × 30 × 5	5	2.29
ISA 35×35×3	35 × 35 × 3	3	1.62
ISA 35×35×4	35 × 35 × 4	4	2.11
ISA 35×35×5	35 × 35 × 5	5	2.59
ISA 35×35×6	35 × 35 × 6	6	3.06
ISA 40×40×3	40 × 40 × 3	3	1.80
ISA 40×40×4	40 × 40 × 4	4	2.29
ISA 40×40×5	40 × 40 × 5	5	2.80
ISA 40×40×6	40 × 40 × 6	6	3.30
ISA 45×45×3	45 × 45 × 3	3	2.10
ISA 45×45×4	45 × 45 × 4	4	2.75
ISA 45×45×5	45 × 45 × 5	5	3.40
ISA 45×45×6	45 × 45 × 6	6	4.01
ISA 50×50×3	50 × 50 × 3	3	2.34
ISA 50×50×4	50 × 50 × 4	4	3.08
ISA 50×50×5	50 × 50 × 5	5	3.79
ISA 50×50×6	50 × 50 × 6	6	4.49
ISA 55×55×4	55 × 55 × 4	4	3.40
ISA 55×55×5	55 × 55 × 5	5	4.19
ISA 55×55×6	55 × 55 × 6	6	4.97
ISA 55×55×8	55 × 55 × 8	8	6.48
ISA 60×60×4	60 × 60 × 4	4	3.71
ISA 60×60×5	60 × 60 × 5	5	4.58
ISA 60×60×6	60 × 60 × 6	6	5.44
ISA 60×60×8	60 × 60 × 8	8	7.10
ISA 65×65×5	65 × 65 × 5	5	5.13
ISA 65×65×6	65 × 65 × 6	6	6.34
ISA 65×65×8	65 × 65 × 8	8	8.25
ISA 65×65×10	65 × 65 × 10	10	9.85
ISA 70×70×5	70 × 70 × 5	5	5.53
ISA 70×70×6	70 × 70 × 6	6	6.66
ISA 70×70×8	70 × 70 × 8	8	8.76
ISA 70×70×10	70 × 70 × 10	10	10.90
ISA 75×75×5	75 × 75 × 5	5	5.71
ISA 75×75×6	75 × 75 × 6	6	6.80
ISA 75×75×8	75 × 75 × 8	8	8.93
ISA 75×75×10	75 × 75 × 10	10	11.00
ISA 80×80×6	80 × 80 × 6	6	7.29
ISA 80×80×8	80 × 80 × 8	8	9.59
ISA 80×80×10	80 × 80 × 10	10	11.80
ISA 80×80×12	80 × 80 × 12	12	14.00
ISA 90×90×6	90 × 90 × 6	6	8.25
ISA 90×90×8	90 × 90 × 8	8	10.90
ISA 90×90×10	90 × 90 × 10	10	13.40
ISA 90×90×12	90 × 90 × 12	12	15.90
ISA 100×100×6	100 × 100 × 6	6	9.19
ISA 100×100×8	100 × 100 × 8	8	12.10
ISA 100×100×10	100 × 100 × 10	10	14.90
ISA 100×100×12	100 × 100 × 12	12	17.70
ISA 110×110×8	110 × 110 × 8	8	13.40
ISA 110×110×10	110 × 110 × 10	10	16.50
ISA 110×110×12	110 × 110 × 12	12	19.60
ISA 110×110×15	110 × 110 × 15	15	24.20
ISA 130×130×8	130 × 130 × 8	8	15.90
ISA 130×130×10	130 × 130 × 10	10	19.70
ISA 130×130×12	130 × 130 × 12	12	23.40
ISA 130×130×15	130 × 130 × 15	15	28.90
ISA 150×150×10	150 × 150 × 10	10	22.80
ISA 150×150×12	150 × 150 × 12	12	27.20
ISA 150×150×15	150 × 150 × 15	15	33.72
ISA 150×150×18	150 × 150 × 18	18	40.01
ISA 180×180×15	180 × 180 × 15	15	41.09
ISA 180×180×18	180 × 180 × 18	18	48.79
ISA 180×180×20	180 × 180 × 20	20	53.85
ISA 200×200×24	200 × 200 × 24	24	71.31

The IS 808:2021 table identifies these as Indian Standard Equal Leg Angles and provides mass in kg/m together with dimensional and sectional-property data.

IS Unequal Angles – ISA Size & Weight Chart

Section	Size (A × B × t) mm	Thickness (mm)	Weight (kg/m)
ISA 30×20×3	30 × 20 × 3	3	1.14
ISA 30×20×4	30 × 20 × 4	4	1.48
ISA 30×20×5	30 × 20 × 5	5	1.80
ISA 40×25×3	40 × 25 × 3	3	1.50
ISA 40×25×4	40 × 25 × 4	4	1.96
ISA 40×25×5	40 × 25 × 5	5	2.40
ISA 40×25×6	40 × 25 × 6	6	2.82
ISA 45×30×3	45 × 30 × 3	3	1.74
ISA 45×30×4	45 × 30 × 4	4	2.27
ISA 45×30×5	45 × 30 × 5	5	2.79
ISA 45×30×6	45 × 30 × 6	6	3.29
ISA 50×30×3	50 × 30 × 3	3	1.88
ISA 50×30×4	50 × 30 × 4	4	2.49
ISA 50×30×5	50 × 30 × 5	5	3.05
ISA 50×30×6	50 × 30 × 6	6	3.59
ISA 60×40×5	60 × 40 × 5	5	3.79
ISA 60×40×6	60 × 40 × 6	6	4.49
ISA 60×40×8	60 × 40 × 8	8	5.72
ISA 60×40×10	60 × 40 × 10	10	7.44
ISA 65×45×5	65 × 45 × 5	5	4.14
ISA 65×45×6	65 × 45 × 6	6	4.96
ISA 65×45×8	65 × 45 × 8	8	6.63
ISA 65×45×10	65 × 45 × 10	10	8.24
ISA 70×45×5	70 × 45 × 5	5	4.78
ISA 70×45×6	70 × 45 × 6	6	5.68
ISA 70×45×8	70 × 45 × 8	8	7.42
ISA 70×45×10	70 × 45 × 10	10	9.10
ISA 75×50×5	75 × 50 × 5	5	4.99
ISA 75×50×6	75 × 50 × 6	6	5.92
ISA 75×50×8	75 × 50 × 8	8	7.74
ISA 75×50×10	75 × 50 × 10	10	9.50
ISA 80×50×5	80 × 50 × 5	5	5.33
ISA 80×50×6	80 × 50 × 6	6	6.32
ISA 80×50×8	80 × 50 × 8	8	8.31
ISA 80×50×10	80 × 50 × 10	10	10.25
ISA 90×60×6	90 × 60 × 6	6	6.88
ISA 90×60×8	90 × 60 × 8	8	9.10
ISA 90×60×10	90 × 60 × 10	10	11.25
ISA 90×60×12	90 × 60 × 12	12	13.09
ISA 100×65×7	100 × 65 × 7	7	8.76
ISA 100×65×8	100 × 65 × 8	8	9.87
ISA 100×65×10	100 × 65 × 10	10	12.10
ISA 100×75×8	100 × 75 × 8	8	10.70
ISA 100×75×10	100 × 75 × 10	10	13.20
ISA 100×75×12	100 × 75 × 12	12	15.60
ISA 120×80×8	120 × 80 × 8	8	12.10
ISA 120×80×10	120 × 80 × 10	10	14.90
ISA 120×80×12	120 × 80 × 12	12	17.70
ISA 125×75×8	125 × 75 × 8	8	12.10
ISA 125×75×10	125 × 75 × 10	10	14.90
ISA 125×75×12	125 × 75 × 12	12	17.60
ISA 150×100×10	150 × 100 × 10	10	18.80
ISA 150×100×12	150 × 100 × 12	12	22.40
ISA 150×115×10	150 × 115 × 10	10	20.00
ISA 200×100×10	200 × 100 × 10	10	22.80
ISA 200×100×12	200 × 100 × 12	12	27.10
ISA 200×150×12	200 × 150 × 12	12	31.90
ISA 200×150×15	200 × 150 × 15	15	39.40
ISA 200×150×18	200 × 150 × 18	18	47.10

The unequal-angle series is identified in IS 808:2021 Table 11; the standard records the longer leg, shorter leg, thickness, mass and sectional properties.

Grades Available

Indian Structural Angles can be supplied in different structural steel grades according to the applicable Indian Standard and project requirements. The selected grade depends on the required mechanical properties, structural application, fabrication requirements and design specifications.

At Moksh Tubes & Fittings LLP, structural angles can be sourced according to the customer's specified grade, dimensions, thickness, length and applicable standard, subject to product availability.

Structural Steel Grades

Grade / Specification	Material Type	Typical Requirement
IS 2062	Structural Steel	General structural and engineering applications
E250	Structural Steel	General fabrication and structural applications
E350	Structural Steel	Applications requiring higher strength
Other Grades	Structural Steel	Available as per project specification and requirement

Applications

Indian Structural Angles are widely used in construction, structural fabrication, infrastructure and engineering applications where reliable steel sections are required for support, framing, bracing, reinforcement and connections.

Commercial Buildings

Used in structural frameworks, supports, and load-bearing applications for offices, malls, and commercial complexes.

Industrial Structures

Indian Structural Angles are suitable for various industrial fabrication and structural requirements, including industrial sheds, equipment support structures, platforms, walkways, steel frames and support assemblies.

Towers & Transmission Structures

Angle sections are widely used in fabricated tower structures where L-shaped structural members are required. Applications include communication towers, transmission structures, lattice towers, tower supports and structural frameworks.

Infrastructure Projects

Structural angles can be used in infrastructure and civil engineering projects for supporting structures, steel frameworks, platforms, bridges and associated structures, and fabricated infrastructure components.

Engineering & Fabrication

Indian Structural Angles are suitable for general engineering and fabrication requirements, including machine supports, brackets, frames, structural connections, fabricated assemblies and reinforcement structures.

Trusses & Bracing Systems

Equal and unequal angles can be used for structural trusses, bracing and supporting members, depending on the engineering design and required section properties.

Equipment & Platform Supports

Structural angles can be fabricated into supports for industrial equipment, platforms, access structures and other steel assemblies where the specified section meets the design requirements.

General Structural Applications

Indian Structural Angles are also used for a variety of general structural applications where an L-shaped steel section is required for support, connection, framing or reinforcement.

General Structural Applications

Indian Structural Angles are also used for a variety of general structural applications where an L-shaped steel section is required for support, connection, framing or reinforcement.

The appropriate angle size, thickness and grade should always be selected according to the engineering design, loading conditions, applicable standard and project specification.

Uses of Indian Structural Angles

Indian Structural Angles are versatile steel sections used for supporting, framing, bracing, reinforcement and fabrication across construction, industrial and engineering projects.

Used for steel structural frameworks in buildings and industrial structures.

Suitable for roof trusses and bracing systems where L-shaped structural members are required.

Used for fabricated supports, brackets and frames in construction and engineering applications.

Suitable for towers and lattice structures, including communication and other supporting frameworks.

Used in industrial platforms, walkways and access structures.

Suitable for equipment and machinery support structures in industrial facilities.

Used for general fabrication and engineering assemblies requiring equal or unequal angle sections.

Suitable for infrastructure and civil engineering projects where structural steel angles are specified.

Used for reinforcement and structural connections according to project design requirements.

The required angle size, thickness, grade and length should be selected according to the engineering design, structural loading, applicable Indian Standard and project specifications.

Advantages of Indian Structural Angles

Indian Structural Angles offer a practical and versatile solution for a wide range of structural, construction, fabrication and engineering applications. Their L-shaped profile and availability in equal and unequal configurations make them suitable for different structural requirements.

High Structural Strength

Suitable for structural support, framing, bracing and fabricated assemblies when selected according to the required design and specification.

Equal & Unequal Profiles

Available in equal and unequal configurations to meet different structural and connection requirements.

Versatile Applications

Suitable for construction, industrial structures, towers, trusses, platforms, supports and general engineering applications.

Easy Fabrication

Can be processed through common fabrication operations such as cutting, drilling, welding and assembly, subject to the applicable material specification.

Wide Size Availability

Structural angles can be selected in different leg dimensions and thicknesses according to the applicable standard and project requirements.

Suitable for Structural Frameworks

Can be used for frames, bracing members, trusses and supporting structures.

Flexible Design Options

Equal angles provide symmetrical sections, while unequal angles offer flexibility where different leg dimensions are required.

Project-Based Supply

Can be specified according to required grade, dimensions, thickness, length and quantity.

Suitable for Industrial & Infrastructure Projects

Commonly considered for industrial fabrication, infrastructure structures, towers and engineering projects.

Mechanical Properties – Indian Structural Angles

(Typical minimum values as per IS 2062; actual values vary with grade, quality/sub-grade and material thickness.)

Standard / Grade	IS 2062 E250	IS 2062 E275	IS 2062 E350	IS 2062 E410
Tensile Strength (MPa), Min.	410	430	490	540
Yield Strength (MPa), ≤20 mm	250	275	350	410
Elongation (%), Min.	23	22	22	20

The underlying IS 2062 values show that yield strength is thickness-dependent—for example, E250 is 250 MPa up to 20 mm, 240 MPa for 20–40 mm and 230 MPa above 40 mm

Why Choose Moksh Tubes & Fittings LLP?

Moksh Tubes & Fittings LLP supports customers looking for Indian Structural Angles for construction, fabrication, infrastructure and industrial requirements. Our approach is focused on supplying structural steel products according to the customer's required dimensions, grades, lengths, quantities and project specifications.

FAQ – Indian Structural Angles

What are Indian Structural Angles?

Indian Structural Angles are L-shaped structural steel sections used for construction, structural fabrication, infrastructure, industrial frameworks, supports, trusses, towers and general engineering applications.

What types of Indian Structural Angles are available?

Indian Structural Angles are primarily available in Equal Angles and Unequal Angles. Equal angles have two legs of the same width, while unequal angles have different leg widths.

What are Equal Structural Angles used for?

Equal Structural Angles are commonly used for structural frameworks, bracing, trusses, supports, brackets, towers and general fabrication applications.

What are Unequal Structural Angles used for?

Unequal Structural Angles are used where different leg dimensions are required for structural connections, supports, fabrication or specific engineering requirements.

Which standards are applicable to Indian Structural Angles?

Structural angles can be supplied according to the applicable Indian Standard or project specification. The required standard should be confirmed based on the product, grade and application.

Request a Quote

Looking for Indian Structural Angles for your construction, fabrication, infrastructure or industrial project?

Contact Moksh Tubes & Fittings LLP for structural angle requirements based on your required angle type, dimensions, thickness, grade, length and quantity.
Share your project specifications, drawings or material requirements with our team to discuss the suitable Indian Structural Angles for your application.

Contact Us Now

📞 Contact Moksh Tubes & Fittings LLP at +91 97695 84950 for product availability, technical specifications and quotation enquiries.
