Indian Structural Columns

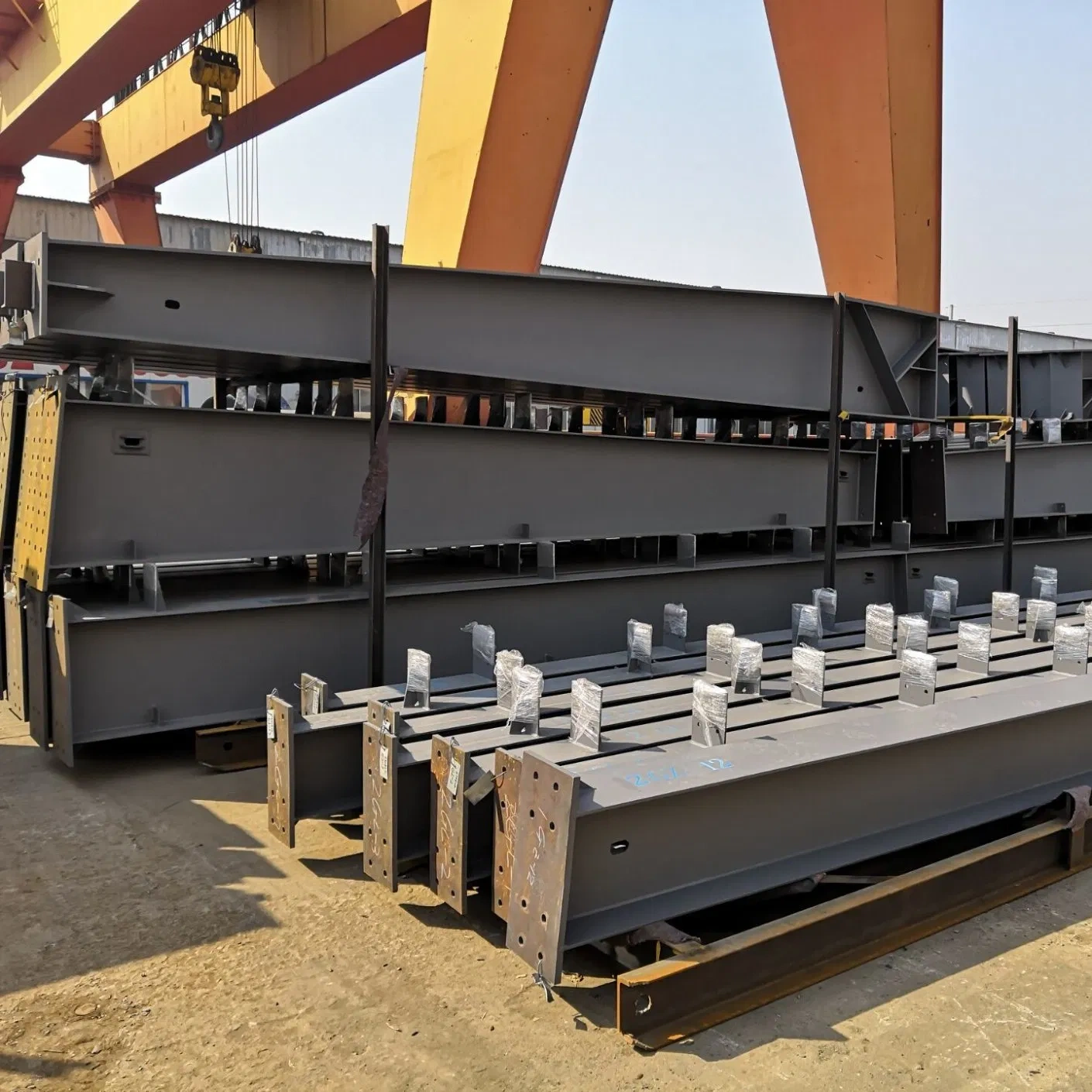

Indian Structural Columns are vertical structural members designed to transfer loads from upper portions of a structure to its foundation or supporting members. They are an important part of structural steel frameworks used in buildings, industrial facilities, warehouses, infrastructure and engineering structures.
Structural columns are selected according to factors such as load-bearing requirements, column height, section properties, dimensions, material grade, connection design and applicable project specifications. The appropriate section helps provide the required strength and stability within the overall structural system.
Depending on the structural design, different steel column sections can be incorporated into building frames, industrial structures, equipment-support systems and other fabricated assemblies. Structural columns can also be used together with beams, channels, angles and hollow sections to create complete steel frameworks.
At Moksh Tubes & Fittings LLP, we support requirements for Indian Structural Columns based on customer and project specifications. Customers can provide the required column section, dimensions, material grade, length, quantity and applicable Indian Standard for procurement enquiries.
Indian Structural Columns are suitable for both standard and project-based requirements across construction, industrial, infrastructure and engineering applications, subject to the specified product and design requirements.
Download Indian Structural Columns Datasheet
Get the complete Indian Structural Columns datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Specifications
Indian Structural Columns are available in different section sizes, depths, flange dimensions, thicknesses, lengths and structural steel grades according to applicable Indian Standards and project requirements. The appropriate column section is selected based on the required load-bearing capacity, structural design, column height, connection requirements and intended application.
| Category | Details |
|---|---|
| Product | Indian Structural Columns |
| Profile | I-Section / H-Section / Structural Column Sections |
| Material | Structural Steel / Carbon Steel |
| Types | Structural Column Sections as per applicable IS specifications |
| Standards | Applicable Indian Standards / Project Specifications |
| Grades | As per applicable material specification |
| Section Depth | Various standard sizes |
| Flange Width | As per selected column section |
| Web Thickness | As per selected section |
| Flange Thickness | As per selected section |
| Length | Standard Lengths / Cut-to-Length |
| Surface | Mill Finish / As Specified |
| Supply Form | Individual Sections / Bundles |
| Customization | Size, thickness, length and grade as required |
| Applications | Buildings, Industrial Structures, Warehouses, Infrastructure & Engineering |
Size & Weight Chart
Indian Structural Columns are available in different section depths, flange widths, web thicknesses, flange thicknesses and unit weights. The appropriate column section is selected according to structural design, loading conditions, column height and applicable Indian Standard.
SC Structural Columns Size & Weight Chart
| Section | Size (mm) | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|
| SC 100 | 100 × 100 | 6.0 | 10.0 | 19.97 |
| SC 120 | 120 × 120 | 6.5 | 11.0 | 26.22 |
| SC 140 | 140 × 140 | 7.0 | 12.0 | 33.25 |
| SC 150* | 152 × 152 | 7.9 | 11.9 | 36.93 |
| SC 160 | 160 × 160 | 8.0 | 13.0 | 41.85 |
| SC 180 | 180 × 180 | 8.5 | 14.0 | 50.48 |
| SC 200 | 200 × 200 | 9.0 | 15.0 | 60.24 |
| SC 220 | 220 × 220 | 9.5 | 16.0 | 70.41 |
| SC 250 | 250 × 250 | 10.0 | 17.0 | 85.54 |
HB Heavy Weight Beam & Column Size & Weight Chart
| Section | Size (mm) | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|
| HB 150 | 150 × 150 | 5.4 | 9.0 | 27.06 |
| HB 150* | 150 × 150 | 8.4 | 9.0 | 30.15 |
| HB 150* | 150 × 150 | 11.8 | 9.0 | 33.66 |
| HB 200 | 200 × 200 | 6.1 | 9.0 | 37.31 |
| HB 200* | 200 × 200 | 7.8 | 9.0 | 39.73 |
| HB 225 | 225 × 225 | 6.5 | 9.1 | 43.12 |
| HB 225* | 225 × 225 | 8.6 | 9.1 | 46.52 |
| HB 250 | 250 × 250 | 6.9 | 9.7 | 50.98 |
| HB 250* | 250 × 250 | 8.8 | 9.7 | 54.41 |
| HB 300 | 300 × 250 | 7.6 | 10.6 | 58.74 |
| HB 300* | 300 × 250 | 9.4 | 10.6 | 62.67 |
| HB 350 | 350 × 250 | 8.3 | 11.6 | 67.42 |
| HB 350* | 350 × 250 | 10.1 | 11.6 | 72.03 |
| HB 400 | 400 × 250 | 9.1 | 12.7 | 77.43 |
| HB 400* | 400 × 250 | 10.6 | 12.7 | 81.83 |
| HB 450 | 450 × 250 | 9.8 | 13.7 | 87.22 |
| HB 450* | 450 × 250 | 11.3 | 13.7 | 92.19 |
Grades Available
Indian Structural Columns can be supplied in different structural steel grades according to the applicable Indian Standard and project requirements. The selected grade depends on the required mechanical properties, structural loading, column design, fabrication requirements and intended application.
At Moksh Tubes & Fittings LLP, Structural Columns can be sourced according to the customer's specified grade, section, dimensions, length, quantity and applicable standard, subject to product availability.
Structural Steel Grades
| Grade / Specification | Material Type | Typical Requirement |
|---|---|---|
| IS 2062 | Structural Steel | General structural and engineering applications |
| E250 | Structural Steel | General structural and fabrication applications |
| E350 | Structural Steel | Applications requiring higher specified strength |
| Other Grades | Structural Steel | As per project specification and requirement |
Applications
Indian Structural Columns are widely used in construction, industrial structures, infrastructure, fabrication and engineering projects where vertical load-bearing and structural support are required.
Building & Construction
Structural columns are important load-bearing members in building structures and steel frameworks. Common applications include building structural frameworks, commercial and industrial buildings, steel-framed structures, supporting members, and structural connections and assemblies.
Industrial Structures
Indian Structural Columns are used in industrial facilities where strong vertical structural members are required. Applications include industrial sheds, factory structures, warehouses, equipment support structures, and heavy-duty structural frameworks.
Warehouses & Storage Structures
Structural columns can be used as vertical supporting members in warehouse and storage facilities. Applications include warehouse frameworks, storage structures, roof-support systems, and steel building structures.
Infrastructure Projects
Structural columns can be incorporated into infrastructure and civil engineering projects where the specified column section meets the design requirements. Applications include infrastructure frameworks, elevated structures, supporting structures, platforms, and engineering structures.
Heavy Structural Fabrication
Structural columns are suitable for fabrication of heavy steel frameworks and assemblies. Applications include structural frames, support structures, heavy fabricated assemblies, industrial platforms, and steel frameworks.
Machinery & Equipment Supports
Structural columns can be used as part of supporting frameworks for industrial machinery and equipment where the selected section meets the required structural design.
Engineering Structures
Indian Structural Columns are used in various engineering applications requiring vertical steel support members with specified structural properties.
Steel Building Frameworks
Structural columns can be combined with beams, channels, angles and hollow sections to create complete steel building and industrial frameworks.
Steel Building Frameworks
Structural columns can be combined with beams, channels, angles and hollow sections to create complete steel building and industrial frameworks.
The appropriate column section, dimensions and grade should always be selected according to the structural loading, column height, stability requirements, applicable Indian Standard and project specifications.
Uses of Indian Structural Columns
Indian Structural Columns are widely used as vertical load-bearing and supporting members in construction, industrial, infrastructure and engineering applications.
Used for main vertical support in steel building frameworks.
Suitable for industrial sheds and factory structures requiring structural column sections.
Used in warehouses and storage facilities as part of the main structural framework.
Suitable for commercial and industrial buildings where steel columns are specified.
Used for heavy-duty structural frameworks and fabricated steel structures.
Suitable for machinery and equipment support structures in industrial facilities.
Used in platforms, elevated structures and supporting frameworks according to engineering design.
Suitable for infrastructure and civil engineering projects requiring structural steel columns.
Used with structural beams, channels, angles and hollow sections to create complete steel frameworks.
The appropriate column section, dimensions, grade and length should be selected according to the structural loading, column height, stability requirements, applicable Indian Standard and project specifications.
Advantages of Indian Structural Columns
Indian Structural Columns provide a reliable solution for vertical load-bearing, structural support and steel framework applications across construction, industrial, infrastructure and engineering projects.
High Load-Bearing Capability
Suitable for vertical structural support when the appropriate section is selected according to the engineering design.
Structural Strength & Rigidity
Properly selected column sections provide the required strength and rigidity for structural frameworks.
Suitable for Heavy Structures
Appropriate sections can be selected for industrial buildings, warehouses and other heavy structural applications.
Wide Application Range
Suitable for buildings, industrial structures, warehouses, infrastructure, platforms and engineering projects.
Different Section Options
I-shaped, H-shaped and other applicable structural column sections can be selected according to project requirements.
Design Flexibility
Different section depths, flange widths and thicknesses allow engineers to select a suitable column section for the structural design.
Easy Integration
Can be combined with beams, channels, angles and hollow sections to form complete steel frameworks.
Fabrication Friendly
Suitable for common fabrication operations such as cutting, drilling, welding and assembly, subject to applicable specifications.
Multiple Grade Options
Structural steel grades can be selected according to required mechanical properties and project specifications.
The appropriate column section should always be selected according to the structural loading, column height, stability requirements, section properties, applicable Indian Standard and project specifications.
Mechanical Properties – Indian Structural Columns
(Typical minimum values as per IS 2062:2011; values vary with material thickness and quality/sub-grade.)
| Standard / Grade | IS 2062 E250 | IS 2062 E350 | IS 2062 E410 | IS 2062 E450 |
|---|---|---|---|---|
| Yield Strength (MPa), ≤20 mm | 250 | 350 | 410 | 450 |
| Yield Strength (MPa), 20–40 mm | 240 | 330 | 390 | 430 |
| Yield Strength (MPa), >40 mm | 230 | 320 | 380 | 420 |
| Tensile Strength (MPa), Min. | 410 | 490 | 540 | 570 |
| Elongation (%), Min. | 23 | 22 | 20 | 20 |
Why Choose Moksh Tubes & Fittings LLP?
Moksh Tubes & Fittings LLP supports customers looking for Indian Structural Columns for construction, industrial, infrastructure, fabrication and engineering requirements. Our supply approach is based on the customer's required column section, dimensions, grade, length, quantity and applicable specifications.
FAQ – Indian Structural Columns
What are Indian Structural Columns?
Indian Structural Columns are structural steel sections primarily used as vertical load-bearing and supporting members in buildings, industrial structures, warehouses, infrastructure and engineering projects.
What are Structural Columns used for?
Structural Columns are commonly used in steel building frameworks, industrial sheds, warehouses, supporting structures, platforms, infrastructure projects and heavy fabrication.
What types of Structural Columns are available?
Structural Columns can include different I-shaped, H-shaped and other applicable structural column sections, depending on the Indian Standard and project requirements.
Which standards are applicable to Indian Structural Columns?
Structural Columns can be supplied according to the applicable Indian Standard or project specification. The exact standard should be confirmed according to the required section and application.
Which grades are available for Indian Structural Columns?
Grades such as IS 2062, E250 and E350 may be considered according to the applicable specification and product availability. Exact grade availability should be confirmed at the time of enquiry.
Request a Quote
Looking for Indian Structural Columns for your construction, industrial, infrastructure or fabrication project?
Contact Moksh Tubes & Fittings LLP for Structural Column requirements based on your required column section, dimensions, grade, length and quantity.
Share your project specifications, drawings or material requirements with our team to discuss the suitable Indian Structural Columns for your application.
