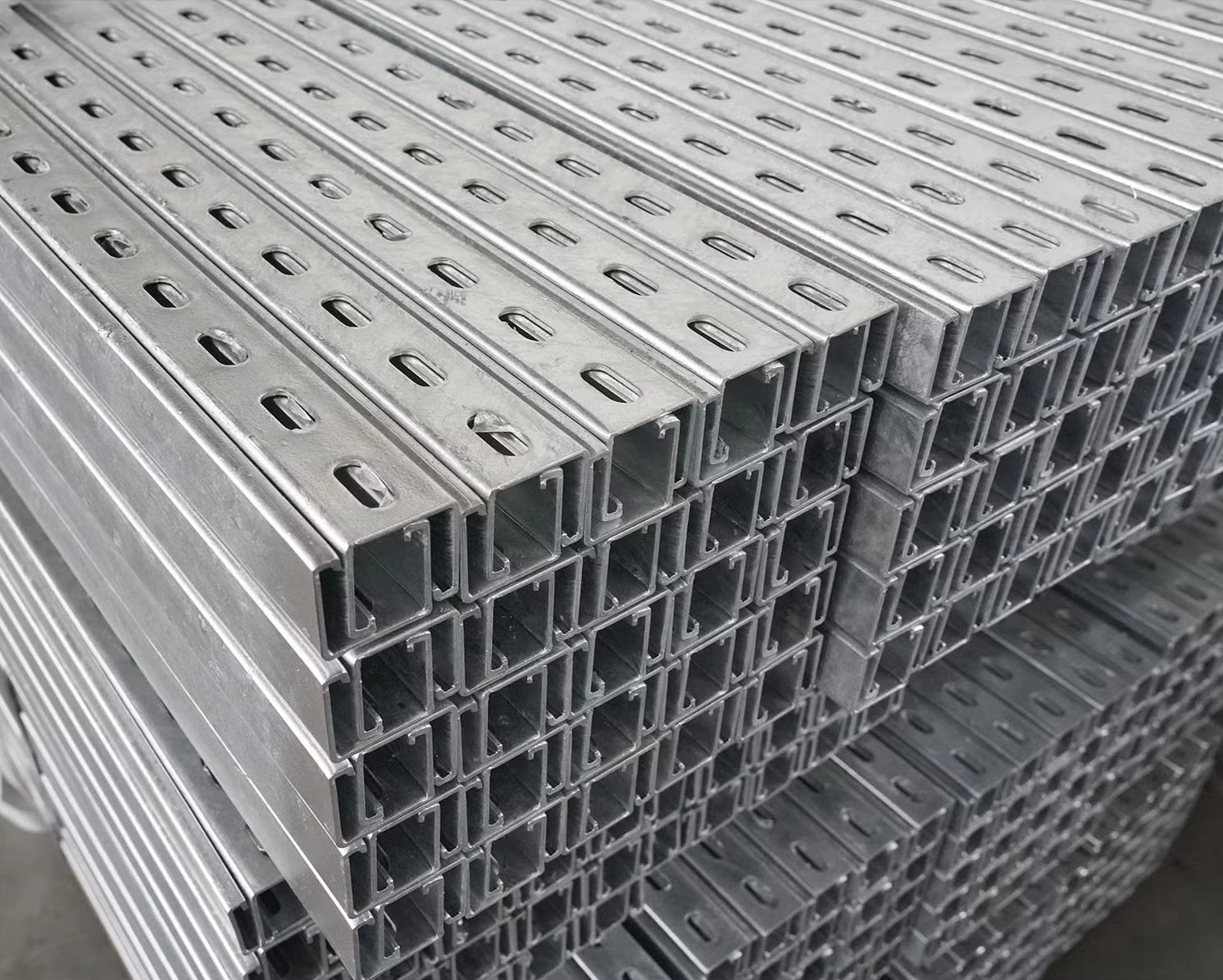

European Structural Channels
European Structural Channels are open-profile structural steel sections commonly used as supporting and framing members in buildings, industrial facilities, infrastructure and engineering structures.
Their channel-shaped geometry provides a practical solution for structural framing, supports, bracing, platforms, frames and fabricated assemblies. Different channel profiles can be selected according to the required section properties, dimensions, loading conditions and engineering design.
European channel sections may include profiles such as UPN, UPE and other applicable European channel sections, depending on the project specification and required standard.
European Structural Channels are specified according to applicable EN standards, with the material grade selected according to the required mechanical properties and project requirements. Common structural steel grades may include S235JR, S275JR, S355JR and S355J2, subject to the applicable specification.
At Moksh Tubes & Fittings LLP, we support requirements for European Structural Channels based on customer drawings, technical specifications and project requirements. Customers can specify the required channel designation, dimensions, material grade, length, quantity and applicable EN specification.
European Structural Channels can also be used together with European Structural Angles, Beams, Columns and Hollow Sections to create complete steel frameworks and fabricated structural assemblies.
For an accurate quotation, customers can provide their required channel profile, designation, dimensions, thickness, grade, length and quantity, along with project drawings or technical documentation where required.
Download European Structural Channels Datasheet
Get the complete European Structural Channels datasheet with chemical composition, mechanical properties, heat treatment details, and applications. Enter your email to receive the PDF instantly.
We respect your privacy. Your email will only be used to send the datasheet.
Specifications
European Structural Channels are available in different channel profiles, section depths, flange widths, web thicknesses, flange thicknesses, lengths and structural steel grades according to applicable European Standards (EN) and project specifications.
| Category | Details |
|---|---|
| Product | European Structural Channels |
| Profile | U-Shaped / Channel Structural Section |
| Common Types | UPN / UPE & Other Applicable EN Sections |
| Material | Structural Steel / Carbon Steel |
| Standards | Applicable European Standards (EN) |
| Grades | S235JR / S275JR / S355JR / S355J2 & Other Applicable Grades |
| Section Depth | Various Standard Sizes |
| Flange Width | As per Selected Channel Section |
| Web Thickness | As per Selected Section |
| Flange Thickness | As per Selected Section |
| Length | Standard Lengths / Cut-to-Length |
| Surface | Mill Finish / As Specified |
| Supply Form | Individual Sections / Bundles |
| Customization | Size, Grade, Length & Quantity as Required |
| Applications | Construction, Fabrication, Infrastructure, Industrial & Engineering |
UPN Channels
UPN channels are European standard U-shaped structural sections with tapered flanges. They are used for structural framing, supports, bracing, platforms and fabricated assemblies according to project requirements.
UPE Channels
UPE channels have parallel flanges and can provide flexibility for structural and fabrication applications where a parallel-flange channel section is specified.
EN Standards
European Structural Channels should be specified according to the applicable EN standard and project specification. The relevant standard depends on the channel profile, dimensions, material grade and intended application.
Length Availability
Structural channels can be considered in standard lengths or cut-to-length requirements, depending on product availability and customer specifications.
Channel Section Dimensions
European Structural Channels are generally identified by their designation and section dimensions, including:
- Section Depth
- Flange Width
- Web Thickness
- Flange Thickness
- Cross-Sectional Area
- Section Weight
- Required Length
Supply Requirements
For an accurate quotation, customers should provide:
- Channel Type / Designation
- Section Depth & Flange Width
- Web & Flange Thickness
- Material Grade
- Required Length
- Quantity
- Applicable EN Standard
- Project Specification, if applicable
Moksh Tubes & Fittings LLP can support standard and project-based requirements for European Structural Channels, subject to product availability and agreed specifications.
Size & Weight Chart
UPN – European Standard U Channels
| Section | Height h (mm) | Flange Width b (mm) | Web Thickness tw (mm) | Flange Thickness tf (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| UPN 50 | 50 | 38 | 5.0 | 7.0 | 5.59 |
| UPN 65 | 65 | 42 | 5.5 | 7.5 | 7.09 |
| UPN 80 | 80 | 45 | 6.0 | 8.0 | 8.64 |
| UPN 100 | 100 | 50 | 6.0 | 8.5 | 10.60 |
| UPN 120 | 120 | 55 | 7.0 | 9.0 | 13.40 |
| UPN 140 | 140 | 60 | 7.0 | 10.0 | 16.00 |
| UPN 160 | 160 | 65 | 7.5 | 10.5 | 18.80 |
| UPN 180 | 180 | 70 | 8.0 | 11.0 | 22.00 |
| UPN 200 | 200 | 75 | 8.5 | 11.5 | 25.30 |
| UPN 220 | 220 | 80 | 9.0 | 12.5 | 29.40 |
| UPN 240 | 240 | 85 | 9.5 | 13.0 | 33.20 |
| UPN 260 | 260 | 90 | 10.0 | 14.0 | 37.90 |
| UPN 280 | 280 | 95 | 10.0 | 15.0 | 41.80 |
| UPN 300 | 300 | 100 | 10.0 | 16.0 | 46.20 |
| UPN 320 | 320 | 100 | 14.0 | 17.5 | 59.50 |
| UPN 350 | 350 | 100 | 14.0 | 16.0 | 60.60 |
| UPN 380 | 380 | 102 | 13.5 | 16.0 | 63.00 |
| UPN 400 | 400 | 110 | 14.0 | 18.0 | 71.80 |
UPE – European Parallel Flange Channels
| Section | Height h (mm) | Flange Width b (mm) | Web Thickness tw (mm) | Flange Thickness tf (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| UPE 80 | 80 | 40 | 4.0 | 6.0 | 7.05 |
| UPE 100 | 100 | 46 | 4.0 | 6.0 | 8.59 |
| UPE 120 | 120 | 52 | 4.5 | 6.5 | 10.40 |
| UPE 140 | 140 | 55 | 4.5 | 6.5 | 12.90 |
| UPE 160 | 160 | 64 | 5.0 | 7.5 | 15.80 |
| UPE 180 | 180 | 70 | 5.0 | 8.0 | 18.80 |
| UPE 200 | 200 | 75 | 5.5 | 8.5 | 22.80 |
| UPE 220 | 220 | 80 | 6.0 | 9.0 | 26.60 |
| UPE 240 | 240 | 85 | 6.0 | 9.5 | 30.20 |
| UPE 270 | 270 | 95 | 6.5 | 10.0 | 35.80 |
| UPE 300 | 300 | 100 | 7.0 | 10.0 | 42.20 |
| UPE 330 | 330 | 105 | 7.5 | 11.0 | 49.10 |
| UPE 360 | 360 | 110 | 8.0 | 12.0 | 57.30 |
| UPE 400 | 400 | 115 | 8.6 | 13.5 | 66.30 |
UPA – European Light Channels
| Section | Height h (mm) | Flange Width b (mm) | Web Thickness tw (mm) | Flange Thickness tf (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| UPA 50 | 50 | 25 | 4.0 | 5.0 | 3.86 |
| UPA 65 | 65 | 30 | 4.0 | 5.5 | 5.06 |
| UPA 80 | 80 | 35 | 4.5 | 6.0 | 6.85 |
| UPA 100 | 100 | 40 | 5.0 | 6.5 | 8.90 |
| UPA 120 | 120 | 45 | 5.0 | 7.0 | 10.40 |
| UPA 140 | 140 | 50 | 5.5 | 7.5 | 12.90 |
| UPA 160 | 160 | 55 | 6.0 | 8.0 | 15.30 |
| UPA 180 | 180 | 60 | 6.0 | 8.5 | 18.00 |
| UPA 200 | 200 | 65 | 6.5 | 9.0 | 21.30 |
Grades Available
European Structural Channels can be supplied in different structural steel grades according to applicable European Standards (EN) and project specifications. The selected grade depends on the required mechanical properties, structural loading, channel dimensions, fabrication requirements and engineering design.
At Moksh Tubes & Fittings LLP, European Structural Channels can be sourced according to the customer's specified channel designation, grade, dimensions, thickness, length, quantity and applicable EN requirements, subject to product availability.
Common EN Structural Steel Grades
| Grade / Specification | Material Type | Typical Requirement |
|---|---|---|
| S235JR | Non-Alloy Structural Steel | General structural and fabrication applications |
| S275JR | Non-Alloy Structural Steel | Structural applications requiring higher strength |
| S355JR | Non-Alloy Structural Steel | Higher-strength structural applications |
| S355J2 | Non-Alloy Structural Steel | Structural applications requiring specified impact properties |
| Other EN Grades | Structural Steel | As per project specification and requirement |
S235JR
S235JR is a commonly specified European structural steel grade used for general construction, fabrication and engineering applications where the specified material properties meet the project requirements.
S275JR
S275JR is a structural steel grade with higher specified yield strength than S235-grade steel and can be considered for structural channel applications according to the applicable EN specification and project requirements.
S355JR
S355JR is a higher-strength structural steel grade used for structural applications where increased specified strength is required, subject to the applicable EN specification and engineering design.
S355J2
S355J2 is a structural steel grade with specified impact properties and can be considered for applications where the project specification requires the relevant mechanical and impact requirements.
Grade Selection
The appropriate grade for a European Structural Channel should be selected based on:
- Required mechanical properties
- Structural loading
- Channel section and dimensions
- Web and flange thickness
- Design requirements
- Fabrication requirements
- Welding requirements
- Applicable EN standard
- Project specification
- Required impact properties, where applicable
Customers should specify the required EN grade, channel designation, section dimensions, length and quantity when submitting an enquiry.
Material Documentation
Where required and agreed at the time of order, applicable material test certificates and supporting documentation can be provided according to the purchase order and project requirements.
Applications
European Structural Channels are widely used in construction, industrial structures, infrastructure, fabrication and engineering projects where channel-shaped structural steel sections are required for support, framing, bracing and fabricated assemblies.
Building & Construction
European Structural Channels are commonly used in building and construction projects for steel structural frameworks, roof-support systems, supporting members, bracing systems, structural connections, and fabricated building components.
Industrial Structures
Structural channels are suitable for industrial facilities where steel sections are required for structural and fabrication applications. Common applications include factory structures, industrial buildings, manufacturing facilities, equipment support structures, platforms, and steel frameworks.
Warehouses & Industrial Sheds
European Structural Channels can be incorporated into warehouse and industrial shed structures for structural framing, roof-support systems, supporting members, bracing systems, and fabricated steel frameworks.
Infrastructure Projects
European Structural Channels can be used in infrastructure and civil engineering projects where the specified EN section and material grade meet the project requirements. Applications include infrastructure frameworks, supporting structures, platforms, access structures, and fabricated steel components.
Steel Fabrication
Structural channels are suitable for various fabrication requirements, including frames, brackets, supports, base structures, structural assemblies, and fabricated components.
Machinery & Equipment Supports
European Structural Channels can be incorporated into support structures for industrial machinery and equipment where the selected channel section meets the required structural design.
Platforms & Walkways
Channel sections can be used in industrial platforms, walkways and access structures where the specified section provides the required structural properties.
General Engineering Applications
European Structural Channels are also used in engineering and fabrication projects requiring an open channel-shaped structural steel section for support, framing or structural assemblies.
The appropriate channel designation, dimensions, thickness and grade should always be selected according to the structural design, loading conditions, applicable EN standard and project specifications.
Uses of European Structural Channels
European Structural Channels are versatile channel-shaped steel sections used for structural support, framing, bracing, reinforcement and fabrication across construction, industrial, infrastructure and engineering applications.
Used for steel structural frameworks in commercial, industrial and construction projects.
Suitable for supporting members and framing systems where European structural channel sections are specified.
Used in industrial sheds and warehouses for structural and supporting frameworks.
Suitable for platforms, walkways and access structures in industrial and engineering facilities.
Used for machinery and equipment support structures according to engineering design requirements.
Suitable for fabricated frames, brackets, supports and base structures.
Used in infrastructure and civil engineering projects requiring EN-specified structural steel sections.
Suitable for general steel fabrication, including frames, supports, brackets and structural assemblies.
Used for structural connections and supporting members according to project requirements.
Available in profiles such as UPN and UPE, providing flexibility for different structural and fabrication requirements.
Can be combined with European Structural Angles, Beams, Columns and Hollow Sections to create complete steel frameworks.
Suitable for industrial and heavy structural applications where the selected channel section meets the required design and section-property requirements.
The appropriate channel designation, dimensions, thickness and grade should be selected according to the structural design, loading conditions, section properties, applicable EN standard and project specifications.
Advantages of European Structural Channels
European Structural Channels provide a versatile structural steel solution for construction, industrial structures, infrastructure, fabrication and engineering applications. Their open channel profile offers flexibility for different structural and supporting requirements.
Structural Strength
Suitable for structural support, framing and bracing applications when the appropriate section is selected according to engineering design.
UPN & UPE Options
Different European channel profiles, including UPN and UPE, provide flexibility for structural and fabrication requirements.
Wide Application Range
Suitable for buildings, industrial structures, warehouses, platforms, supports and general engineering applications.
EN Grade Options
Grades such as S235JR, S275JR, S355JR and S355J2 can be considered according to applicable EN specifications and project requirements.
Standard-Based Selection
Channel sections can be selected according to applicable EN standards, dimensions, thickness, material grade and engineering requirements.
Different Section Sizes
Available in different section depths, flange dimensions and thicknesses according to applicable European section standards and product range.
Design Flexibility
Different channel profiles allow engineers to select suitable sections according to structural configuration and application requirements.
Suitable for Structural Frameworks
Can be incorporated into frames, supports, bracing systems, platforms, industrial structures and fabricated assemblies.
Fabrication Friendly
Suitable for common fabrication operations such as cutting, drilling, welding and assembly, subject to applicable material and project specifications.
Project-Based Supply
Requirements can be specified according to channel designation, dimensions, grade, length and quantity.
Compatible with Other European Sections
Can be used with European Structural Angles, Beams, Columns and Hollow Sections to create complete steel frameworks.
Domestic & International Applications
Suitable for projects requiring structural steel channels specified to applicable EN requirements.
The appropriate channel designation and section should always be selected according to the structural design, loading conditions, section properties, applicable EN standard and project specifications.
Mechanical Properties – European Structural Channels
(Typical minimum values for common EN 10025-2 structural steel grades; values depend on material thickness.)
| Standard / Grade | S235JR | S275JR | S355JR | S355J2 |
|---|---|---|---|---|
| Tensile Strength (MPa), Min. | 360 | 410 | 470 | 470 |
| Yield Strength (MPa), ≤16 mm | 235 | 275 | 355 | 355 |
| Elongation (%), Min. | 26 | 23 | 22 | 22 |
The tensile-strength ranges for these grades are thickness-dependent; for example, S235JR is typically 360–510 MPa, S275JR 410–560 MPa, and S355JR/S355J2 470–630 MPa for common section thicknesses.
Why Choose Moksh Tubes & Fittings LLP?
Moksh Tubes & Fittings LLP supports customers looking for European Structural Channels for construction, industrial, infrastructure, fabrication and engineering requirements. Our supply approach is based on the customer's required channel designation, dimensions, thickness, grade, length, quantity and applicable EN specifications.
FAQ – European Structural Channels
What are European Structural Channels?
European Structural Channels are open, channel-shaped structural steel sections manufactured and specified according to applicable European Standards (EN). They are used in construction, industrial structures, infrastructure, fabrication and engineering applications.
What types of European Structural Channels are available?
Common European channel profiles include UPN and UPE channels, along with other applicable European structural channel sections.
What is the difference between UPN and UPE channels?
UPN and UPE are different European channel profiles. UPN channels generally have tapered flanges, while UPE channels have parallel flanges. The appropriate profile should be selected according to the structural design and project specification.
What are European Structural Channels used for?
They are commonly used for structural frameworks, supporting members, bracing, platforms, walkways, industrial structures and fabricated steel assemblies.
Which standards apply to European Structural Channels?
European Structural Channels can be specified according to applicable European Standards (EN) and the requirements stated in the project specification.
Which EN grades are available?
Grades such as S235JR, S275JR, S355JR and S355J2 may be considered according to the applicable EN specification and project requirements. Exact availability should be confirmed at the time of enquiry.
What sizes of European Structural Channels are available?
Channels are available in different section depths, flange widths, web thicknesses and flange thicknesses. Actual availability depends on the applicable EN section tables and Moksh Tubes & Fittings LLP's current product range.
Can European Structural Channels be supplied in custom lengths?
Yes. Standard and cut-to-length requirements can be considered depending on product availability and customer specifications.
How do I select the right European Structural Channel?
Selection should consider the channel designation, section dimensions, loading conditions, section properties, material grade, connection requirements and applicable EN standards.
Can Moksh Tubes & Fittings LLP supply European Structural Channels in bulk?
Yes. Moksh Tubes & Fittings LLP can support bulk and project-based requirements, subject to product availability and agreed specifications.
What information is required for a quotation?
Customers should provide the channel designation, section depth, flange width, web thickness, flange thickness, EN grade, required length and quantity. Project drawings or technical specifications can also be shared.
Can European Structural Channels be used with other European structural sections?
Yes. They can be used with European Structural Angles, Beams, Columns and Hollow Sections to create complete steel frameworks and fabricated assemblies.
Does Moksh Tubes & Fittings LLP support international enquiries?
Yes. International enquiries for European Structural Channels can be discussed based on the required EN specification, channel section, dimensions, quantity and delivery requirements.
Request a Quote
Looking for European Structural Channels for your construction, industrial, infrastructure or fabrication project?
Contact Moksh Tubes & Fittings LLP for European Structural Channel requirements based on your required channel designation, section dimensions, thickness, EN grade, length and quantity.
Share your project specifications, drawings or material requirements with our team to discuss the suitable European Structural Channels for your application.
📞 Contact Moksh Tubes & Fittings LLP at +91 97695 84950 for product availability, technical specifications and quotation enquiries.
